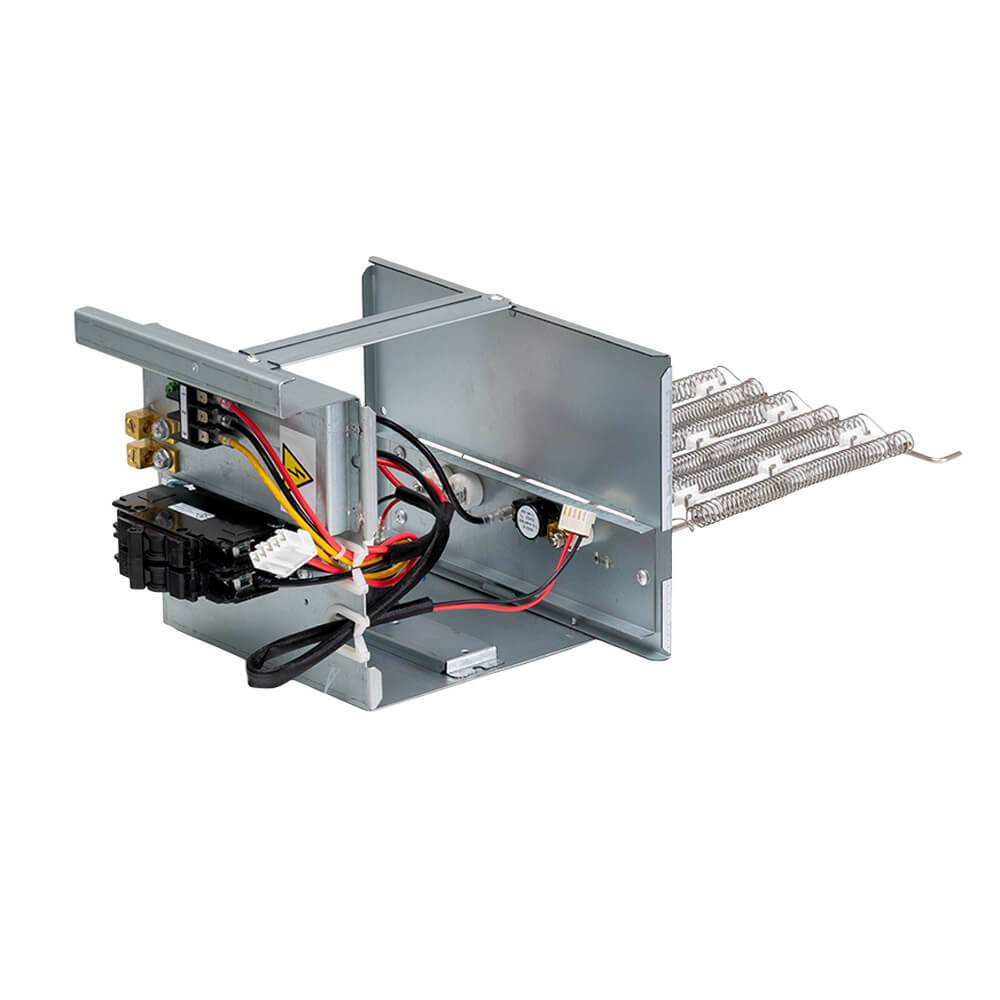

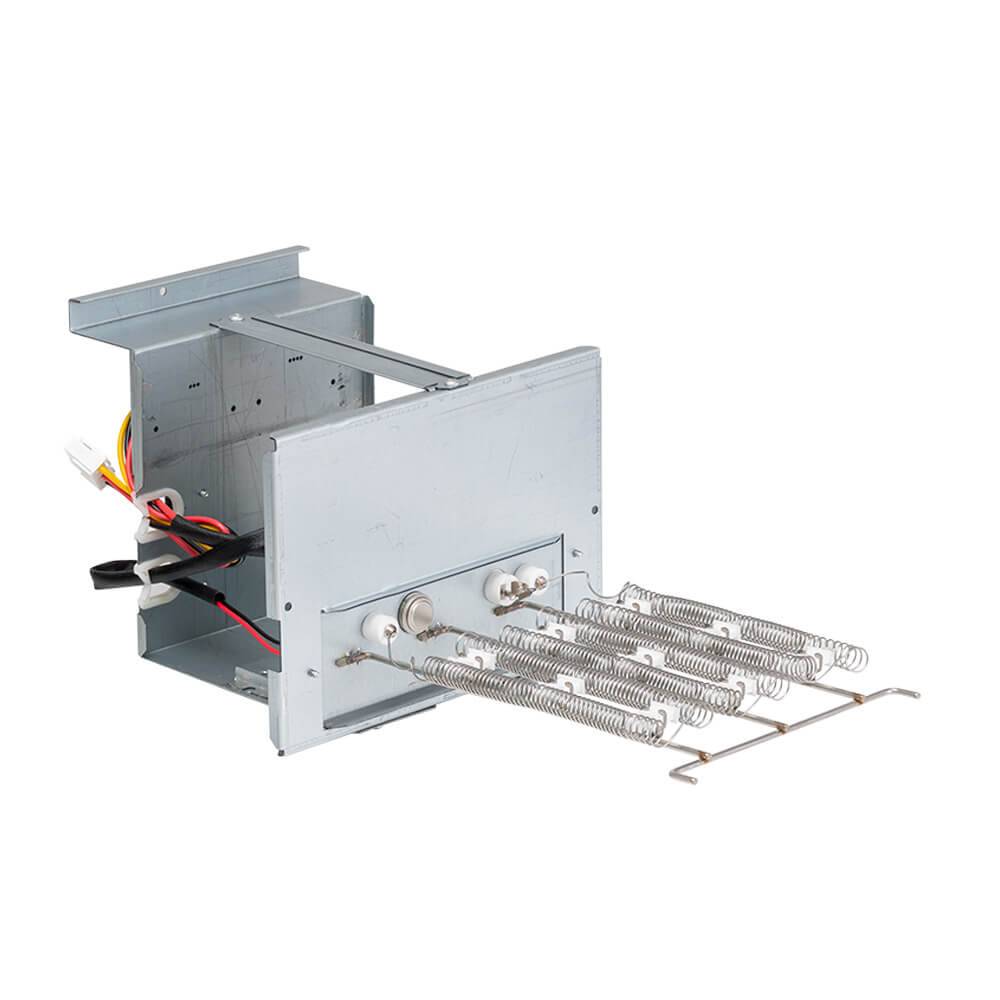

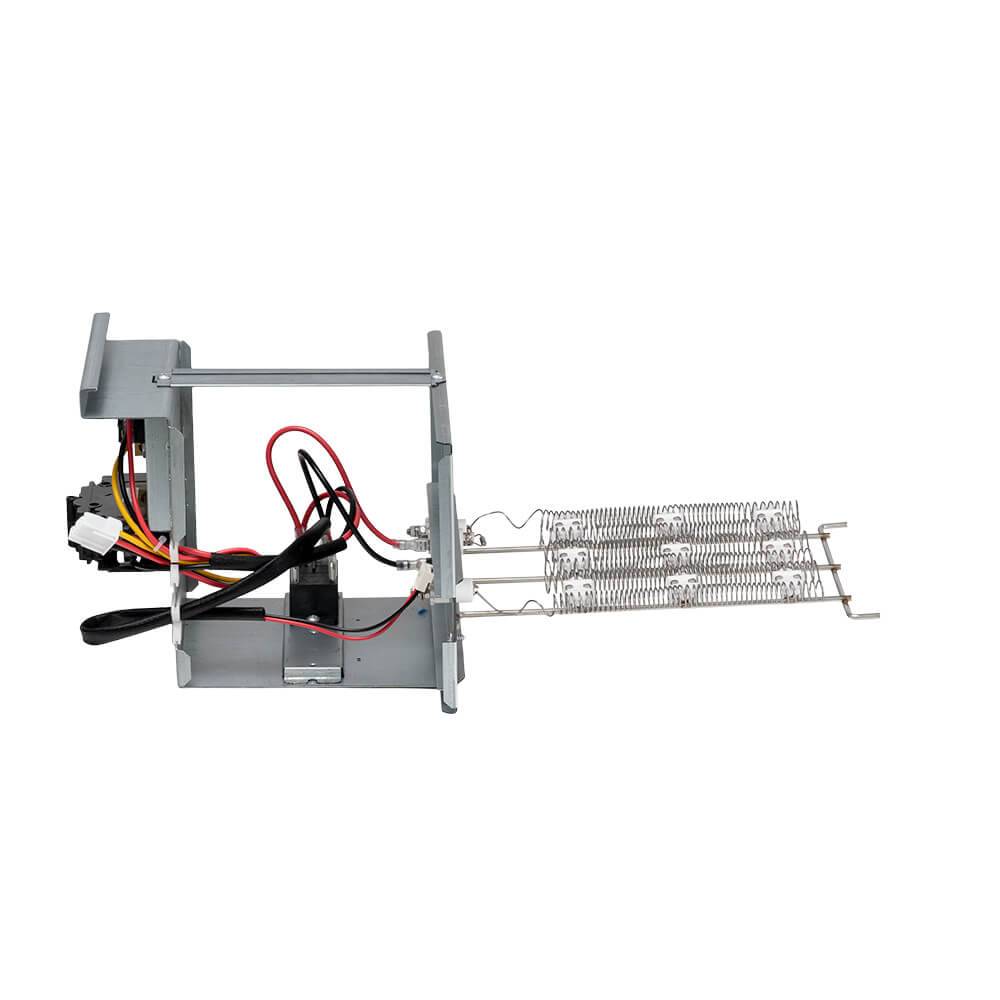

Aciq EAH-05C(UL) Electric Heater Coil 5 kW (16,200 BTU)

Product Description

The ACiQ EAH-05C(UL) is a UL-listed 5 kW electric heater coil that provides 16,200 BTU of supplemental heat for ACiQ unitary air handlers. It operates on 208/230/240 V single-phase electrical supply and is compatible with ACiQ-18-AHD, ACiQ-24-AHD, ACiQ-30-AHD, and ACiQ-36-AHD models. The compact coil is designed for inline installation to add straight electric heating to ducted heat pump systems.

• 5 kW electric heat providing 16,200 BTU output
• Electrical: 208/230/240 V, single phase (60 Hz where specified)
• UL-listed heater coil compatible with ACiQ-18-AHD, ACiQ-24-AHD, ACiQ-30-AHD, ACiQ-36-AHD; compact for inline installation

Product Highlights

UL-listed 5 kW electric heater coil for ACiQ unitary air handlers — 16,200 BTU output, 208–240 V single-phase operation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-05C(UL)

Technical Specifications

• Model: EAH-05C(UL)
• Brand: ACiQ
• Manufacturer Part Number: EAH-05C(UL)
• Heating Capacity: 16,200 BTU
• Power: 5 kW
• Input Voltage: 208/230/240 V
• Phase: Single
• Frequency: 60 Hz
• Dimensions (H x W x D): 8.03 in x 21.06 in x 10.16 in
• Compatible Units: ACiQ-18-AHD; ACiQ-24-AHD; ACiQ-30-AHD; ACiQ-36-AHD
• UL Listed: Yes
• Max Breaker Size: 25 / 30 A
• Min Breaker Size: 23 / 27 A
• Safety Information: Proposition 65 warning (may contain chemicals known to the State of California to cause cancer or reproductive harm)
