Aciq EAH-05-E-32 Essentials 5 kilowatt electric heat kit 5 kW (5 kW)

Product Description

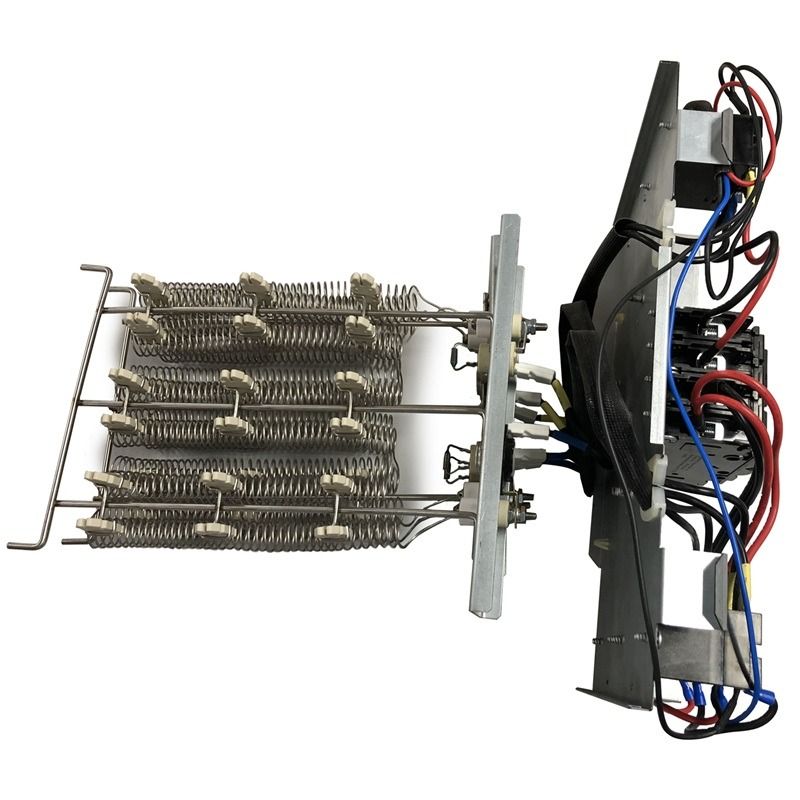

The ACiQ EAH-05-E-32 is a 5 kW electric heat kit designed for ACiQ Essentials unitary air handlers to provide supplemental straight electric heating for ducted heat pump systems. It delivers approximately 16,200 BTU and operates on 208/240V single-phase power at 60 Hz. The kit measures 9.84 in H x 13.78 in W x 11.81 in D and weighs 4.85 lb, and is compatible with multiple ACiQ air handler models.

• Power: 5 kW electric heating element; heating capacity approximately 16,200 BTU/hr.
• Electrical: 208/240 V input, single-phase, 60 Hz.
• Dimensions: 9.84 in H x 13.78 in W x 11.81 in D.
• Weight: 4.85 lb.
• Compatible with: ACIQ-18-AH-E-32; ACIQ-24-AH-E-32; ACIQ-30-AH-E-32; ACIQ-36-AH-E-32; ACIQ-48-AH-E-32; ACIQ-60-AH-E-32.

Product Highlights

5 kW supplemental electric heater for ACiQ Essentials unitary air handlers.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-05-E-32

Technical Specifications

• Model / SKU: EAH-05-E-32
• Brand: ACiQ
• Power: 5 kilowatts
• Heating Capacity: Approximately 16,200 BTU/hr
• Input Voltage: 208/240 V
• Phase: Single-phase
• Frequency: 60 Hz
• Dimensions: 9.84 in H x 13.78 in W x 11.81 in D
• Weight: 4.85 lb
• Compatible Air Handlers: ACIQ-18-AH-E-32; ACIQ-24-AH-E-32; ACIQ-30-AH-E-32; ACIQ-36-AH-E-32; ACIQ-48-AH-E-32; ACIQ-60-AH-E-32
• Application: Supplemental straight electric heating for ACiQ Essentials unitary ducted heat pump systems
• Safety Information: Proposition 65 warning: This product may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm.
