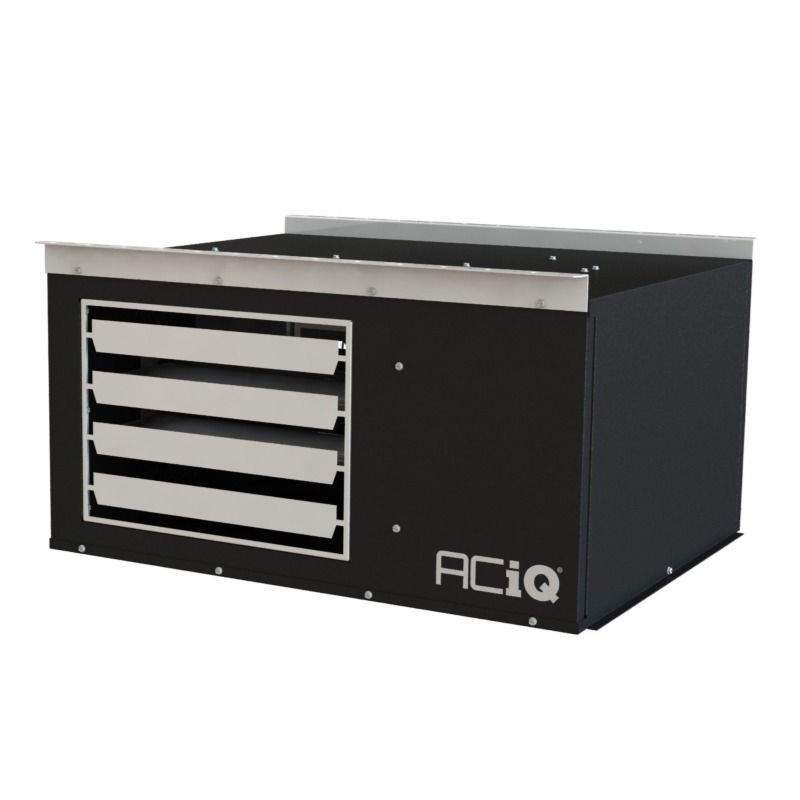

Aciq Aciq-UH-30 30,000 BTU Unit Heater (Ceiling Mount) Aciq-UH-30-NG

Product Description

The Aciq ACIQ-UH-30 is a 30,000 BTU gas-fired unit heater designed for ceiling mounting in residential garages, workshops, storage buildings, and light commercial spaces. It features an aluminized-steel tubular heat exchanger with approximately 80% thermal efficiency, a single-stage natural gas burner with direct-spark ignition and a seven-segment LED diagnostic display, operates on 115V single-phase power, delivers up to 456 CFM, and is convertible to propane with a factory-authorized conversion kit.

• 30,000 BTU capacity with aluminized-steel tubular heat exchanger and 80-85% AFUE
• Single-stage natural gas burner with direct-spark ignition (DSI) and seven-segment LED diagnostics
• Ceiling-mounted design with multi-point suspension, power-vented exhaust, 115V/1-phase operation (1.9 A)

Product Highlights

30,000 BTU ceiling-mounted gas heater; 456 CFM; approximately 40 dBA at 15 ft; ETL listed; convertible to propane

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-UH-30 *

Technical Specifications

• Manufacturer Part Number: ACIQ-UH-30
• Replacement Part Number: ACIQ-UH-30-NG
• Brand: ACiQ
• Heating Capacity: 30,000 BTU
• Efficiency (AFUE): 80-85%
• Heat Exchanger Material: Aluminized steel
• Maximum Airflow: 456 CFM
• Noise Level: 40 dBA (measured at 15 ft)
• Motor Speed: 1550 RPM
• Venting Type: Power vent
• Flue Location: Rear
• Flue Outlet Size: 4 in
• Power Consumption: 109 W
• Input Voltage: 115 V AC
• Phase: Single phase
• Input Current: 1.9 A
• Operating Mode: Heating
• Gas Connection: 1/2 in connection to gas valve
• Fuel Type: Natural gas; convertible to propane
• Ignition Type: Direct-spark ignition (DSI)
• Diagnostics: Seven-segment LED diagnostic display
• Mounting Type: Ceiling-mounted; multi-point suspension
• Dimensions (H x W x D): 14-3/4 in x 27-1/8 in x 21-17/32 in
• Weight: 60 lb
• Certifications: ETL listed for US and Canada
