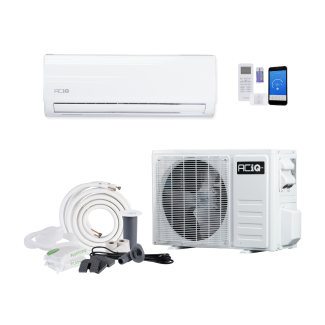

ACIQ ACIQ-KE36Z-HP230B 36,000 BTU ACIQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

Product Description

The ACIQ ACIQ-KE36Z-HP230B is a 36,000 BTU single zone wall mount mini split heat pump system. This unit operates on R32 refrigerant and is rated at 17 SEER2, efficient for both heating and cooling applications.

• Cooling BTU: 36,000 BTU
• Heating BTU: 36,000 BTU
• Decibel Level: 63 dBA (max)

Product Highlights

Ideal for residential or light commercial use, this system offers effective heating and cooling solutions. The unit includes a rotary compressor for reliable performance.

Product Information

Standard Information

• Refrigerant: R32
• Electrical: 208/230V, 1 Ph, 60 Hz

Technical Specifications

• Refrigerant Charge: 56.08 oz.
• Weight: 122.4 lbs
• HSPF2: 8.5 / 7.5
• Liquid Line: 1/4 inches
• Suction Line: 5/8 inches
• Minimum Outdoor Temp for Heating: 5°F
• Maximum Outdoor Temp for Heating: 86°F
• Minimum Outdoor Temp for Cooling: 53.6°F
• Maximum Outdoor Temp for Cooling: 122°F
• Height: 32.87 inches
• Width: 40.24 inches
• Depth: 18.90 inches
