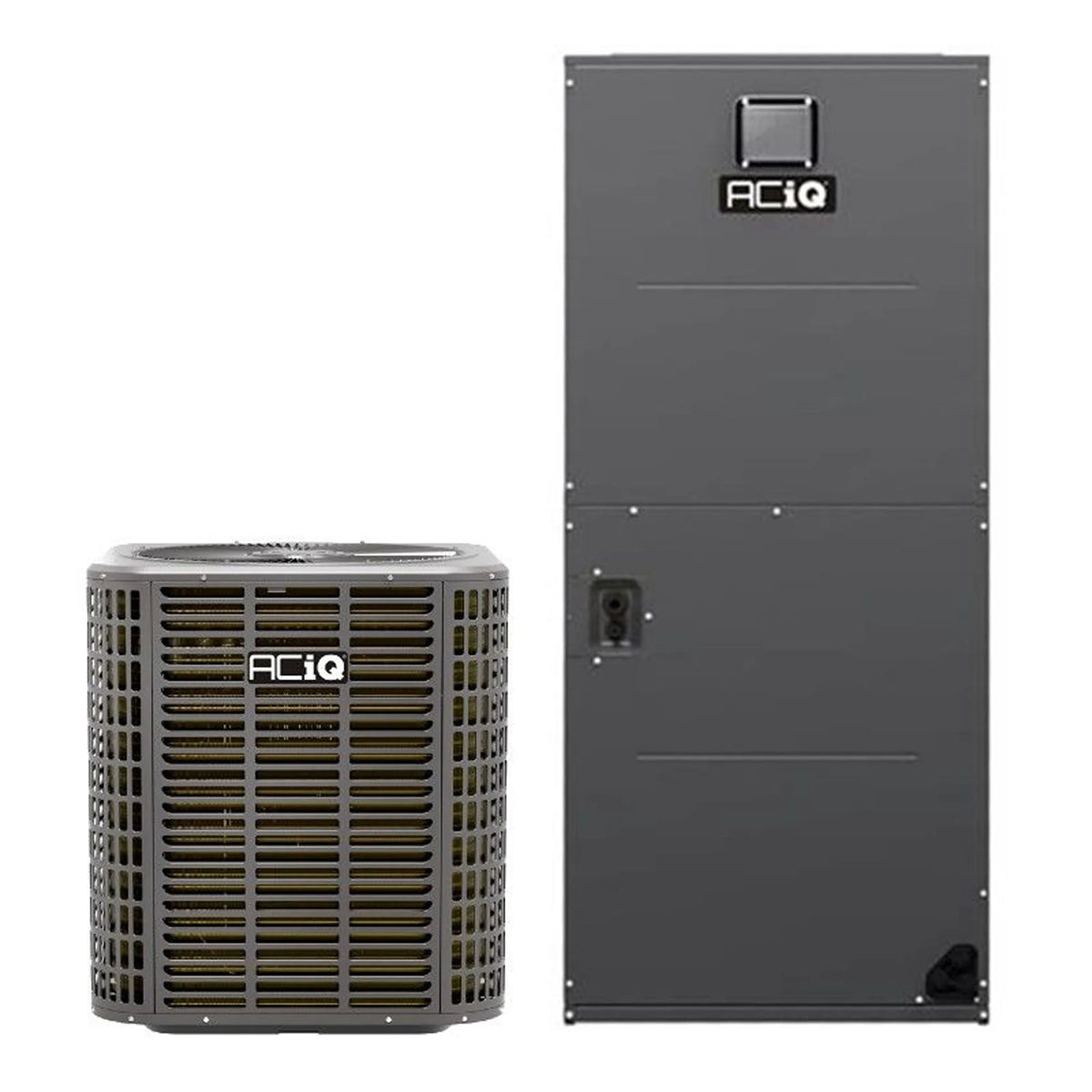

Aciq Aciq-60TD-HP32 Central Heat Pump Split System 5 Ton (Upflow/Horizontal-Right) Aciq-60TD-AH32

Product Description

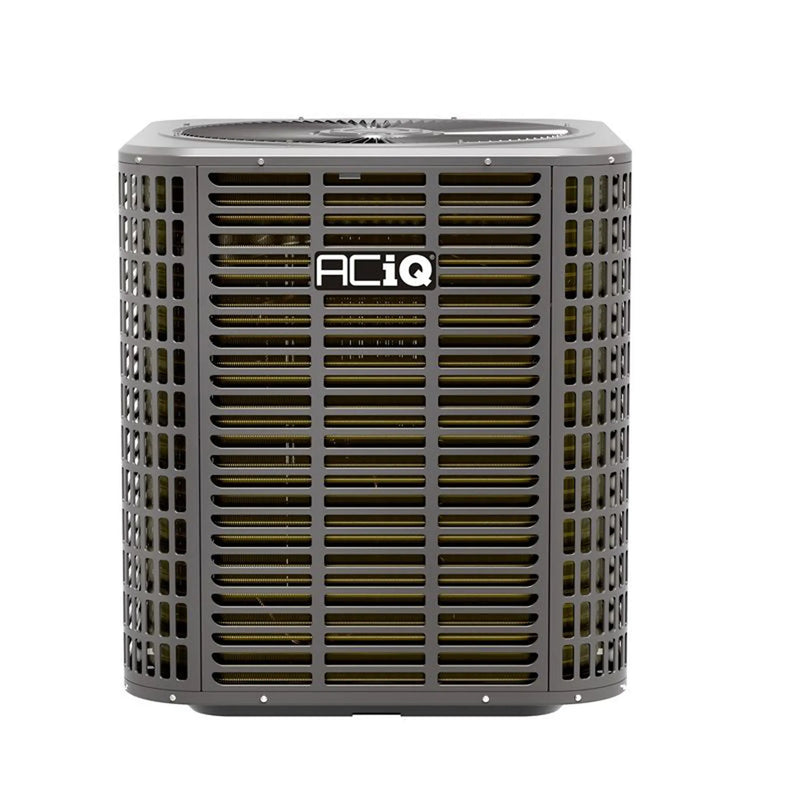

The ACiQ ACIQ-60TD-HP32 / ACIQ-60TD-AH32 is a 5 Ton inverter heat pump split system that pairs an R32 pre-charged outdoor condenser with a matched central air handler for ducted HVAC applications. The condenser uses a variable-speed rotary inverter compressor and is rated 14.3 SEER2, 8 EER2 and 8.1 HSPF2 for 54,000 BTU capacity; the air handler supports upflow or horizontal-right installation and delivers up to 1560 CFM.

• Variable-speed rotary inverter compressor; 54,000 BTU cooling/heating; 14.3 SEER2, 8 EER2, 8.1 HSPF2.
• Pre-charged with R32 (123.5 oz, A2L) refrigerant; requires R32-compatible indoor equipment with active leak detection; field-installable liquid line filter drier included.

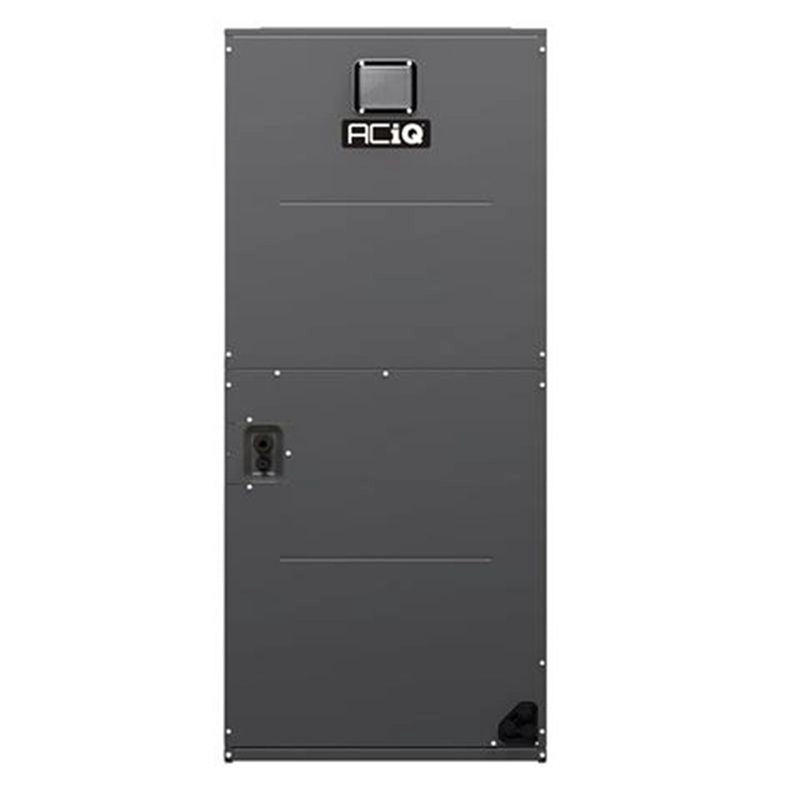

• Air handler multi-speed constant torque blower, upflow/horizontal-right multi-position cabinet, max 1560 CFM, filter size 20" x 22", accepts optional electric backup heat kits.

Product Highlights

All-electric 5 Ton inverter heat pump split system with R32 refrigerant, variable-speed compressor, matched 24.5" air handler (upflow or horizontal-right) and field-installable filter drier.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60TD-HP32 / ACIQ-60TD-AH32

Technical Specifications

• Brand: ACiQ
• Model (Condenser SKU): ACIQ-60TD-HP32
• Model (Air Handler SKU): ACIQ-60TD-AH32
• System Type: Central heat pump split system
• Tonnage: 5 Ton
• Cooling Capacity: 54,000 BTU
• Heating Capacity: 54,000 BTU
• SEER2: 14.3
• EER2: 8
• HSPF2: 8.1
• Refrigerant: R32 (A2L)
• Refrigerant Charge (Condenser): 123.5 oz
• Compressor Type: Rotary, variable-speed (inverter)
• Input Voltage: 208/230V 1 Phase 60Hz
• Phase: Single Phase
• Min Breaker Size (Condenser): 35 Amps
• Max Breaker Size (Condenser): 60 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 7/8"
• Air Handler Liquid Line: 3/8"
• Air Handler Suction Line: 7/8"
• Air Handler Maximum CFM: 1560
• Air Handler Horsepower: 1/2 HP
• Air Handler Filter Size: 20" x 22"
• Air Handler Configuration: Upflow / Horizontal-Right (multi-position)
• Air Handler Connection: Flare to braze
• Air Handler Electric Backup Heat Options: 5 kW, 10 kW, 15 kW, 20 kW
• Condenser Decibel Level: 69 dBA
• Air Handler Decibel Level: 60 dBA
• Condenser Dimensions (H x W x D): 33.1875" x 29.125" x 29.125"
• Air Handler Dimensions (H x W x D): 56.0" x 24.5" x 21.0"
• Condenser Weight: 216.10 lbs
• Air Handler Weight: 198.40 lbs
• Ambient Temperature Range (Condenser): -4F to 125F
• Condenser Min/Max Outdoor Temp for Heating: -4F to 80F
• Condenser Min/Max Outdoor Temp for Cooling: 5F to 125F
• Filter Drier: Field-installable liquid line filter drier included
• Refrigerant Safety: A2L classification; requires pairing with R32-compatible indoor equipment with active refrigerant leak detection
