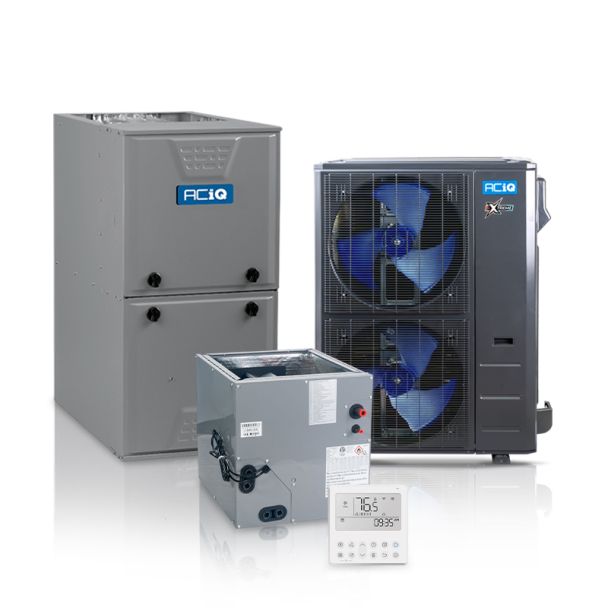

Aciq Aciq-60-HPD hybrid heat pump and gas furnace system 120,000 BTU (5 ton) N96MSN1202422A

Product Description

Aciq ACIQ-60-HPD / ACIQ-60-ACL-B / N96MSN1202422A is a hybrid HVAC system combining a 5-ton inverter heat pump and a 120,000 BTU 96% AFUE gas furnace. The heat pump provides 55,000 BTU cooling and 56,000 BTU heating with 16 SEER2 and 9.0 HSPF2 using R454B and a variable-speed inverter compressor. The factory cased A-coil includes a TXV; the furnace is multi-positional with an ECM blower and supports heating down to -22°F.

• Heat pump: 55,000 BTU cooling, 56,000 BTU heating, 16 SEER2, 9.0 HSPF2, uses R454B refrigerant (183.42 oz. charge).
• Furnace: 120,000 BTU, 96% AFUE, natural gas (field-convertible to propane), multi-positional configuration with ECM blower and up to 2105 CFM.
• Coil and system features: factory cased A-coil with TXV, 5-ton capacity, rotary variable-speed inverter compressor, supports heating to -22°F (Extreme Heat Technology).

Product Highlights

Hybrid 5-ton inverter heat pump paired with a 120,000 BTU 96% AFUE multi-positional gas furnace; factory cased A-coil with TXV; R454B refrigerant; extreme low-temperature heating capability.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-HPD / ACIQ-60-ACL-B / N96MSN1202422A

Technical Specifications

• Brand: ACiQ
• Model / MPN: ACIQ-60-HPD / ACIQ-60-ACL-B / N96MSN1202422A
• System Type: Hybrid heat pump and gas furnace system
• Tonnage: 5 Ton
• Furnace SKU: N96MSN1202422A
• Furnace Heating Capacity (BTU): 120,000
• Furnace AFUE: 96%
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2105
• Furnace Dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace Weight: 179 lb
• Heat Pump SKU: ACIQ-60-HPD
• Heat Pump Cooling Capacity (BTU): 55,000
• Heat Pump Heating Capacity (BTU): 56,000
• Heat Pump SEER2: 16
• Heat Pump HSPF2: 9.0
• Heat Pump Refrigerant: R454B
• Heat Pump Refrigerant Charge: 183.42 oz.
• Heat Pump Compressor Type: Rotary variable-speed (inverter)
• Heat Pump Maximum CFM: 2648.6
• Heat Pump Sound Level: 65 dBA
• Heat Pump Electrical: 208/230 V, 1 Phase, 60 Hz
• Heat Pump Dimensions (H x W x D): 52.48" x 37.48" x 16.34"
• Heat Pump Weight: 275.13 lb
• Coil SKU: ACIQ-60-ACL-B
• Coil Tonnage: 5 Ton
• Coil Configuration: Multi-positional
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 28" x 24.5" x 21"
• Coil Weight: 92 lb
• Coil Features: Factory-installed TXV kit
• Operating Temperature: Heating down to -22°F (Extreme Heat Technology)
• AHRI Certificate Number (Furnace): 213148763
• Certifications: UL Listed (coil), Energy Star (furnace)
