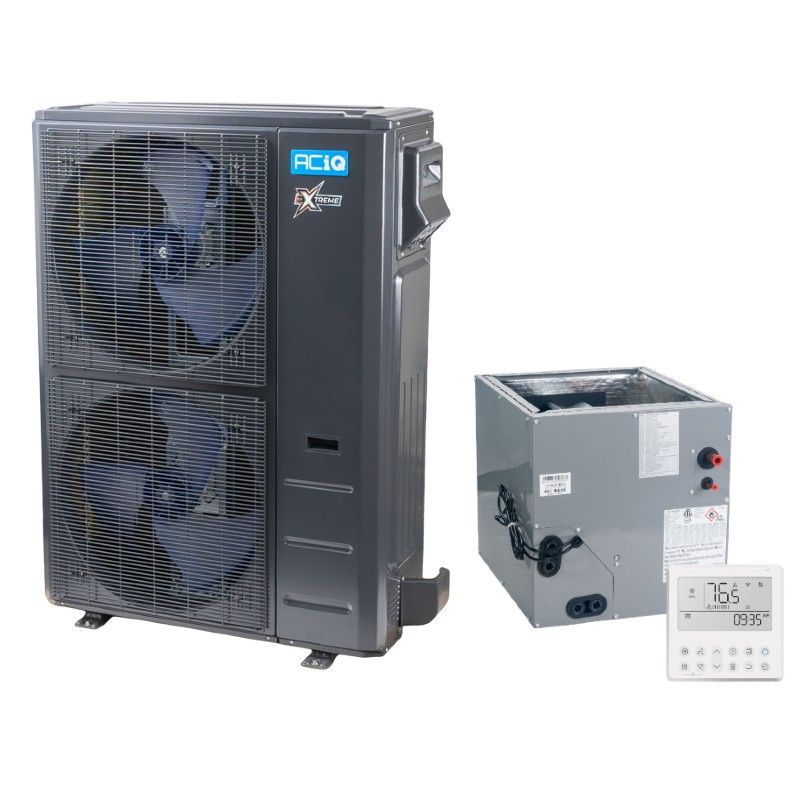

Aciq Aciq-60-HPD Extreme Series central heat pump 5 Ton (24.5 in coil) Aciq-60-ACL-B

Product Description

ACIQ ACIQ-60-HPD / ACIQ-60-ACL-B is a 5 Ton Extreme Series high-efficiency central heat pump system combining an inverter condenser and a 24.5 in multi-positional cased evaporator coil. The variable inverter twin rotary compressor delivers up to 55,000 BTU cooling and 56,000 BTU heating using R454B refrigerant, supports 208/230 V single-phase operation, and maintains performance down to -22°F for ducted residential applications.

• Variable inverter twin rotary compressor with variable-speed condenser providing up to 55,000 BTU cooling and 56,000 BTU heating.
• R454B refrigerant system with 183.42 oz condenser refrigerant charge and factory-installed TXV kit in the coil.
• 24.5 in multi-positional A-coil (upflow, downflow, horizontal); rated approximately 15.2 SEER2, 9.0 HSPF2, sound level 65 dBA.

Product Highlights

5 Ton inverter heat pump system with R454B refrigerant and 24.5 in multi-positional coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-HPD / ACIQ-60-ACL-B

Technical Specifications

• Package model: ACIQ-60-HPD / ACIQ-60-ACL-B
• Condenser SKU: ACIQ-60-HPD
• Coil SKU: ACIQ-60-ACL-B
• Tonnage: 5 Ton
• SEER2: 15.2
• HSPF2: 9.0
• Cooling BTU: 55,000 BTU
• Heating BTU: 56,000 BTU
• Refrigerant: R454B
• Refrigerant charge (condenser): 183.42 oz.
• Compressor type: Variable inverter twin rotary
• Condenser stages: Variable speed
• EER2: 10.0
• Maximum CFM: 2648.6
• Sound level (dBA): 65
• Liquid valve size: 3/8"
• Suction valve size: 3/4"
• Input voltage: 208/230 V, 1 phase, 60 Hz
• Phase: Single phase
• Maximum breaker size: 40 Amps
• Minimum breaker size: 40 Amps
• Zone compatibility: Single Zone
• Operating ambient temperature range: -22°F to 122°F
• Condenser dimensions (H x W x D): 52.48 in x 37.48 in x 16.34 in
• Coil dimensions (H x W x D): 28 in x 24.5 in x 21 in
• Coil configuration: Multi-positional A-coil (upflow, downflow, horizontal)
• Coil features: Factory-installed TXV kit
• Certifications: UL Listed
