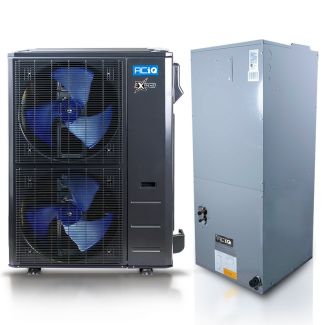

ACIQ ACIQ-60-HPD / ACIQ-60-AHD Extreme Series 5 Ton 16 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Multi-Positional

Product Description

The ACIQ Extreme Series 5 Ton 16 SEER2 High Efficiency Heat Pump Split System features the ACIQ-60-HPD and ACIQ-60-AHD models for optimal heating and cooling solutions. Designed to operate efficiently with an inverter technology, this dual system provides a cooling capacity of fifty-five thousand BTU and a heating capacity of fifty-six thousand BTU. It operates with R454B refrigerant, offering an environmentally friendly option for temperature control.

• High efficiency design with sixteen SEER2 rating
• Low ambient heating capabilities
• Variable speed condenser for effective temperature regulation

Product Highlights

This heat pump split system is ideal for residential and commercial use. It is compatible with single zone configurations and is effective in various temperature ranges from negative twenty-two degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: ACIQ
• Weight: 275.13 lbs

Technical Specifications

• Refrigerant Charge: 183.42 oz.
• HSPF2: 9.0
• Maximum CFM: 2648.6
• Decibel Level (dBA): 65
• Electrical Requirements: 208/230V, 1 Phase, 60 Hz
• Min/Max Outdoor Temperature for Heating: -22°F - 75°F
• Min/Max Outdoor Temperature for Cooling: -22°F - 122°F
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
