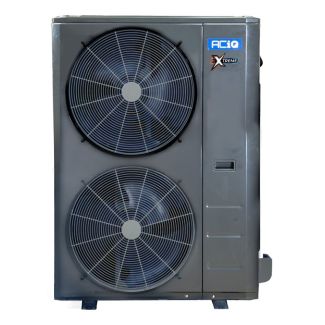

ACIQ ACIQ-60-HPD 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B

Product Description

The ACIQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump, model ACIQ-60-HPD, is designed for outdoor use with inverter technology. It operates efficiently with a variable speed compressor, ensuring optimized performance across various conditions. The heat pump can function in temperatures as low as negative twenty-two degrees Fahrenheit and up to seventy-five degrees Fahrenheit for heating applications.

• 5 ton capacity with 55,000 BTU cooling and 56,000 BTU heating.
• Efficiency rating of 16 SEER2 with an HSPF2 of 9.0.
• Utilizes R454B refrigerant which is more environmentally friendly.

Product Highlights

This model is suitable for single-zone applications and offers low ambient heating capability.

Product Information

Standard Information

• Brand: ACIQ
• Replaces: ACIQ-60-HPB

Technical Specifications

• Refrigerant Charge: 183.42 oz.
• Weight: 275.13 lbs
• Cooling BTU: 55,000 BTU
• Heating BTU: 56,000 BTU
• Maximum CFM: 2648.6
• Decibel Level (dBA): 65
• Electric Heat: Heat Pump
• Phase: Single Phase
• Max Breaker Size: 40 Amps
• Min/Max Outdoor Temp for Heating: -22°F - 75°F
• Min/Max Outdoor Temp for Cooling: -22°F - 122°F
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
• Warranty: 12 years compressor, 7 years parts with online registration
