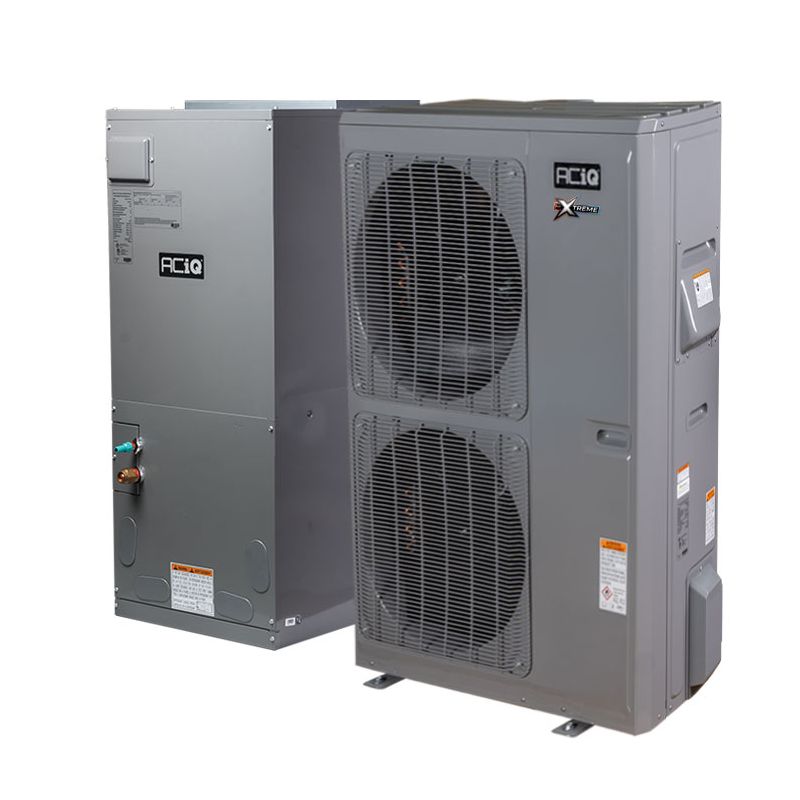

Aciq Aciq-60-HP32 5-Ton R32 High Efficiency Heat Pump System 54,000 BTU (5 Ton) Aciq-60-AH32

Product Description

ACIQ ACIQ-60-HP32 / ACIQ-60-AH32 is a 5-ton inverter heat pump split system that provides 54,000 BTU for cooling and heating using R32 refrigerant and an inverter rotary compressor. The system operates on 208-230V, 1 phase, 60 Hz, includes a Gold Fin coated condenser coil, and a multi-positional ducted air handler with a variable DC blower. Operating ranges cover cooling from 5°F to 129°F and heating from -22°F to 75°F.

• Inverter rotary compressor with R32 refrigerant and Gold Fin condenser coil
• Electrical: 208-230V, 1 Phase, 60 Hz; cooling/heating capacity 54,000 BTU
• Multi-positional ducted air handler with variable DC blower; condenser variable-speed stages

Product Highlights

5-ton inverter heat pump split system, 54,000 BTU cooling/heating, 18 SEER efficiency, R32 refrigerant

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-HP32 / ACIQ-60-AH32

Technical Specifications

• Model / MPN: ACIQ-60-HP32 / ACIQ-60-AH32
• System tonnage: 5 Ton
• Cooling Capacity: 54,000 BTU
• Heating Capacity: 54,000 BTU
• SEER2 (Efficiency): 18
• EER: 11.7
• HSPF2: 10.5
• Compressor Type: Inverter Rotary
• Condenser stages: Variable Speed
• Refrigerant: R32
• Refrigerant Charge (condenser): 162.30 oz.
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Input Voltage: 208-230V, 1 Phase, 60 Hz
• Phase: Single Phase
• Max Breaker Size (MOP): 45
• Min Breaker Size (MCA): 39.9
• Operating Temperature Range (Cooling): 5°F to 129°F
• Operating Temperature Range (Heating): -22°F to 75°F
• Maximum CFM (Condenser): 4000
• Maximum CFM (Air handler): 1500
• Decibel Level (Condenser Max): 73 dBA
• Decibel Level (Air handler Max): 63 dBA
• Horsepower (Condenser): 2 x 1/5 (likely fan motor ratings)
• Horsepower (Air handler): 1.0
• Condenser Coil Coating: Gold Fin
• Air handler features: Variable DC blower; multi-positional (upflow, downflow, horizontal left/right)
• Compatibility: Compatible with 24V thermostats; manufactured and mobile home approved
• AHRI Certificate Number: 215387241
• Dimensions (Condenser): 35.43 in W x 13.39 in D x 49.61 in H
• Dimensions (Air handler): 24.80 in W x 21.26 in D x 51.97 in H
• BTU per ton: 12,000 BTU/ton
