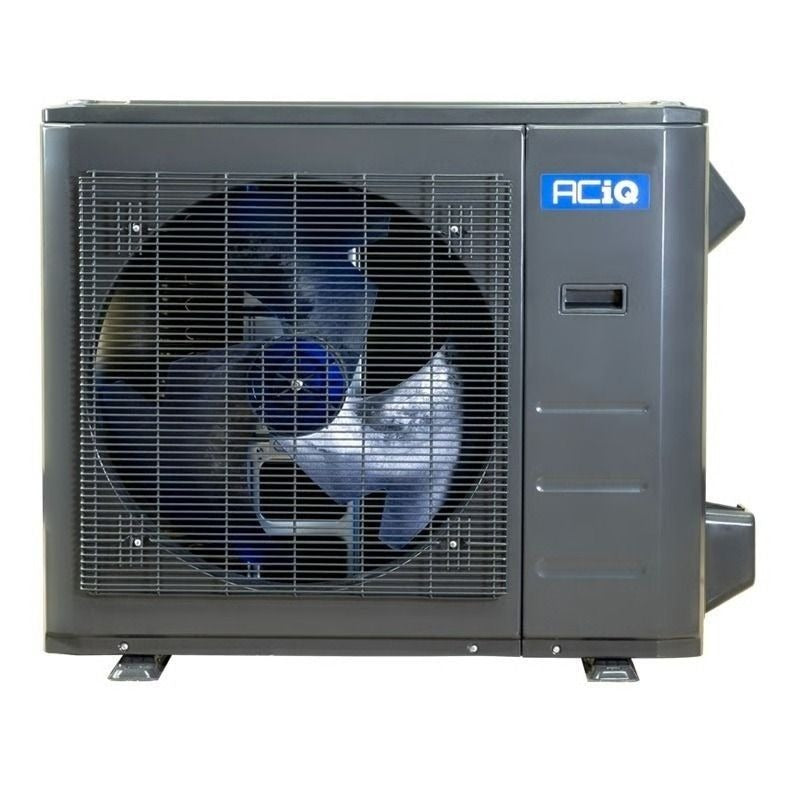

Aciq ACIQ-60-EHPD 5 Ton 15.2 SEER2 Inverter Heat Pump R454B

Product Description

The ACIQ ACIQ-60-EHPD / ACIQ-48-ACL-B is a 5-ton variable-speed inverter heat pump and cased coil system rated at 15.2 SEER2 and 8.4 HSPF2, operating on R454B refrigerant. The condenser uses a rotary compressor with variable-speed staging for precise capacity modulation across a wide range of outdoor conditions. Cooling and heating capacity are both rated at 54,000 BTU/h. The system operates on 208/230-volt single-phase power and is designed for residential single-zone central ducted applications. Licensed HVAC technicians handle installation and commissioning of this system.

This system is suited for residential single-zone central ducted installations requiring high-efficiency heat pump performance in climates with cold winters. The outdoor unit maintains heating operation down to -13 degrees F and supports cooling up to 122 degrees F ambient, making it viable across a broad range of North American climate zones. The 21-inch multi-positional cased coil ships as part of the bundle under model ACIQ-48-ACL-B. The AHRI certified system combination certificate number is 217285092. This system replaces the ACiQ-60-EHPB.

Key Features

• 15.2 SEER2 and 8.4 HSPF2 efficiency ratings under DOE 2023 test standards
• Variable-speed rotary compressor provides capacity modulation for consistent temperature control
• R454B refrigerant — lower global warming potential than R410A
• Heating and cooling operation rated down to -13 degrees F outdoor ambient
• 54,000 BTU/h (5 ton) cooling and heating capacity
• 12-year compressor and 7-year parts warranty with online registration
• AHRI certified system — certificate number 217285092

Compatibility

This listing is an AHRI-matched system bundle pairing the ACIQ-60-EHPD condenser with the ACIQ-48-ACL-B 21-inch multi-positional cased coil. It is a direct replacement for the ACiQ-60-EHPB condenser. Confirm AHRI certificate 217285092 against the coil and air handler before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 certification, as this system contains R454B refrigerant classified as a mildly flammable A2L refrigerant requiring appropriate handling equipment and procedures. Disconnect and lock out all electrical power before servicing or making refrigerant connections. Liquid and suction line connections are 3/8 inch and 3/4 inch respectively — do not reduce line set sizing without consulting manufacturer extended performance tables. Refer to the manufacturer condenser installation manual and the ACiQ 24-volt wiring notice before completing low-voltage control wiring.

Technical Specifications

• Tonnage: 5 Ton
• Cooling Capacity: 54,000 BTU/h
• Heating Capacity: 54,000 BTU/h
• SEER2: 15.2
• EER2: 8.6
• HSPF2: 8.4
• Refrigerant: R454B
• Refrigerant Charge: 134.04 oz.
• Compressor Type: Rotary
• Condenser Stages: Variable Speed
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 40 Amps
• Min Breaker Size: 39 Amps
• Maximum CFM: 3,037.1
• Sound Level: 65 dBA
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 3/4 inches
• Zone Compatibility: Single Zone
• Min/Max Outdoor Temp for Heating: -13 degrees F to 75 degrees F
• Min/Max Outdoor Temp for Cooling: -13 degrees F to 122 degrees F
• Height: 38.39 inches
• Width: 38.58 inches
• Depth: 16.34 inches
• Weight: 224.21 pounds
• Warranty: 12 Years Compressor and 7 Years Parts with Online Registration

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-EHPD / ACIQ-48-ACL-B
