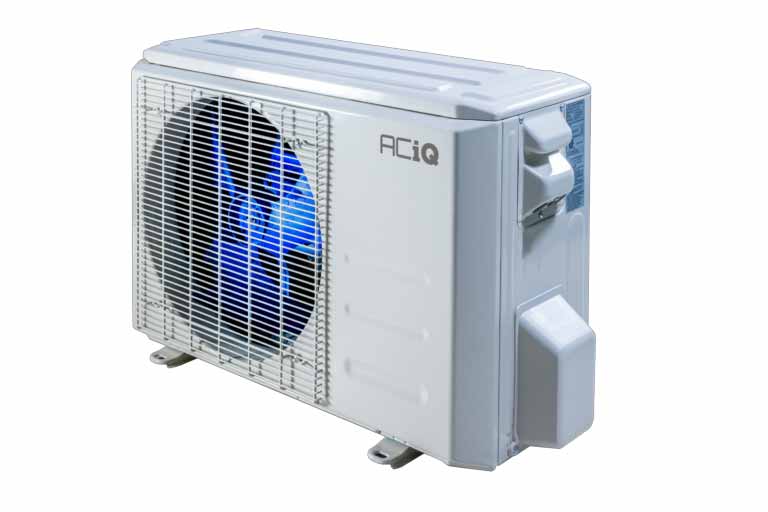

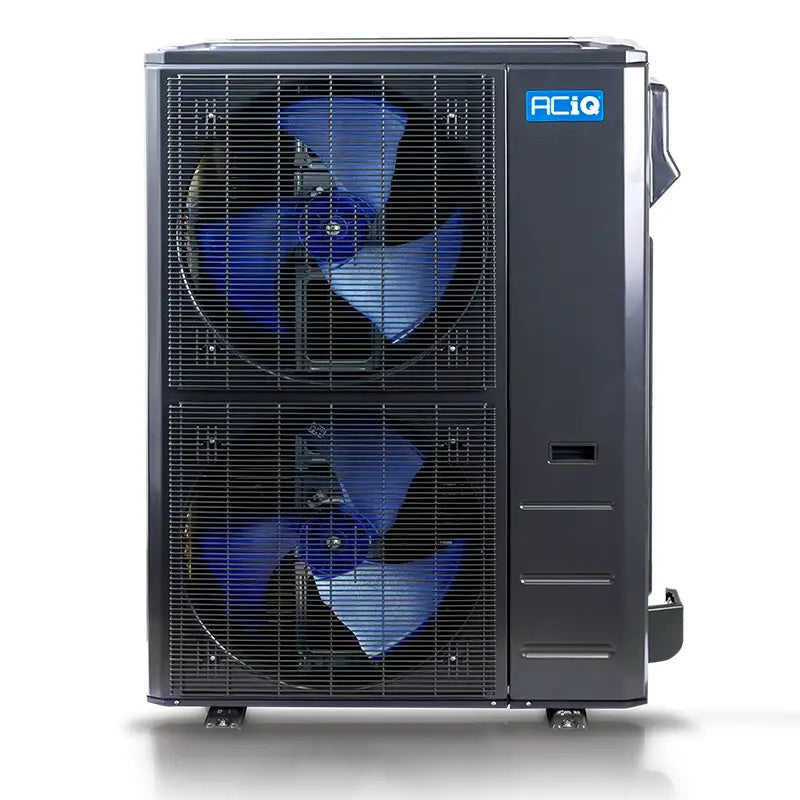

Aciq Aciq-60-AC-B Aciq 60 AC-B 60,000 BTU (5 Ton)

Product Description

ACiQ ACIQ-60-AC-B is a 5 Ton (60,000 BTU) air conditioner condenser rated at 14.8 SEER that operates on 208-230V single-phase power. The unit uses R454B refrigerant, features a rotary compressor, Gold Fin coil coating, and is designed for outdoor cooling operation across -13 to 122 F with a sound level of 63 dB(A). It includes liquid and suction line connections sized 3/8" and 3/4" respectively.

• 60,000 BTU cooling capacity, 5 Ton, 14.8 SEER, rotary compressor
• Precharged for R454B refrigerant; liquid line 3/8" and suction line 3/4"
• Operates from -13 to 122 F, 63 dB(A) sound level, Gold Fin coil coating

Product Highlights

High-efficiency 5 Ton condenser (60,000 BTU) with R454B refrigerant, rotary compressor, Gold Fin corrosion protection.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-AC-B

Technical Specifications

• Model: ACIQ-60-AC-B
• Brand: ACiQ
• Tonnage: 5 Ton
• Cooling Capacity: 60,000 BTU
• SEER: 14.8
• EER2: 8.5
• Compressor Type: Rotary
• Refrigerant: R454B
• Input Voltage: 208-230V 1 Phase 60 Hz
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Sound Level: 63 dB(A)
• Operating Temperature Range: -13 to 122 F
• Dimensions (W x D x H): 37.48 x 16.34 x 52.48 inches
• Weight: 212.30 lbs.
• Maximum CFM: 4503
• Max Breaker Size: 40 Amps
• Min Breaker Size: 37 Amps
• Condenser Stages: Variable Speed
• Operating Mode: Cooling
