Aciq Aciq-60-AC-B 5 Ton 14.8 SEER2 Central Air Conditioner Split System 60000 BTU (24.5 in Coil / 30 ft Install Kit) Aciq-60-ACL-B

Product Description

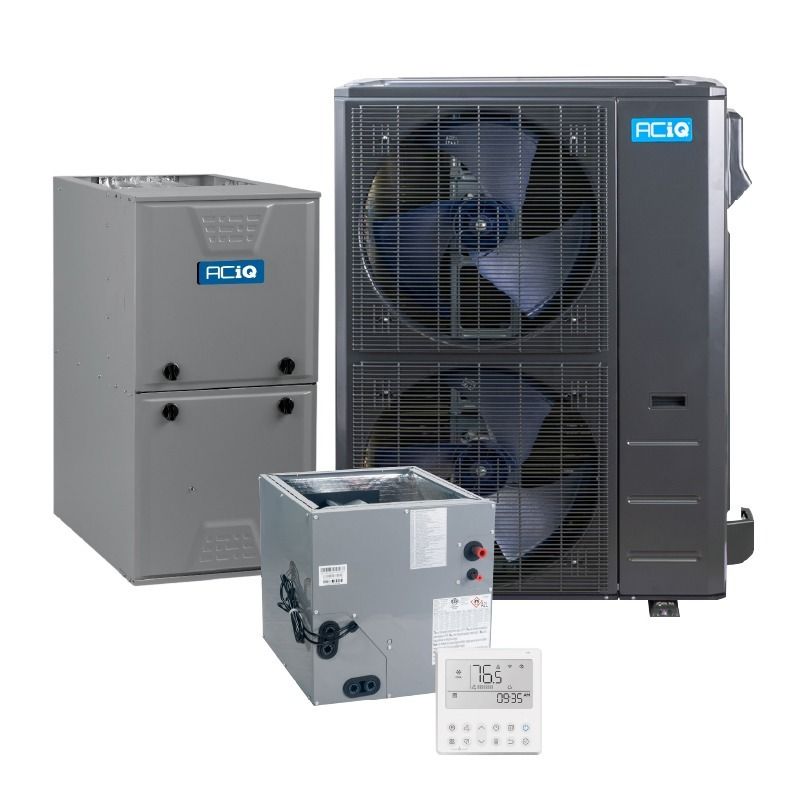

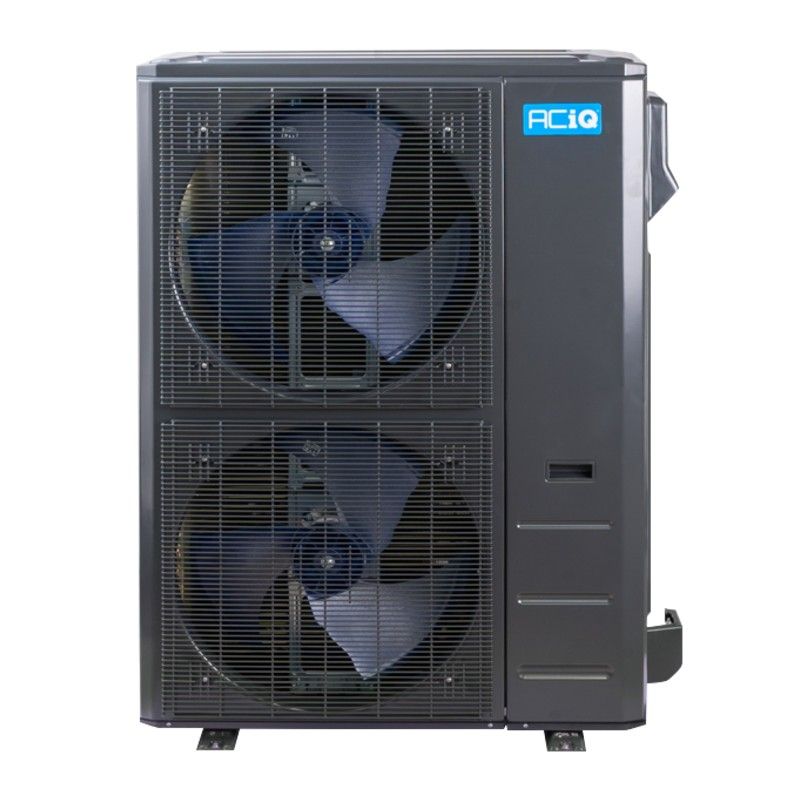

ACIQ ACIQ-60-AC-B is a 5 ton (60,000 BTU) central air conditioner condenser for split systems paired with the ACIQ-60-ACL-B multi-positional evaporator coil. The condenser uses inverter-driven variable compressor output (12,000–60,000 BTU), provides 14.8 SEER2 efficiency, and is R454B compatible. The package includes a 24.5 in multi-positional all-aluminum coil with factory TXV, a 30 ft installation kit, thermostat, disconnect, and surge protector for 208–230V single-phase operation.

• Inverter variable-speed compressor with 12,000–60,000 BTU output and 14.8 SEER2 efficiency

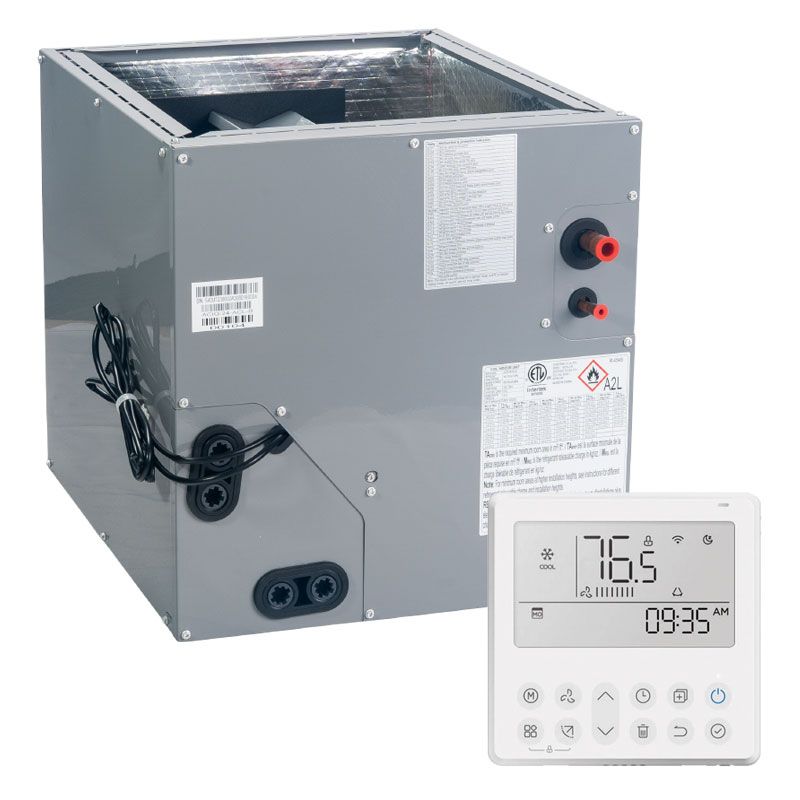

• Multi-positional 24.5 in all-aluminum evaporator coil with factory-installed TXV and AHRI listing
• Includes 30 ft installation kit, thermostat, electrical whip, 60A non-fused disconnect, surge protector and CPS charging adapter

Product Highlights

14.8 SEER2 inverter-driven 5 ton condenser with 24.5 in multi-positional coil and 30 ft install kit

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-AC-B / ACIQ-60-ACL-B

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-60-AC-B / ACIQ-60-ACL-B
• Model Number: ACIQ-60-AC-B / ACIQ-60-ACL-B
• Capacity: 60000 BTU (5 Ton)
• SEER2 Rating: 14.8
• Refrigerant: R454B
• Variable Output Range: 12,000 - 60,000 BTU
• Compressor Type: Rotary (variable inverter twin rotary)
• Input Voltage: 208-230V 1 Phase 60 Hz
• Phase: Single Phase
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Decibel Level: 63 dBA
• Operating Temperature Range: 5°F to 122°F
• Dimensions (Condenser H x W x D): 52.48 in x 37.48 in x 16.34 in
• Weight (Package): 336.5 Pounds
• Coil Type: All-aluminum evaporator coil
• Coil Configuration: Multi-positional
• Coil Dimensions (H x W x D): 28 in x 24.5 in x 21 in
• Coil Width: 24.5 in
• Coil Weight: 92.00 lbs

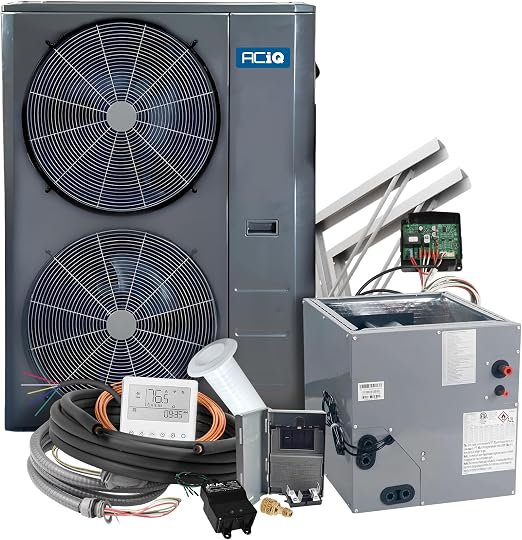

• Included Components: Outdoor condenser, indoor coil, thermostat, 30 ft line set, wall sleeve, electrical whip, 60A non-fused disconnect switch, surge protector, CPS charging adapter, wall mount bracket
• Coil Features: Factory-installed TXV, AHRI listed, UL listed
• Condenser Coil Coating: Gold Fin
• Operating Mode: Cooling
