Product Description

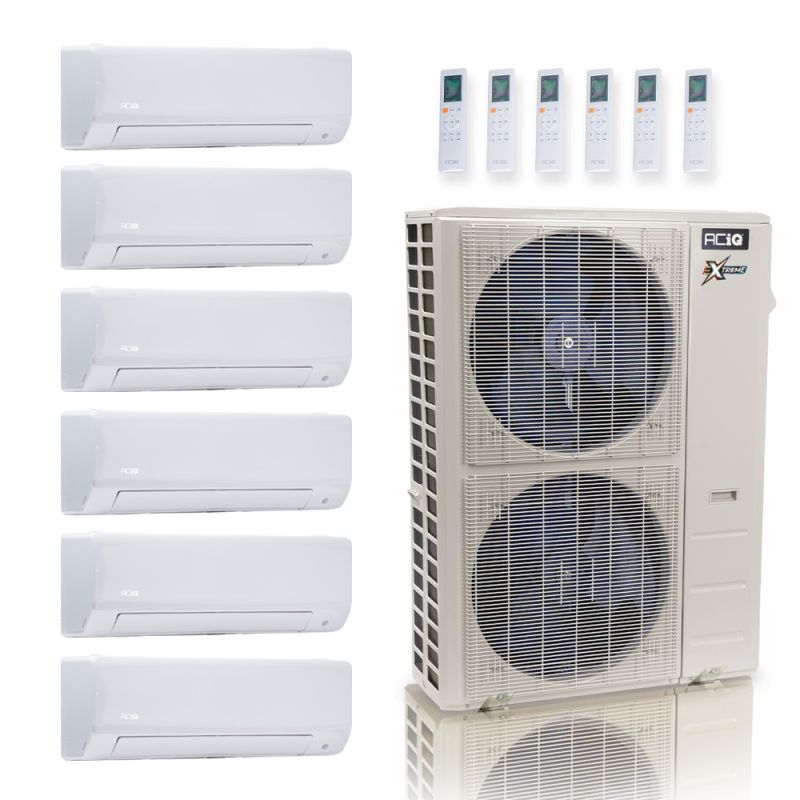

The ACiQ 55,000 BTU ACiQ Extreme Heat Pump System, model ACIQ-55Z-HH-M6C, provides efficient heating and cooling for up to six areas. This system operates with 22.2 SEER2 efficiency, making it suitable for extreme weather conditions. It utilizes R454B refrigerant and works on a 230V power supply, ensuring reliability and performance.
- Maximum capacity of 55,000 BTU for robust climate control
- Includes up to six indoor air handlers for zone-based comfort
- Low noise operation at 65 dBA
Product Highlights
This system is ideal for both residential and commercial applications, providing versatile installation options and exceptional energy efficiency.
Product Information
Standard Information
-
Brand: ACIQ
-
MPN: ACIQ-55Z-HH-M6C
Technical Specifications
-
Cooling BTU: 55,000 BTU
-
Heating BTU: 55,000 BTU
-
Maximum CFM: 4503
-
Electrical: 208/230V, 1 Phase, 60 Hz
-
Decibel Level (dBA): 65
-
Liquid Line: 1/4 inch
-
Suction Line: 3/8 inch (4); 1/2 inch (2)
-
Height: 52.48 inches
-
Width: 37.48 inches
-
Depth: 16.34 inches
-
Warranty: 12 years compressor, 7 years parts with online registration
