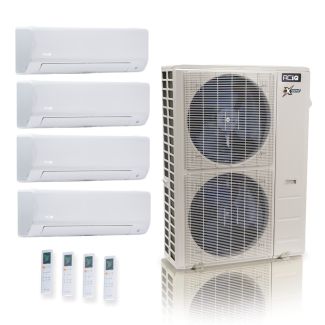

ACIQ ACiQ-55Z-HH-M6C 55,000 BTU ACiQ Extreme 22.2 SEER2 4 Zone Wall Mount Mini Split Heat Pump System - R454B | 230V - 9 + 9 + 12 + 24

Product Description

The ACIQ 55,000 BTU ACiQ Extreme Heat Pump System, model ACiQ-55Z-HH-M6C, is designed to efficiently heat and cool multiple zones in commercial or residential settings. This efficient mini split system features a SEER2 rating of 22.2, which signifies high energy efficiency. It uses refrigerant R454B and operates on 230V electric power, making it suitable for a range of installations.

• Four-zone comfort control with varied BTU options (9,000, 9,000, 12,000, and 24,000).
• Advanced technology includes low ambient heating capability.
• Quiet operation with a minimal decibel level ensuring comfort.

Product Highlights

This system includes a high-capacity condenser and multiple air handling units, allowing for tailored climate control in various zones. The design is optimized for ease of installation and operation, supporting both residential and light commercial applications.

Product Information

Standard Information

• Manufacturer: ACIQ
• Cooling Capacity: 55,000 BTU

Technical Specifications

• Heating Capacity: 55,000 BTU
• SEER2 Rating: 22.2
• Refrigerant Type: R454B
• Liquid Line Size: 1/4 inch
• Suction Line Size: 3/8 inch
• Electrical Requirements: 208/230V, 1 Phase, 60 Hz
• Maximum CFM: 4503
• Decibel Level: 65
• Warranty: 12 years for compressor, 7 years for parts with online registration
