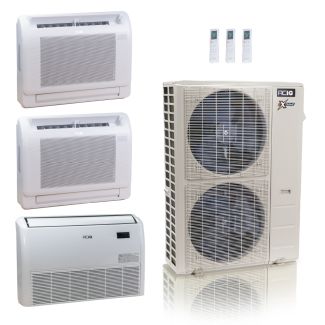

ACIQ ACIQ-55Z-HH-M6C 55,000 BTU ACiQ Extreme 22.2 SEER2 3 Zone Floor Mount Mini Split Heat Pump System - R454B | 230V - 12 + 12 + 24

Product Description

The ACIQ ACIQ-55Z-HH-M6C offers a 55,000 BTU heating capacity and is designed for multi-zone applications. This unit features a SEER2 rating of 22.2, making it highly efficient for residential or commercial heating and cooling needs. The heat pump operates on the environmentally friendly refrigerant R454B and connects to 12,000 BTU and 24,000 BTU air handlers to create a versatile climate control system.

• Multi-zone capability with one condenser servicing three indoor units.
• Whisper-quiet operation, minimizing noise at only 65 dBA.
• Energy Star rated for efficiency and cost savings.

Product Highlights

The ACIQ-55Z-HH-M6C is ideal for larger spaces, providing efficient heating and cooling across multiple zones. Its compatibility with various air handlers allows flexibility in installation and design.

Product Information

Standard Information

• Manufacturer: ACIQ
• Warranty: 12 year compressor, 7 year parts with online registration

Technical Specifications

• Cooling Capacity: 51,000 BTU
• Heating Capacity: 55,000 BTU
• Max CFM: 4503
• Electrical: 208/230V, 1 Phase, 60 Hz
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch (4); 1/2 inch (2)
• Dimensions: Height 52.48 inches, Width 37.48 inches, Depth 16.34 inches
• Refrigerant: R454B
