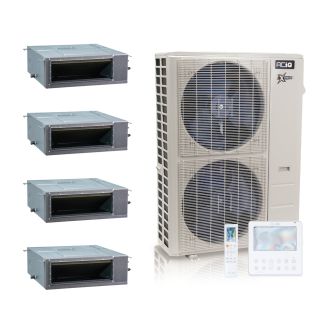

ACIQ ACiQ-55Z-HH-M6C 55,000 BTU ACiQ Extreme 20 SEER2 4 Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V

Product Description

The ACiQ ACiQ-55Z-HH-M6C is a 55,000 BTU multi-zone heat pump system designed for efficient heating and cooling. This system operates with R454B refrigerant and is suitable for various applications in residential and commercial settings.

• Cooling capacity of 51,000 BTU
• Heating capacity up to 55,000 BTU
• Zone compatibility for multi-zone applications

Product Highlights

The ACiQ-55Z-HH-M6C features low ambient heating and energy efficiency ratings with an SEER2 of 22.2, making it an excellent choice for temperature control in multiple zones.

Product Information

Standard Information

• Brand: ACiQ
• MPN: ACiQ-55Z-HH-M6C

Technical Specifications

• Refrigerant Charge: 151.68 oz.
• Weight: 276.68 lbs
• AHRI Certificate Number: 216032373
• Compressor Type: Twin Rotary
• Liquid Line: 1/4 inch (6)
• Suction Line: 3/8 inch (4); 1/2 inch (2)
• Electrical Input: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 40A
• Min. Breaker Size: 39.5A
• Tonnage: 4.5 Ton
• Warranty: 12 years compressor, 7 years parts with online registration
