ACIQ ACIQ-48Z-HH-M6C / SCC-12-HH-MB-5 48000 BTU Mini Split Heat Pump System

Product Description

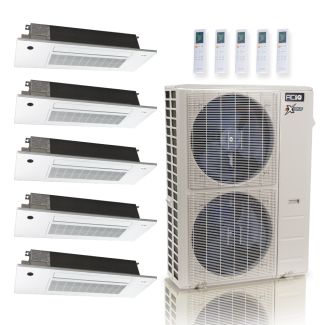

The ACiQ ACIQ-48Z-HH-M6C is a 48,000 BTU mini split heat pump system designed for multi-zone applications. This energy-efficient unit operates at a high SEER of 23 and is compatible with various ACiQ air handlers. The system uses R454B refrigerant, which is eco-friendly and efficient for cooling and heating.

• Includes five zones: 12,000 BTU each.
• Low ambient heating capability.
• Wireless remote control included.

Product Highlights

This unit provides powerful heating and cooling for multiple zones with a compact design for ceiling installation.

Product Information

Standard Information

• Brand: ACiQ
• MPN: ACIQ-48Z-HH-M6C / SCC-12-HH-MB-5

Technical Specifications

• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Maximum CFM: 4503 CFM
• Decibel Level (dBA): 65
• Electrical: 208/230V, 1 Phase, 60 Hz
• Mini Split Type: Multi-Zone
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
• Warranty: 12 year compressor, 7 year parts with registration
