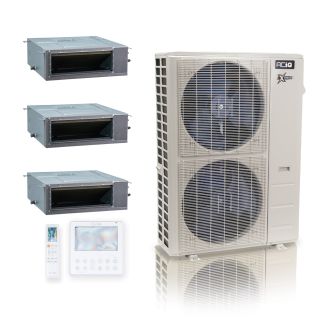

ACIQ ACIQ-48Z-HH-M6C ACiQ Extreme Mini Split Heat Pump System 48000 BTU 3 Zone R454B

Product Description

The ACiQ ACIQ-48Z-HH-M6C is a mini split heat pump system designed for high efficiency with a cooling capacity of forty-eight thousand BTU. It operates with a SEER2 rating of 20.4, making it suitable for various applications including residential and commercial spaces. This system features a R454B refrigerant and operates at 230 volts.

• Includes three zones: one nine thousand BTU and two twelve thousand BTU air handlers.
• Features low ambient heating capability, ideal for various climates.
• Energy Star rated for high efficiency.

Product Highlights

High performance mini split system suitable for multi-zone cooling and heating.

Product Information

Standard Information

• Brand: ACiQ
• MPN: ACIQ-48Z-HH-M6C

Technical Specifications

• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Refrigerant Charge: 151.68 oz.
• Maximum CFM: 4503
• Decibel Level (dBA): 65
• Electric Heat: Heat Pump
• Liquid Line: 1/4inch (6)
• Suction Line: 3/8inch (4); 1/2inch (2)
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 40A
• Min. Breaker Size: 37A
• Tonnage: 4 Ton
• Height: 52.48inch
• Width: 37.48inch
• Depth: 16.34inch
• Warranty: 12 year compressor, 7 year parts with online registration
