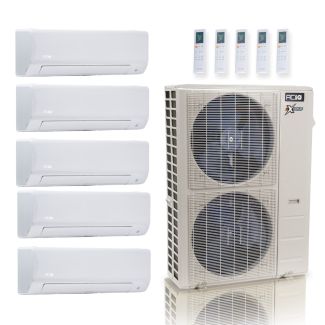

ACIQ ACIQ-48Z-HH-M6C 48,000 BTU Mini Split Heat Pump System

Product Description

The ACIQ ACIQ-48Z-HH-M6C is a high-efficiency 48,000 BTU mini split heat pump system designed for multi-zone applications. This system operates on R454B refrigerant and is ideal for spaces requiring efficient cooling and heating solutions. It includes multiple air handlers to provide flexibility in temperature control across different zones.

• Cooling capacity of 47,000 BTU and heating capacity of 49,000 BTU.
• Energy efficient with a SEER2 rating of 23 and HSPF2 rating of 11.0.
• Supports WiFi functionality for remote operation and monitoring.

Product Highlights

This system features low ambient heating and is equipped with a twin rotary compressor for reliable performance. It is perfect for residential and commercial settings requiring temperature control across multiple zones.

Product Information

Standard Information

• Refrigerant Charge: 151.68 oz.
• Electrical: 208/230V, 1 Phase, 60 Hz

Technical Specifications

• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Decibel Level (dBA): 65
• Max Breaker Size: 40A
• Mini Split Type: Wall Mounted
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
