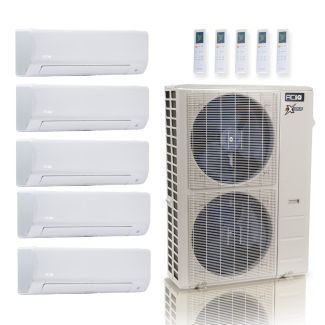

ACIQ ACIQ-48Z-HH-M6C 48,000 BTU Extreme 23 SEER2 5 Zone Wall Mount Mini Split Heat Pump System - R454B

Product Description

The ACIQ ACIQ-48Z-HH-M6C is a 48,000 BTU mini split heat pump system designed for efficiency and versatility. This system operates at 23 SEER2 and is suitable for multi-zone applications, ensuring optimal heating and cooling across up to five zones. The unit uses R454B refrigerant and is powered at 230V.

• Multi-zone compatibility
• High efficiency with a SEER2 rating of 23
• Low ambient heating capability

Product Highlights

Ideal for residential and commercial settings, this mini split system provides excellent heating and cooling performance while maintaining energy efficiency.

Product Information

Standard Information

• Manufacturer: ACIQ
• Weight: 276.68 pounds

Technical Specifications

• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Refrigerant Charge: 151.68 ounces
• SEER2: 23
• HSPF2: 11.0
• Max Breaker Size: 40A
• Min. Breaker Size: 37A
• Decibel Level: 65 dBA
• Tonnage: 4 Ton
• Liquid Line: 1/4 inch (6)
• Suction Line: 3/8 inch (4); 1/2 inch (2)
• Electrical: 208/230V, 1 Phase, 60 Hz
• Warranty: 12 year compressor, 7 year parts with online registration
