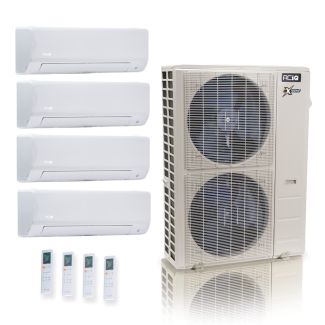

ACIQ ACIQ-48Z-HH-M6C 48,000 BTU ACIQ Extreme 4 Zone Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 18

Product Description

The ACIQ ACIQ-48Z-HH-M6C is a 48,000 BTU mini split heat pump system designed for efficient multi-zone heating and cooling. This model supports installation in multiple zones, making it suitable for both residential and commercial applications. The system operates on R454B refrigerant and is rated at 23 SEER2, ensuring excellent energy efficiency. It includes multiple air handlers that can provide heating and cooling as needed

• Low ambient heating capability
• Heat pump technology for year-round comfort
• Energy Star rated for superior efficiency

Product Highlights

This system is ideal for areas needing effective temperature control across several zones. Suitable for home renovations or new builds, the ACIQ-48Z-HH-M6C provides reliable performance.

Product Information

Standard Information

• Brand: ACIQ
• MPN: ACIQ-48Z-HH-M6C

Technical Specifications

• Refrigerant Charge: 151.68 oz.
• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• AHRI Certificate Number: 216032370
• SEER2 Rating: 23
• Electrical Requirements: 208/230V, 1 Phase, 60 Hz
• Compressor Type: Twin Rotary
• Warranty: 12 year compressor, 7 year parts
