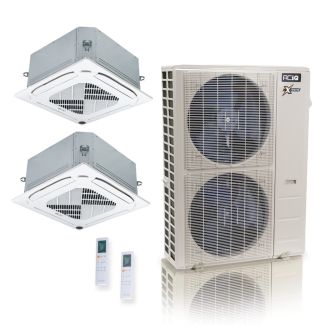

ACIQ ACIQ-48Z-HH-M6C 48,000 BTU ACiQ Extreme 23 SEER2 Dual Zone Ceiling Cassette Mini Split Heat Pump System - R454B | 230V - 12 + 24

Product Description

The ACiQ ACIQ-48Z-HH-M6C is a 48,000 BTU dual zone ceiling cassette mini split heat pump system designed to efficiently provide heating and cooling. This system operates on R454B refrigerant and is rated at 23 SEER2, ensuring energy-efficient performance. It includes two air handlers of 12,000 BTU and 24,000 BTU for effective climate control across multiple zones.

• Dual zone capability with multiple airflow options
• Energy-efficient with a high SEER2 rating
• Includes wireless controller for easy operation

Product Highlights

This unit is ideal for residential and commercial applications, providing reliable heating and cooling with low ambient heating capabilities.

Product Information

Standard Information

• Manufacturer: ACIQ
• Weight: 41.89 lbs

Technical Specifications

• Cooling BTU: 48,000 BTU
• Heating BTU: 49,000 BTU
• Maximum CFM: 4503
• Decibel Level (dBA): 65
• Electric Heat: Heat Pump
• Energy Star: Yes
• SEER2: 23
• Compressor Type: Twin Rotary
• Liquid Line: 1/4 inch (6)
• Suction Line: 3/8 inch (4); 1/2 inch (2)
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 40A
• Warranty: 12 year compressor, 7 year parts with online registration
