ACIQ ACIQ-48Z-HH-M6C 48,000 BTU ACIQ Extreme 23 SEER2 4 Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Product Description

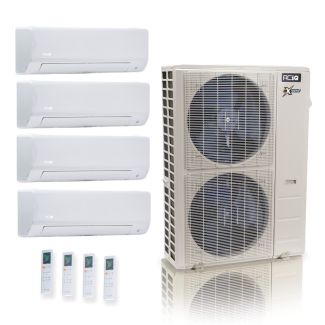

The ACIQ 48,000 BTU Mini Split Heat Pump System, model ACIQ-48Z-HH-M6C, is suitable for multi-zone applications. This system operates with a high efficiency of 23 SEER2 and is designed for installation in residential and commercial settings. It includes four indoor units of different capacities, specifically one unit of 6,000 BTU, one of 12,000 BTU, one of 24,000 BTU, and a 48,000 BTU outdoor unit. The ACIQ system utilizes R454B refrigerant and functions at a voltage of 230V.

• Includes a 48,000 BTU outdoor unit
• Four compatible indoor air handlers
• Energy-efficient operation with 23 SEER2 rating

Product Highlights

Suitable for cooling and heating environments efficiently, equipped with WiFi capability for remote management.

Product Information

Standard Information

• Brand: ACIQ
• MPN: ACIQ-48Z-HH-M6C

Technical Specifications

• Cooling BTU: 48,000 BTU
• Heating BTU: 49,000 BTU
• Maximum CFM: 4503
• Decibel Level (dBA): 65
• Refrigerant: R454B
• Electrical Requirement: 208/230V, Single Phase, 60 Hz
• Dimensions (Height): 52.48 inches
• Dimensions (Width): 37.48 inches
• Dimensions (Depth): 16.34 inches
• Warranty: 12 year compressor, 7 year parts with online registration
