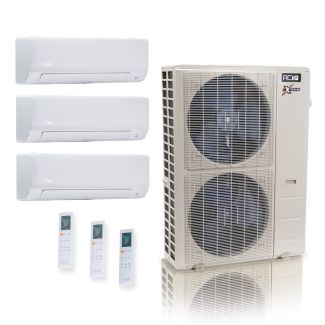

ACIQ ACIQ-48Z-HH-M6C 48,000 BTU ACIQ Extreme 23 SEER2 3 Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Product Description

The ACIQ ACIQ-48Z-HH-M6C is a powerful 48,000 BTU mini-split heat pump condenser system. This model operates at a high efficiency rate of 23 SEER2, making it suitable for multi-zone applications. The system uses R454B refrigerant and connects to wall-mounted air handlers for optimal climate control.

• Cooling Capacity: 47,000 BTU
• Heating Capacity: 49,000 BTU
• AHRI Certified for reliability

Product Highlights

Designed for multi-zone heating and cooling, this system is equipped with a twin rotary compressor and features low ambient heating. The unit operates with minimal noise and is suitable for residential and commercial applications.

Product Information

Standard Information

• Refrigerant Charge: 151.68 ounces
• Weight: 276.68 pounds

Technical Specifications

• Manufacturer: ACIQ
• Replaces: ACIQ-48Z-HH-M5B
• Max Breaker Size: 40 amps
• Min. Breaker Size: 37 amps
• Electric Heat: Heat Pump
• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Maximum CFM: 4503
