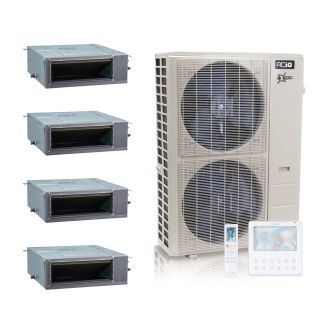

ACIQ ACiQ-48Z-HH-M6C 48,000 BTU ACiQ Extreme 20.4 SEER2 4 Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V

Product Description

The ACiQ Extreme 48,000 BTU Mini Split Heat Pump System, model ACiQ-48Z-HH-M6C, is designed for energy-efficient cooling and heating in multi-zone applications. This unit operates with a high efficiency rating of 20.4 SEER2 and utilizes R454B refrigerant for optimal performance.

• Multi-zone capability offering flexible installation options.
• Quiet operation with noise levels as low as 65 decibels.
• Includes advanced heating functions for low ambient conditions.

Product Highlights

This heat pump system is suitable for various spaces and offers reliable temperature control throughout the year.

Product Information

Standard Information

• Manufacturer: ACiQ
• Warranty: 12 year compressor, 7 year parts with online registration

Technical Specifications

• Cooling BTU: 47,000 BTU
• Heating BTU: 49,000 BTU
• Maximum CFM: 4503
• Electrical: 208/230V, 1 Phase, 60 Hz
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch (4); 1/2 inch (2)
• Height: 52.48 inches
• Width: 37.48 inches
• Depth: 16.34 inches
