Aciq Aciq-48-HPD / Aciq-60-ACL-B 4 Ton High Efficiency Central Heat Pump 24.5 inches Multi-Positional Coil (Aciq-60-ACL-B)

Product Description

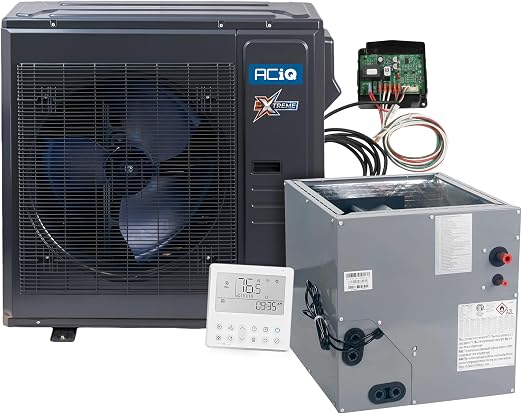

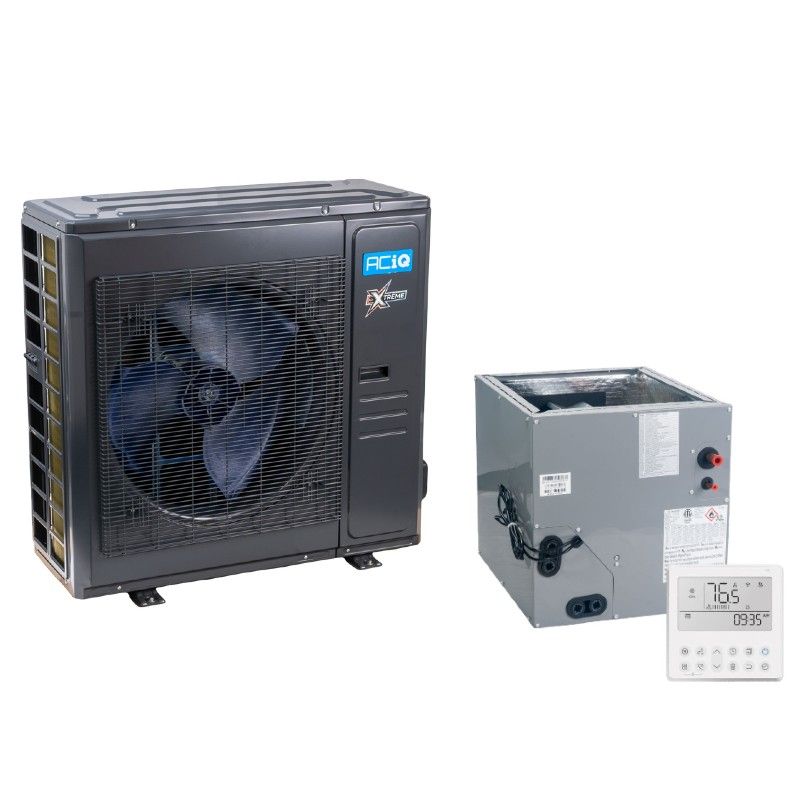

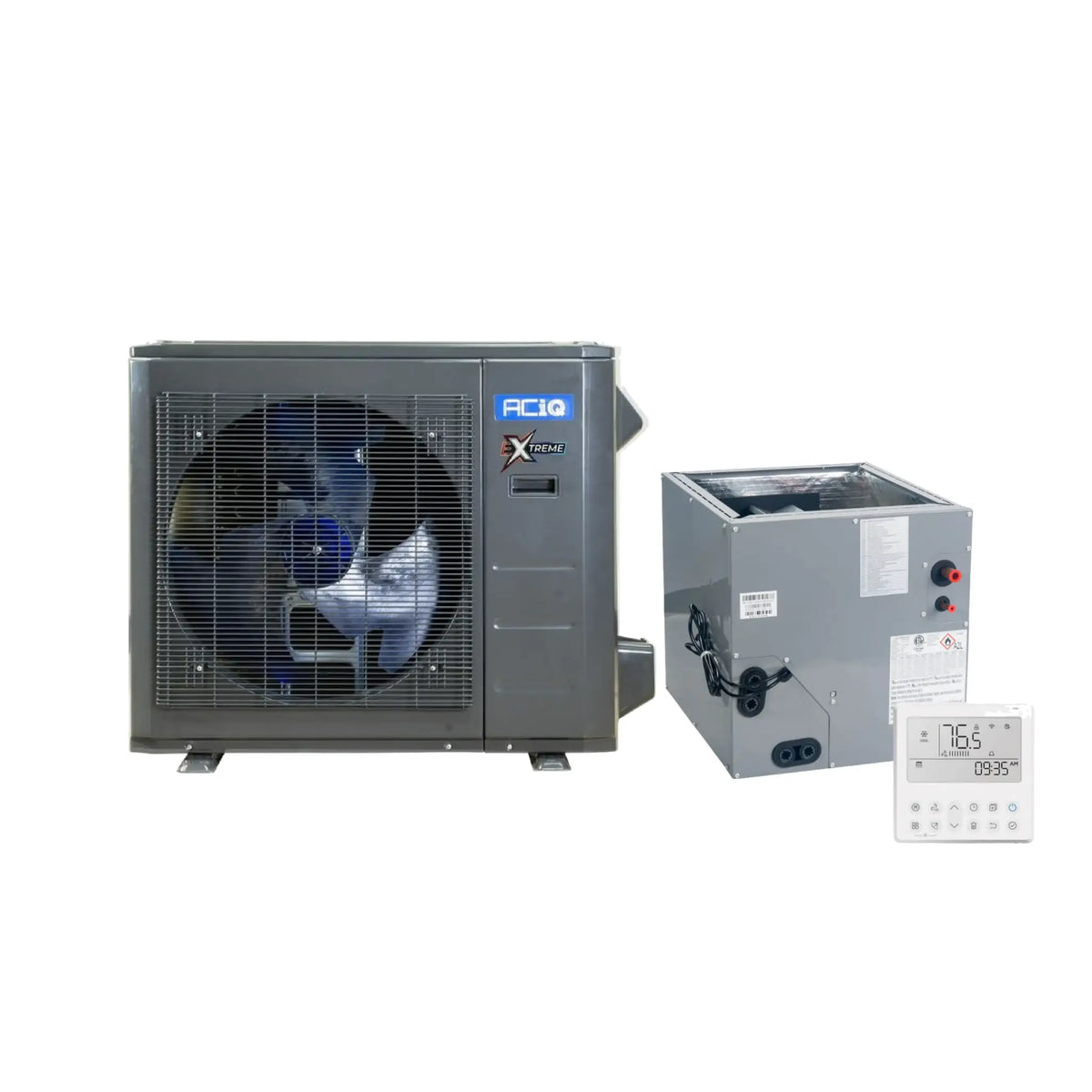

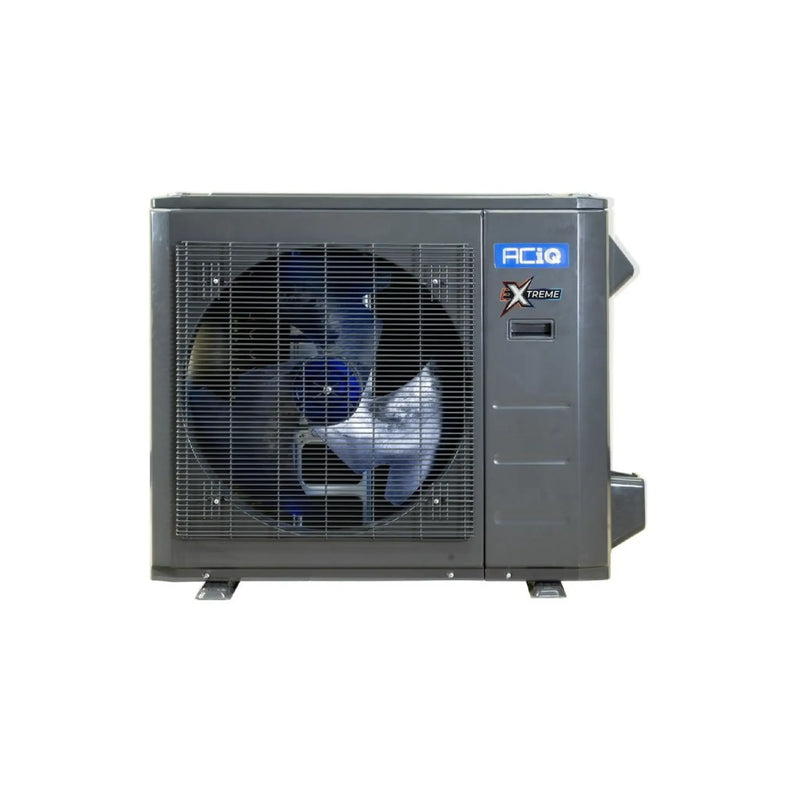

The Aciq ACIQ-48-HPD / ACIQ-60-ACL-B is a 4-ton inverter variable-capacity central heat pump package that pairs the ACIQ-48-HPD condenser with a 24.5-inch multi-positional cased A-coil. The system provides 48,000 BTU cooling and 50,000 BTU heating, uses low-GWP R454B refrigerant, operates on 208/230V 1-phase 60 Hz, and delivers extreme-heat performance down to -22°F. The coil includes a factory-installed TXV and the condenser features variable-speed operation and gold-fin coating.

• Inverter variable-capacity compressor with variable-speed condenser for adaptive load matching and reduced short-cycling
• Extreme-heat operation down to -22°F with wide ambient range (-22°F to 122°F cooling; -22°F to 75°F heating)

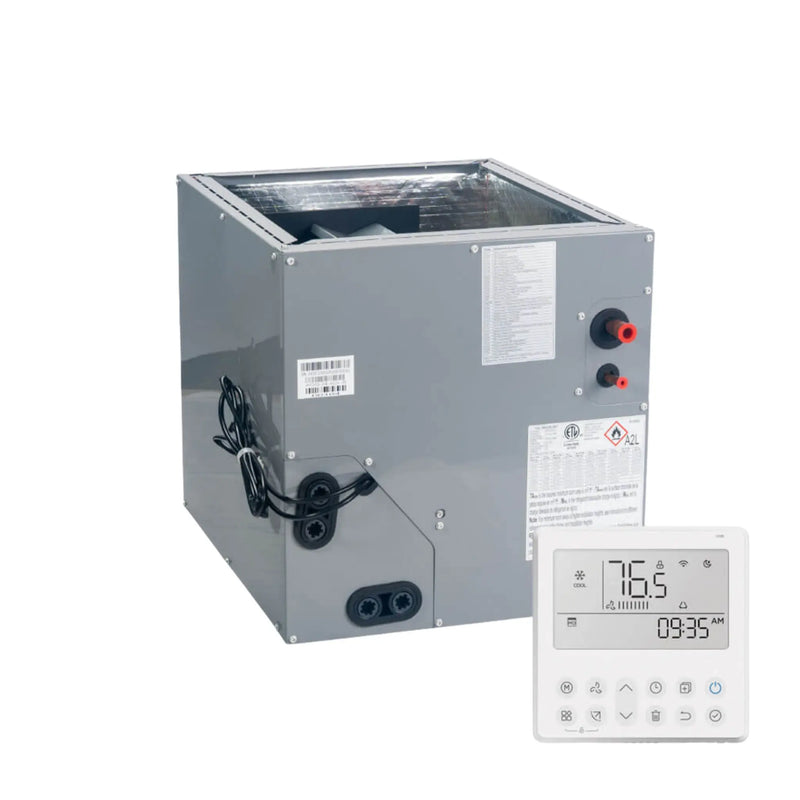

• 24.5-inch multi-positional A-coil with factory-installed TXV and R454B low-GWP refrigerant

Product Highlights

4-ton inverter heat pump package with 48,000 BTU cooling / 50,000 BTU heating, R454B refrigerant, multi-positional 24.5" A-coil with TXV, variable-speed condenser, 65 dBA sound level.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-HPD / ACIQ-60-ACL-B

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: ACIQ-48-HPD / ACIQ-60-ACL-B
• ASIN: B0GZ7ZG64F
• Tonnage: 4 Ton (condenser) / 5 Ton (coil) - NOTE: condenser and coil tonnage mismatch; verify matched pairing
• Cooling Capacity (BTU): 48,000 BTU
• Heating Capacity (BTU): 50,000 BTU
• SEER2: 16.5
• EER2: 10.5
• HSPF2: 9.5
• Compressor Type: Variable inverter twin rotary
• Condenser Stages: Variable Speed
• Refrigerant: R454B
• Refrigerant Charge (condenser): 134.04 oz.
• Factory Precharged Line Length: Up to ~15 ft (noted in some sources)
• Liquid Valve Size: 3/8"
• Suction Valve Size: 3/4"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 40 Amps
• Min Breaker Size: 38 Amps
• Maximum CFM: 3037.1
• Sound Level: 65 dBA
• Operating Temperature Range (Cooling): -22°F to 122°F
• Operating Temperature Range (Heating): -22°F to 75°F
• Zone Compatibility: Single Zone
• Condenser Dimensions (H x W x D): 38.39" x 38.58" x 16.34"
• Coil Dimensions (H x W x D): 28" x 24.5" x 21"
• Condenser Weight: 232.36 lbs
• Coil Weight: 92.00 lbs
• Certification: UL Listed
• Coil Style: Multi-positional 24.5" A-coil with factory-installed TXV
• Included Components: Outdoor heat pump condenser (ACIQ-48-HPD) and indoor cased evaporator coil (ACIQ-60-ACL-B); some listings note a non-programmable 1H/1C thermostat included
• Notes: Durable gold-fin coil coating; self-cleaning condenser fan reversal; designed for ducted applications; intended for installation by licensed HVAC technicians
