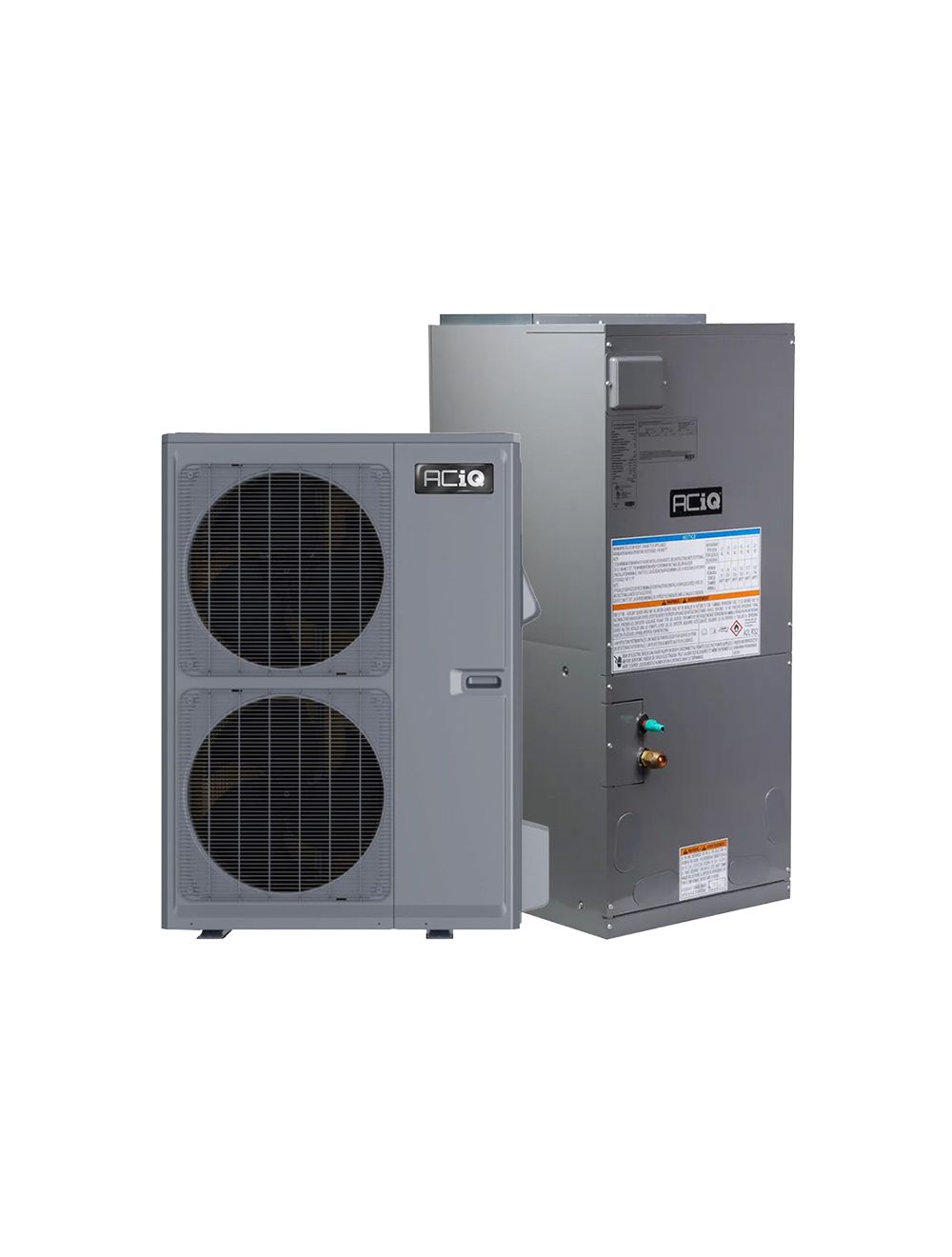

Aciq Aciq-48-HP32 / Aciq-48-AH32 4 Ton Split Heat Pump (4 Ton)

Product Description

ACIQ ACIQ-48-HP32 / ACIQ-48-AH32 is a 4 ton split inverter heat pump system consisting of an outdoor condenser (ACIQ-48-HP32) and an indoor air handler (ACIQ-48-AH32). The system uses R32 refrigerant, is rated 19 SEER2, and is designed for ducted applications compatible with 24V thermostats. It provides cooling from 5°F to 129°F outdoor and heating from -22°F to 75°F outdoor and carries AHRI number 215387240.

• Inverter heat pump split system with outdoor condenser ACIQ-48-HP32 and indoor air handler ACIQ-48-AH32 for ducted applications
• High efficiency 19 SEER2 rating using R32 refrigerant; compatible with 24V thermostats; variable DC blower and advanced inverter technology
• Wide operating range: cooling 5°F to 129°F outdoor, heating -22°F to 75°F outdoor; Gold Fin condenser coil; mobile-home approved

Product Highlights

4 ton inverter heat pump split system, 19 SEER2 efficiency, R32 refrigerant, wide outdoor operating range, AHRI certified

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-HP32 / ACIQ-48-AH32

Technical Specifications

• Brand: ACIQ
• MPN: ACIQ-48-HP32 / ACIQ-48-AH32
• System Type: 4 Ton split heat pump (condenser and air handler)
• Condenser Model: ACIQ-48-HP32
• Air Handler Model: ACIQ-48-AH32
• SEER2 Rating: 19 SEER2
• Refrigerant: R32
• Cooling Range (Outdoor): 5°F to 129°F
• Heating Range (Outdoor): -22°F to 75°F
• Condenser Dimensions: 40.67" W x 17.44" D x 55.32" H
• Air Handler Dimensions: 24.8" W x 21.26" D x 51.97" H
• AHRI Number: 215387240
• Compatible Thermostat: 24V
• Features: Inverter technology, variable DC blower, Gold Fin condenser coil coating, quiet operation, mobile-home approved
• Category: 3.5 Ton - 5.0 Ton
• Condition: New
