Aciq Aciq-48-EHPD / Aciq-60-ACL-B 4 Ton 14.8 SEER2 Central Heat Pump with 24.5 inches Multi-Positional Cased Coil (R454B) Replaces Aciq-48-EHPB

Product Description

Aciq ACIQ-48-EHPD / ACIQ-60-ACL-B is a 4-ton inverter-driven central heat pump package that includes a 24.5" multi-positional cased A-coil. The inverter variable-speed compressor provides 12,000–48,000 BTU output and operates with low-GWP R454B refrigerant; condenser ratings include SEER2 16, EER2 10.0, and HSPF2 8.5. The system supports ducted installations, features a factory-installed TXV on the coil, a self-cleaning condenser cycle, and is rated for outdoor operation down to -13°F.

• Inverter variable-speed compressor delivering 12,000–48,000 BTU; condenser SEER2 16, EER2 10.0, HSPF2 8.5
• Packaged with 24.5" multi-positional A-coil (factory-installed TXV); coil rated for 5 ton and UL listed
• Uses R454B refrigerant; condenser features learning condenser logic, gold fin coating, and self-cleaning condenser cycle

Product Highlights

4-ton inverter heat pump package with R454B refrigerant and 24.5" multi-positional cased A-coil (factory TXV); SEER2 16, rated for outdoor heating to -13°F.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-EHPD / ACIQ-60-ACL-B

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-EHPD / ACIQ-60-ACL-B
• Replaces: ACIQ-48-EHPB

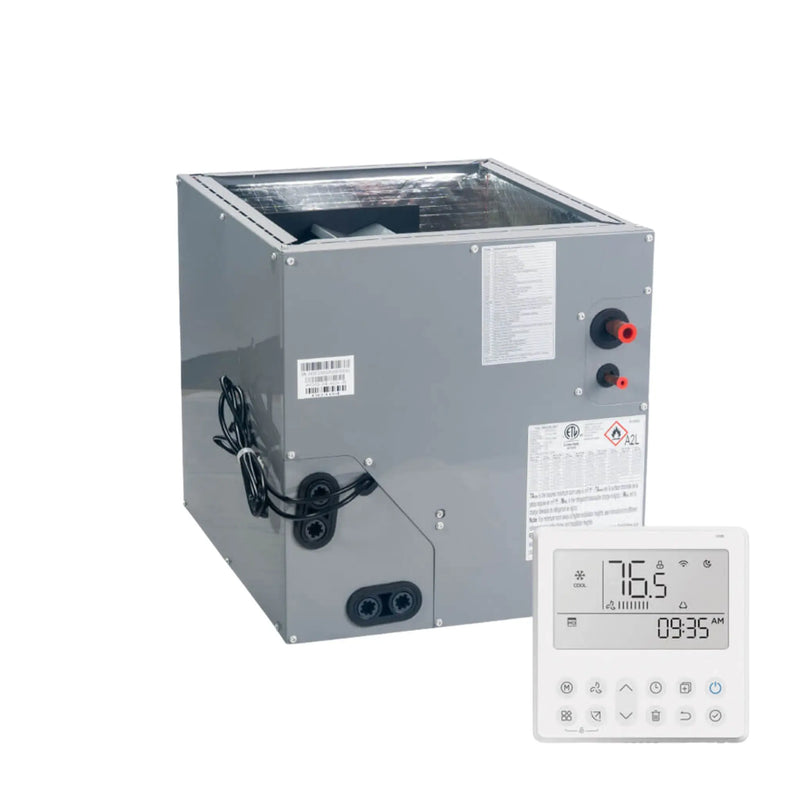

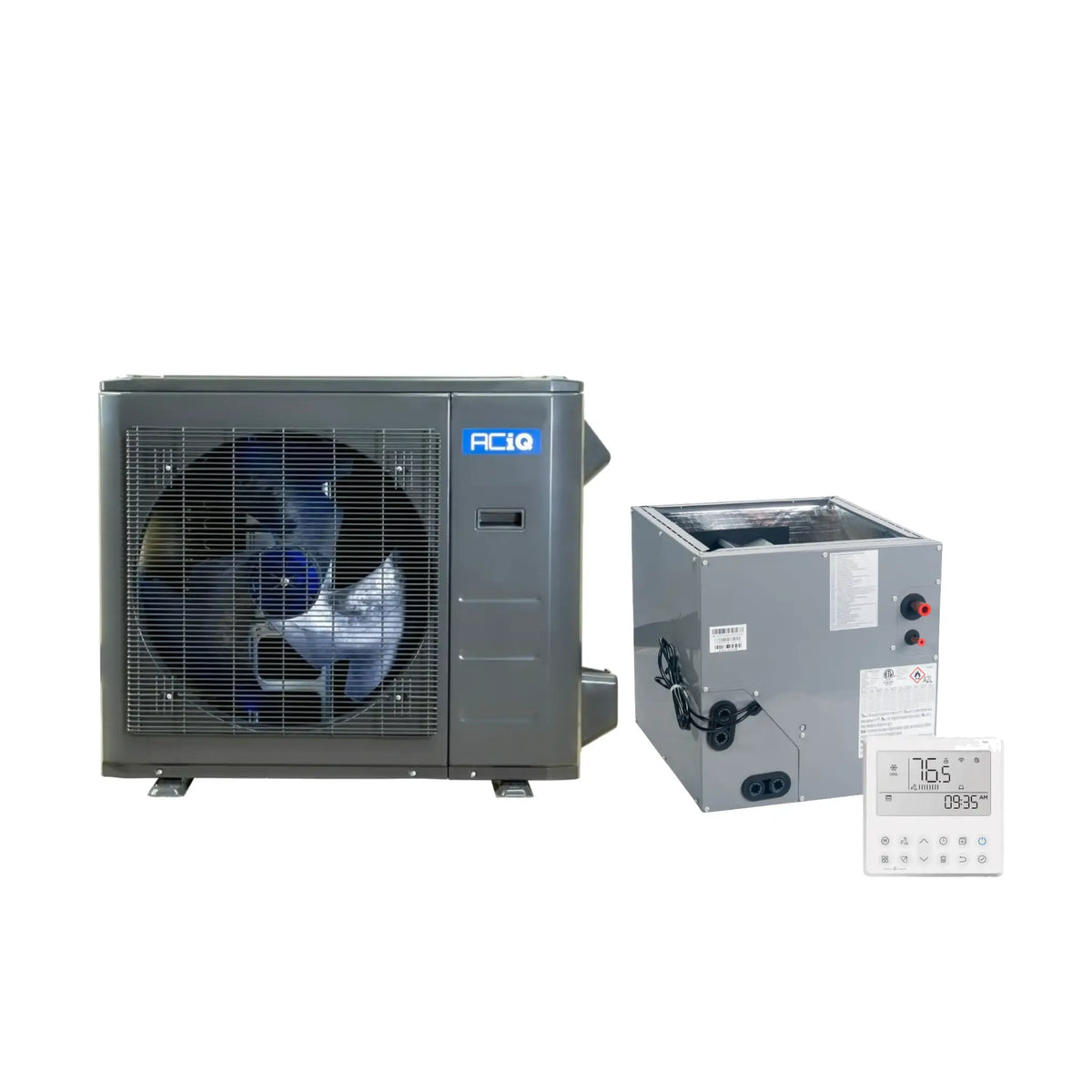

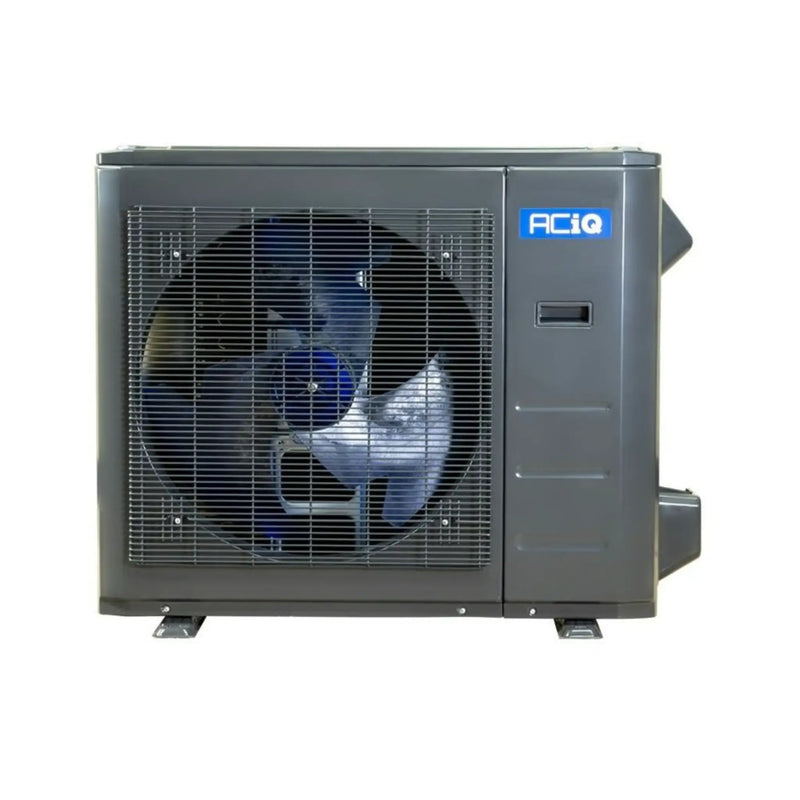

• Package Includes: ACIQ-48-EHPD 4 Ton inverter heat pump condenser and ACIQ-60-ACL-B 24.5" multi-positional cased evaporator A-coil
• Cooling Capacity (BTU): 48,000 BTU
• Heating Capacity (BTU): 48,000 BTU
• SEER2: 16
• EER2: 10.0
• HSPF2: 8.5
• Compressor Type: Variable inverter twin rotary
• Condenser Stages: Variable speed
• Refrigerant: R454B
• Refrigerant Charge: 134.04 oz.
• Maximum CFM: 3037.1
• Sound Level (dBA): 65
• Input Voltage: 208/230V, 1 Phase, 60 Hz
• Phase: Single phase
• Min Breaker Size: 36 Amps
• Max Breaker Size: 40 Amps
• Tonnage (Condenser): 4 Ton
• Coil Tonnage: 5 Ton
• Coil Configuration: Multi-positional A-coil (cased)
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 28" x 24.5" x 21"
• Coil Certification: UL Listed
• Condenser Dimensions (H x W x D): 38.39" x 38.58" x 16.34"
• Condenser Weight: 224.21 lbs
• Coil Weight: 92 lbs
• Factory Installed TXV: Yes (on coil)
• Operating Temperature Range (Heating): -13°F to 75°F
• Operating Temperature Range (Cooling): -13°F to 122°F
• Mounting / Application: Ducted system; requires compatible indoor blower/air handler or furnace
• Notes: Self-cleaning condenser cycle; durable gold fin coil coating; package may be precharged for up to approximately 15 ft line set
