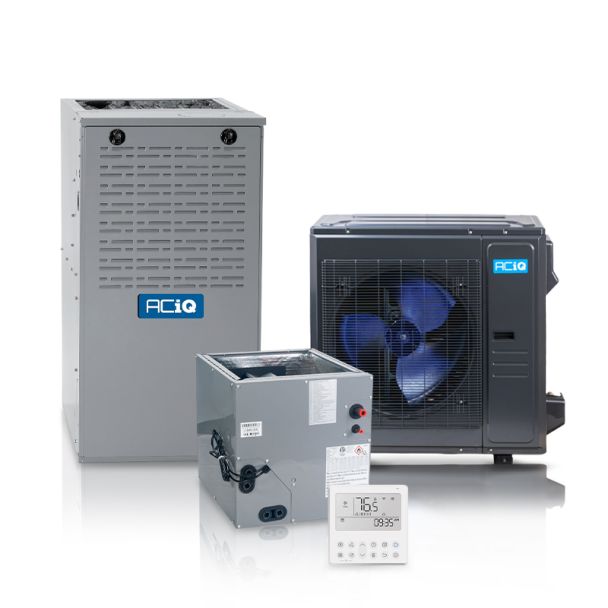

Aciq Aciq-48-EHPD / Aciq-48-ACL-B / G80CTL0702120A Hybrid 4 Ton Inverter Heat Pump and 66,000 BTU Furnace (4 Ton) G80CTL0702120A

Product Description

The ACIQ ACIQ-48-EHPD / ACIQ-48-ACL-B / G80CTL0702120A is a hybrid HVAC system that pairs a 4-ton inverter heat pump condenser, a multi-positional A-coil, and an 80% AFUE gas furnace with 66,000 BTU input. The inverter heat pump provides variable output (12,000 to 48,000 BTU) using R454B refrigerant with SEER2 16 and HSPF2 8.5. The furnace features a variable-speed ECM blower, two-stage burner, and field-convertible fuel option, and the system is intended for ducted applications with metal flue venting.

• Inverter heat pump condenser: 4 ton, 48,000 BTU cooling/heating, R454B refrigerant, SEER2 16, HSPF2 8.5, rotary compressor
• Evaporator coil: 4-ton multi-positional A-coil with factory-installed TXV; 3/8" liquid and 3/4" suction connections
• Furnace: 66,000 BTU input, 80% AFUE, variable-speed ECM blower, two-stage burner, upflow/downflow/horizontal configuration

Product Highlights

Complete hybrid package: 4-ton inverter heat pump (R454B) + multi-positional A-coil + 80% AFUE 66,000 BTU gas furnace for ducted installations

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-EHPD / ACIQ-48-ACL-B / G80CTL0702120A

Technical Specifications

• Brand: ACIQ
• Included Models: ACIQ-48-EHPD / ACIQ-48-ACL-B / G80CTL0702120A
• System Type: Hybrid heat pump and gas furnace system
• Condenser Model: ACIQ-48-EHPD
• Condenser Cooling Capacity: 48,000 BTU
• Condenser Heating Capacity: 48,000 BTU
• Condenser Tonnage: 4 Ton
• Condenser Refrigerant: R454B
• Condenser Refrigerant Charge: 134.04 oz.
• Condenser SEER2: 16
• Condenser EER2: 10.0
• Condenser HSPF2: 8.5
• Condenser Compressor Type: Rotary
• Condenser Max CFM: 3037.1
• Condenser Sound Level: 65 dBA
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Min Breaker Size: 36 Amps
• Condenser Max Breaker Size: 40 Amps
• Condenser Operating Range (Heating): -13°F to 75°F
• Condenser Operating Range (Cooling): -13°F to 122°F
• Condenser Dimensions (H x W x D): 38.39" x 38.58" x 16.34"
• Condenser Weight: 224.21 lbs
• Coil Model: ACIQ-48-ACL-B
• Coil Type: Multi-positional A-coil
• Coil Tonnage: 4 Ton
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Refrigerant: R454B
• Coil Configuration: Multi-positional
• Coil Height: 27 3/4"
• Coil Width: 21 5/8"
• Coil Depth: 21 1/2"
• Coil Weight: 115.00 lbs
• Coil Certification: UL Listed
• Coil Features: Factory-installed thermostatic expansion valve (TXV)
• Furnace Model: G80CTL0702120A
• Furnace Input (BTU): 66,000
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal
• Furnace Blower Motor: Variable speed ECM
• Furnace Max CFM: 2150
• Furnace Electrical: 115V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field convertible to propane with optional kit)
• Furnace Exhaust Flue Requirement: Metal
• Furnace Dimensions (H x W x D): 33 1/3" x 21" x 29"
• Furnace Weight: 146.00 lbs
• Furnace AHRI Certificate Number: 213148662
• System Notes: Requires metal flue vent piping for furnace; coil must be used with compatible condenser and blower/furnace
