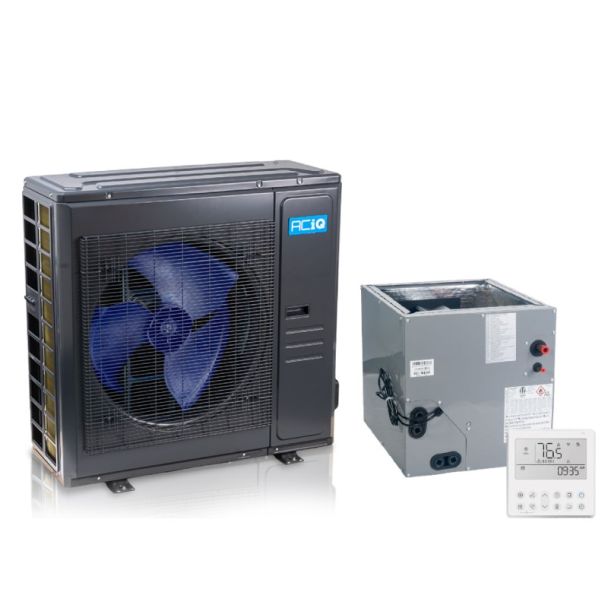

Aciq Aciq-48-EHPD 4 Ton High Efficiency Central Heat Pump 21 inches Coil Aciq-48-ACL-B

Product Description

Aciq ACIQ-48-EHPD paired with ACIQ-48-ACL-B is a 4 ton inverter central heat pump system that provides heating and cooling with variable compressor speed and a 21" multi-positional cased evaporator coil. The system uses R454B refrigerant, delivers 48,000 BTU capacity, and is rated at 16 SEER2 and HSPF2 8.5. It supports upflow, downflow, and horizontal coil orientations and operates on 208/230V single-phase power.

• Inverter variable-speed rotary compressor with adaptive sizing for precise temperature control
• Refrigerant: R454B; electrical: 208/230V, 1 phase, 60 Hz; condenser refrigerant charge 134.04 oz
• 21" multi-positional A-coil with factory-installed TXV, 3/8" liquid line and 3/4" suction line

Product Highlights

4 ton (48,000 BTU) inverter heat pump, 16 SEER2, R454B refrigerant, 21" multi-positional cased coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-EHPD / ACIQ-48-ACL-B

Technical Specifications

• Brand: Aciq
• Model / MPN: ACIQ-48-EHPD / ACIQ-48-ACL-B
• Product ID: 208302
• Included Components: Condenser (ACIQ-48-EHPD) and 21" multi-positional evaporator cased coil (ACIQ-48-ACL-B)
• Cooling Capacity (BTU/h): 48,000 BTU
• Heating Capacity (BTU/h): 48,000 BTU
• Tonnage: 4 Ton
• SEER2: 16
• EER2: 10.0
• HSPF2: 8.5
• Refrigerant: R454B
• Refrigerant Charge: 134.04 oz
• Compressor Type: Rotary (Variable Speed)
• Maximum Airflow (CFM): 3037.1
• Sound Level (dBA): 65
• Electrical Supply: 208/230V, 1 Phase, 60 Hz
• Phase: Single Phase
• Minimum Breaker Size: 36 Amps
• Maximum Breaker Size: 40 Amps
• Operating Temperature Range (Cooling): -13°F to 122°F
• Operating Temperature Range (Heating): -13°F to 75°F
• Condenser Dimensions (H x W x D): 38.39" x 38.58" x 16.34"
• Condenser Weight: 224.21 lbs
• Coil Dimensions (H x W x D): 27.75" x 21.625" x 21.5"
• Coil Weight: 115.00 lbs
• Coil Configuration: Multi-Positional (A-Coil) - upflow, downflow, horizontal
• Coil Style: A-Coil
• Coil Certification: UL Listed
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
