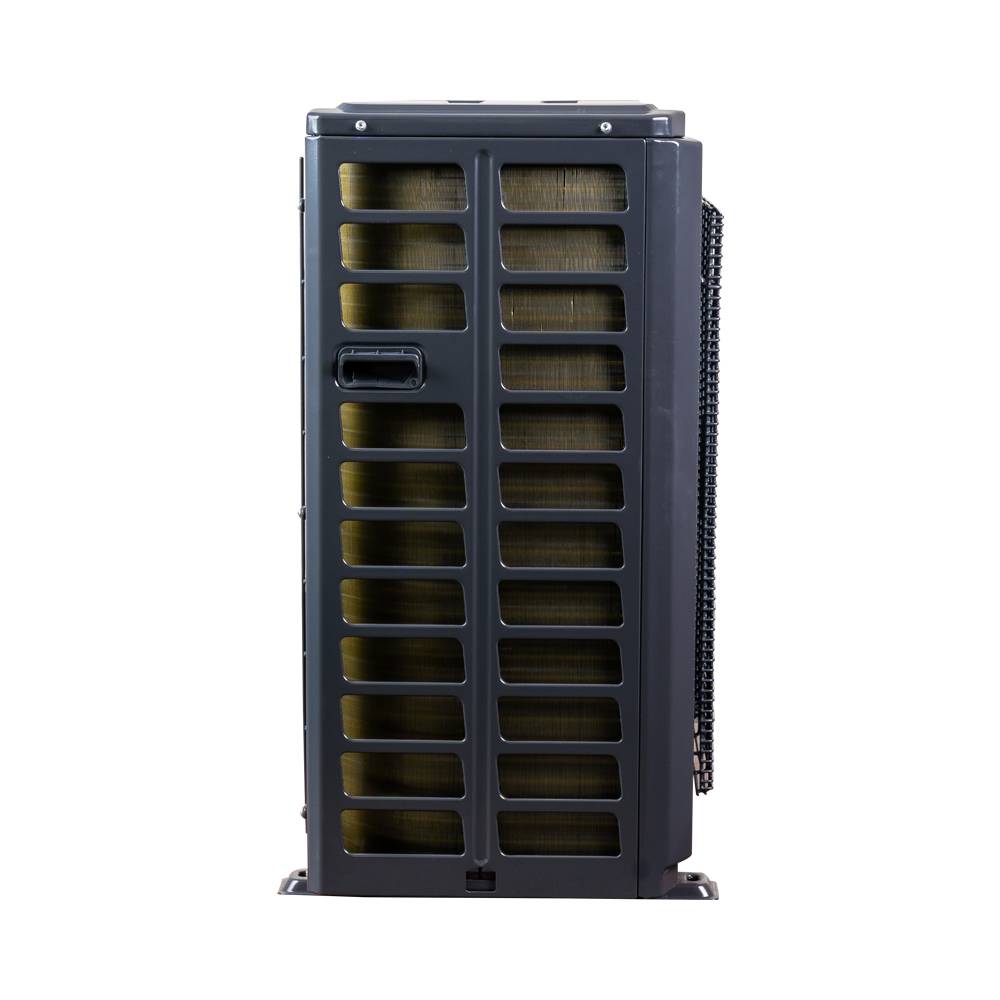

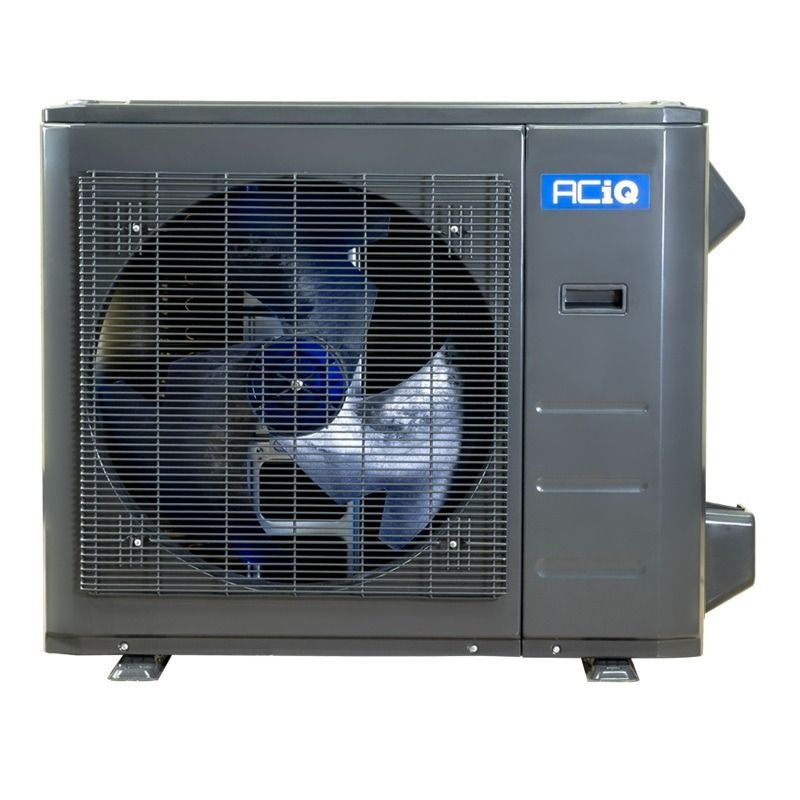

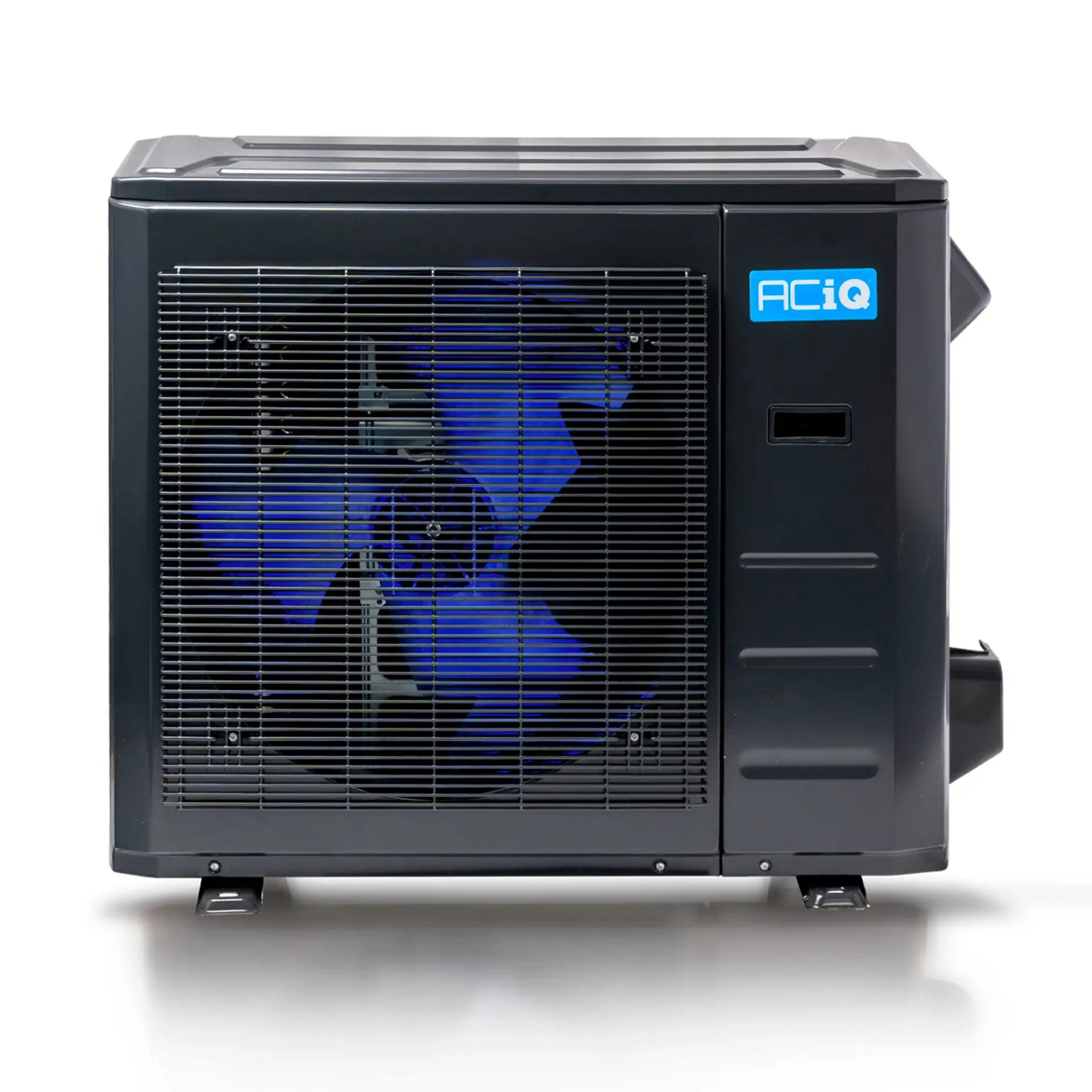

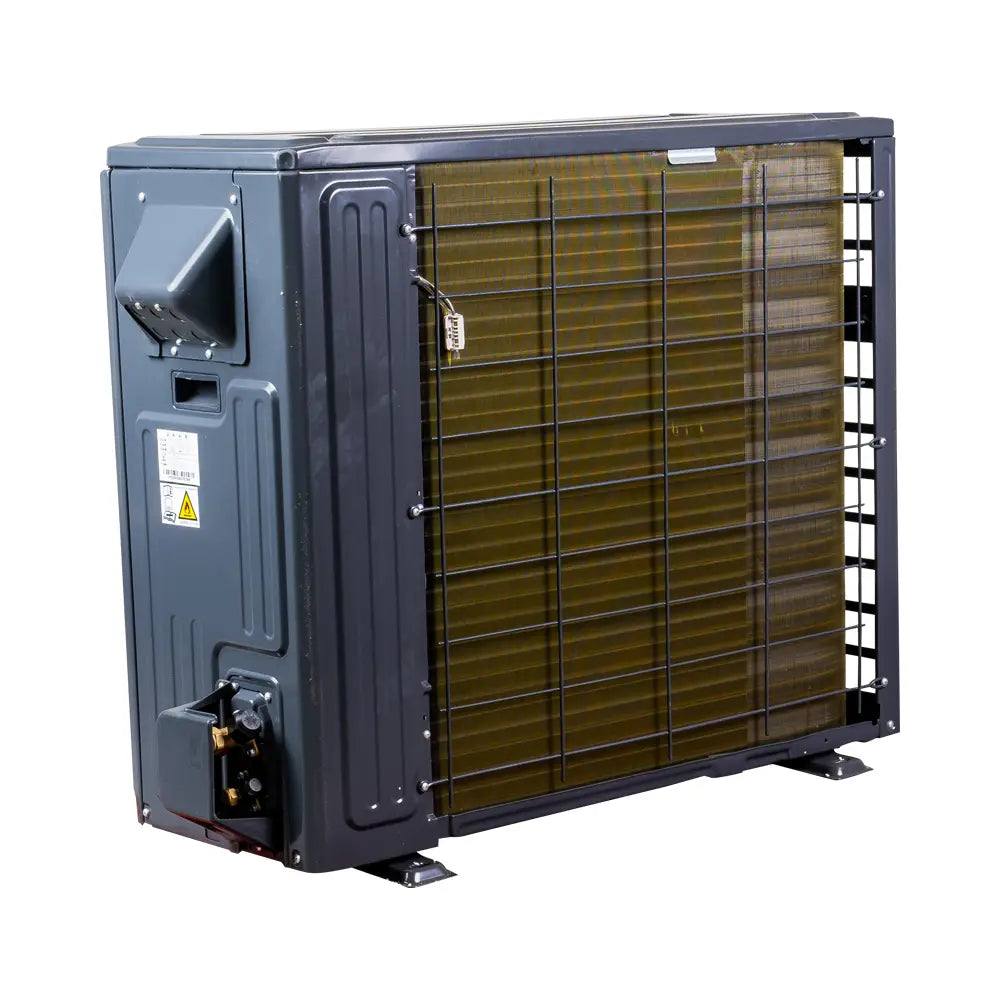

Aciq Aciq-48-AC-B 4 Ton Inverter Air Conditioner Condenser 48,000 Btu (4 Ton) Aciq-48-AC-B

Product Description

The Aciq ACIQ-48-AC-B is a 4 ton air conditioner condenser rated 15.3 SEER and 48,000 BTU, designed for central split systems using R454B refrigerant. It employs a variable inverter twin rotary compressor to modulate output and operates across a wide outdoor temperature range. The unit includes Gold Fin coil protection, leak detection, quiet operation at 65 dBA, and 208-230 V single-phase electrical configuration for residential and light commercial cooling.

• Variable inverter twin rotary compressor providing modulating output from partial to full load and 12,000–48,000 BTU range
• Pre-charged for R454B refrigerant with Gold Fin coil coating, self-cleaning fan reversal, and leak detection
• Electrical: 208-230 V, 1 Phase, 60 Hz; sound level 65 dBA; maximum airflow 3037 CFM; dimensions 38.58 x 16.34 x 38.39 in

Product Highlights

4 Ton condenser, 15.3 SEER, 48,000 BTU, R454B refrigerant, inverter rotary compressor

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48-AC-B

Technical Specifications

• Model Number: ACIQ-48-AC-B
• Tonnage: 4 Ton
• Cooling Capacity: 48,000 BTU
• Efficiency Rating: 15.3 SEER
• EER2: 9.8
• Compressor Type: Variable inverter twin rotary
• Refrigerant: R454B
• Input Voltage: 208-230 V, 1 Phase, 60 Hz
• Phase: Single Phase
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Maximum Airflow (CFM): 3037
• Sound Level (dBA): 65
• Operating Temperature Range: -13 to 122 F
• Condenser Stages: Variable Speed
• Maximum Breaker Size: 40 A
• Minimum Breaker Size: 36 A
• Dimensions (W x D x H): 38.58 x 16.34 x 38.39 in
• Weight: 187.17 lbs
• Operating Mode: Cooling
• Recommended Indoor Coil: ACiQ-48-ACL-B
