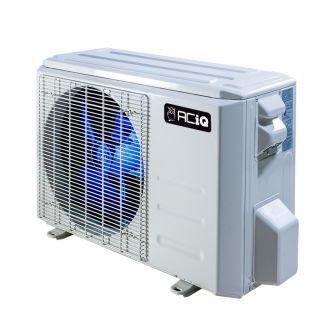

ACIQ ACIQ-36Z-HP230C 36,000 BTU ACiQ Standard Single Zone Mini Split Heat Pump Condenser - R454B | 230V

Product Description

The ACiQ ACIQ-36Z-HP230C is a mini split heat pump condenser rated at thirty-six thousand BTUs. This unit operates on 230 volts and uses R454B refrigerant, making it efficient for both heating and cooling.

• Cooling BTU: 36,000
• Heating BTU: 36,000
• HSPF: 8.5

Product Highlights

This mini split system is ideal for single zone installations. It ensures efficient heating and cooling while maintaining a low sound level of sixty point five decibels. Its high efficiency rating of eighteen SEER2 allows for decreased energy consumption.

Product Information

Standard Information

• Brand: ACiQ
• Weight: 160.27 lbs

Technical Specifications

• Refrigerant Charge: 112.88 oz.
• AHRI Certificate Number: 216032332
• Maximum CFM: 2235.3
• Decibel Level: 60.5 dBA
• Compressor Type: Rotary
• Liquid Line: 3/8 inches
• Suction Line: 5/8 inches
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 35 Amps
• Min. Breaker Size: 33.0 Amps
• Tonnage: 3 Ton
• Zone Compatibility: Single Zone
• Height: 31.89 inches
• Width: 37.24 inches
• Depth: 16.14 inches
• Warranty: 12 year compressor, 7 year parts with online registration
