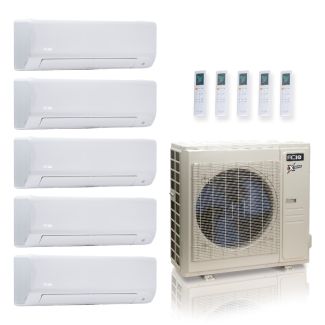

ACIQ ACIQ-36Z-HH-M5C 36,000 BTU Mini Split Heat Pump System R454B 230V

Product Description

The ACIQ ACIQ-36Z-HH-M5C is a 36,000 BTU mini split heat pump system. This unit operates at an impressive SEER2 rating of 23 and uses the environmentally friendly R454B refrigerant. It is designed for multi-zone applications with compatibility for five separate air handlers, allowing flexible heating and cooling of multiple areas.

• Includes up to five air handlers with various BTU ratings: 6,000, 9,000, 18,000 BTU.
• Supports low ambient heating down to minus twenty-two degrees Fahrenheit.
• Energy-efficient design with Energy Star certification.

Product Highlights

This system is well-suited for residential and commercial installations. It maximizes comfort while minimizing energy costs. The advanced twin rotary compressor enhances performance and reliability.

Product Information

Standard Information

• Brand: ACIQ
• Type: Mini Split Heat Pump System

Technical Specifications

• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• SEER2: 23
• Refrigerant Type: R454B
• Electrical Requirements: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 40A
• Electric Heat Type: Heat Pump
• Compressor Type: Twin Rotary
• Noise Level: 65 dBA
• Warranty: 12 year compressor, 7 year parts with online registration
• Ambient Temperature Range: -22 to 122 degrees Fahrenheit
• Dimensions (H x W x D): 38.39 inches x 38.58 inches x 16.34 inches
