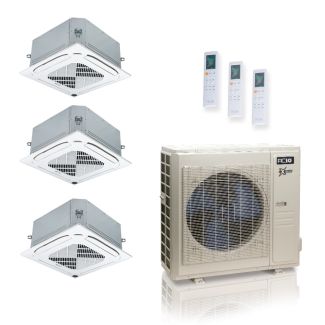

ACIQ ACiQ-36Z-HH-M5C 36,000 BTU ACiQ Extreme 23 SEER2 3 Zone Ceiling Cassette Mini Split Heat Pump System - R454B

Product Description

The ACiQ-36Z-HH-M5C by ACiQ is a 36,000 BTU mini split heat pump system designed to provide efficient heating and cooling across three zones. This unit features a 23 SEER2 rating, making it a highly energy-efficient choice for residential or commercial applications. It operates on R454B refrigerant and is suitable for 230V electrical systems.

• Includes three air handlers: 9,000 BTU, 12,000 BTU, and 24,000 BTU units
• Remote control operation with WiFi capability
• Multi-zone compatibility for customized climate control

Product Highlights

This system offers low ambient heating and high cooling efficiency, ideal for varied climate conditions.

Product Information

Standard Information

• Brand: ACiQ
• MPN: ACiQ-36Z-HH-M5C

Technical Specifications

• Cooling BTU: 36,000 BTU
• Heating BTU: 36,000 BTU
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60Hz
• Maximum CFM: 3037
• Decibel Level: 65 dBA
• Warranty: 12 year compressor, 7 year parts with registration
• Height: 38.39 inches
• Width: 38.58 inches
• Depth: 16.34 inches
• Ambient Temperature Range: -22 to 122 degrees Fahrenheit
