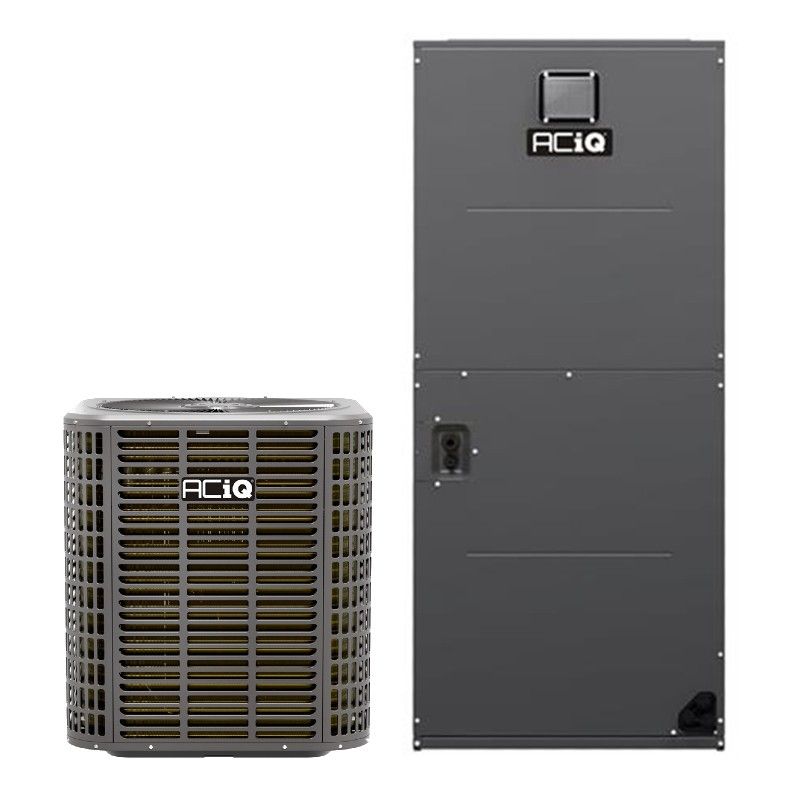

Aciq Aciq-36TD-HP32 3 Ton Central Heat Pump Split System 15.2 SEER2 (Upflow/Horizontal-Right) Aciq-36TD-AH32

Product Description

Aciq ACIQ-36TD-HP32 / ACIQ-36TD-AH32 is a 3 ton central heat pump split system featuring an inverter variable-speed rotary compressor and R32 refrigerant. The system provides 36,000 BTU cooling and heating capacity with SEER2 15.2, HSPF2 8.1, and EER2 9, and is rated for 208/230 V single-phase electrical service. The air handler supports upflow or horizontal-right installation and includes a multi-speed constant torque blower.

• 3 ton capacity (36,000 BTU) with SEER2 15.2, HSPF2 8.1, and EER2 9
• Pre-charged condenser with 88.2 oz R32 refrigerant and inverter variable-speed rotary compressor
• Air handler configurable for upflow or horizontal-right, multi-speed constant torque blower, optional electric heat kits

Product Highlights

3 ton R32 inverter heat pump split system; SEER2 15.2; upflow/horizontal-right air handler; 208/230 V single-phase.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36TD-HP32 / ACIQ-36TD-AH32

Technical Specifications

• Brand: Aciq
• Condenser MPN: ACIQ-36TD-HP32
• Air Handler MPN: ACIQ-36TD-AH32
• System Type: Central heat pump split system
• Cooling Capacity: 36,000 BTU (3 Ton)
• Heating Capacity: 36,000 BTU (3 Ton)
• SEER2: 15.2
• HSPF2: 8.1
• EER2: 9
• Refrigerant: R32 (A2L classification)
• Refrigerant Charge (Condenser): 88.2 oz
• Compressor Type: Rotary (variable-speed/inverter)
• Condenser Stages: Two Stage
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Phase: Single Phase
• Max Breaker Size (Condenser): 40 Amps
• Min Breaker Size (Condenser): 24 Amps
• Decibel Level (Condenser): 68 dBA
• Decibel Level (Air Handler): 58 dBA
• Air Handler Configuration: Upflow / Horizontal-Right
• Blower: Multi-speed constant torque blower
• Electric Heat: Optional electric heat kits for air handler
• Filter Size (Air Handler): 18" x 20"
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Liquid Valve Size (Condenser): 3/8"
• Suction Valve Size (Condenser): 3/4"
• Electrical Connection (Air Handler): Flare to Braze
• Condenser Dimensions (H x W x D): 24 15/16" x 29 1/8" x 29 1/8"
• Air Handler Dimensions (H x W x D): 46 1/2" x 21" x 21"
• Condenser Weight: 141.10 lbs
• Air Handler Weight: 160.90 lbs
• Ambient Temperature Range: -4°F to 125°F
• Min/Max Outdoor Temp for Heating: -4°F to 80°F
• Min/Max Outdoor Temp for Cooling: 5°F to 125°F
• Filter Drier: Included (field installed)
