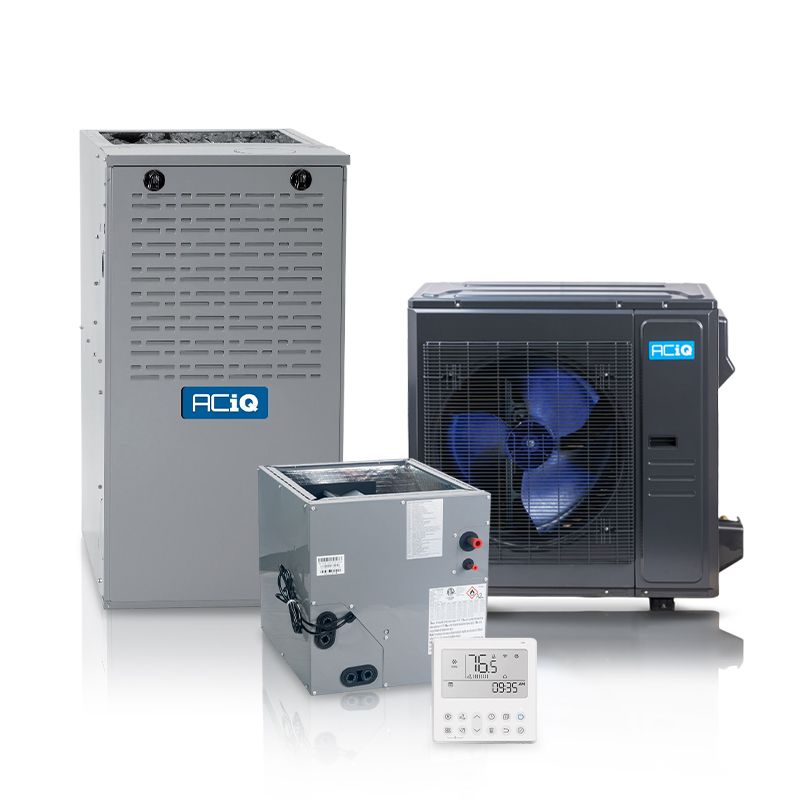

Aciq Aciq-36-HPD Hybrid Heat Pump System 36,000 BTU (3 Ton / Aciq-36-ACL-B / G80CTL0702120A)

Product Description

Aciq ACIQ-36-HPD with ACIQ-36-ACL-B and G80CTL0702120A is a complete 3 ton hybrid HVAC package combining a 36,000 BTU inverter heat pump and an 80% AFUE gas furnace. The heat pump uses R454B refrigerant, offers a variable BTU range (12,000 to 36,000 cooling / 12,000 to 37,000 heating), and operates down to -22°F. The furnace is multi-positional with a variable speed blower and two-stage burner.

• Inverter variable-capacity heat pump: 36,000 BTU cooling, SEER2 17.4, HSPF2 10.2, EER2 11.7; R454B refrigerant
• 80% AFUE gas furnace: 66,000 BTU input (53,000 BTU output), variable speed ECM blower, two-stage burner, multi-positional
• Factory-installed 3 ton evaporator coil with TXV, pre-charged refrigerant (126.99 oz.), and integrated base pan heater for low-temperature operation

Product Highlights

3 ton hybrid system with inverter heat pump, multi-positional 80% AFUE furnace, and factory-installed TXV coil; R454B refrigerant and low-temperature operation to -22°F.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-HPD / ACIQ-36-ACL-B / G80CTL0702120A

Technical Specifications

• Brand: ACIQ
• Model (package): ACIQ-36-HPD / ACIQ-36-ACL-B / G80CTL070212120A
• Furnace SKU: G80CTL070212
• Furnace Input BTU: 66,000
• Furnace Output BTU: 53,000 (at 80% AFUE)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two-stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Input Voltage: 115V, 1 phase, 60 Hz
• Furnace Dimensions (H x W x D): 33.3333" x 21" x 29"
• Furnace Weight: 146.00 lbs
• Heat Pump SKU: ACIQ-36-HPD
• Heat Pump Cooling BTU: 36,000 BTU
• Heat Pump Heating BTU: 37,000 BTU
• Heat Pump SEER2: 17.4
• Heat Pump HSPF2: 10.2
• Heat Pump EER2: 11.7
• Heat Pump Refrigerant: R454B
• Refrigerant: R454B
• Heat Pump Variable BTU Range: 12,000 - 36,000 BTU (cooling); 12,000 - 37,000 BTU (heating)
• Heat Pump Ambient Operating Range (heating): -22°F to 75°F
• Heat Pump Ambient Operating Range (cooling): -22°F to 122°F
• Heat Pump Compressor Type: Variable inverter twin rotary
• Heat Pump Input Voltage: 208/230V, 1 phase, 60 Hz
• Heat Pump Max Breaker Size: 35 Amps
• Heat Pump Min Breaker Size: 32 Amps
• Heat Pump Max CFM: 1189
• Heat Pump Decibel Level (dBA): 62.5
• Heat Pump Dimensions (H x W x D): 38.39" x 38.58" x 16.34"
• Heat Pump Weight: 235.23 lbs
• Coil SKU: ACIQ-36-ACL-B
• Coil Tonnage: 3 Ton
• Coil Configuration: Multi-positional
• Coil Liquid Line / Suction Line: 3/8" / 3/4"
• Coil Dimensions (H x W x D): 24" x 21" x 21"
• Coil Weight: 74.00 lbs
• Included Refrigerant Charge: 126.99 oz.
• System Notes: Package requires compatible blower/furnace and coil; some items sold as a kit with optional accessories
