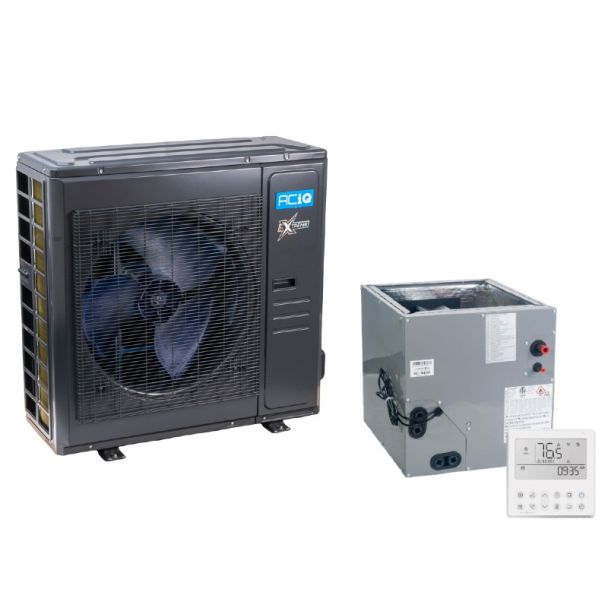

Aciq Aciq-36-HPD hybrid 3 ton 90,000 BTU (21 inches multi-positional coil Aciq-36-ACL-B) N80MSN0902116A

Product Description

Aciq ACIQ-36-HPD is a 3 ton inverter heat pump system packaged with the ACIQ-36-ACL-B 21" multi-positional evaporator coil and the N80MSN0902116A gas furnace. The heat pump uses R454B refrigerant and a variable inverter twin rotary compressor, providing 36,000 BTU cooling and 37,000 BTU heating with SEER2 17.4, HSPF2 10.2, and a refrigerant charge of 126.99 oz. Electrical: 208/230V, 1 phase, 60 Hz; max breaker 35 Amps.

• Variable inverter twin rotary compressor with R454B refrigerant; variable BTU output (12,000–36,000 cooling; 12,000–37,000 heating).
• 21" multi-positional evaporator cased coil (factory-installed TXV); liquid line 3/8", suction line 3/4"; UL listed.
• Includes multi-positional gas furnace N80MSN0902116A (88,000 BTU input, 80% AFUE) with multi-speed blower and field-convertible to propane with optional LP kit.

Product Highlights

3 ton inverter heat pump with R454B, SEER2 17.4 and HSPF2 10.2; 21" multi-positional A-coil with TXV; paired multi-positional 88k BTU 80% AFUE gas furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-HPD / ACIQ-36-ACL-B

Technical Specifications

• Brand: ACiQ
• Model/MPN: ACIQ-36-HPD / ACIQ-36-ACL-B / N80MSN0902116A
• Package Type: Heat pump + Coil + Furnace system (Hybrid)
• Heat Pump Cooling Capacity (BTU): 36,000 BTU
• Heat Pump Heating Capacity (BTU): 37,000 BTU
• Variable BTU Output: 12,000 - 36,000 BTU (cooling); 12,000 - 37,000 BTU (heating)
• SEER2: 17.4
• HSPF2: 10.2
• EER2: 11.7
• Refrigerant: R454B
• Refrigerant Charge: 126.99 oz.
• Compressor Type: Variable inverter twin rotary
• Maximum Airflow (Max CFM): 1189
• Sound Level: 62.5 dBA
• Input Voltage: 208/230V
• Frequency: 60 Hz
• Phase: Single Phase
• Max Breaker Size: 35 Amps
• Min Breaker Size: 32 Amps
• Condenser Height: 38.39 inches
• Condenser Width: 38.58 inches
• Condenser Depth: 16.34 inches
• Condenser Weight: 235.23 lbs
• Coil SKU: ACIQ-36-ACL-B
• Coil Type: 21" width multi-positional evaporator cased coil (A-coil)
• Coil Height: 24 inches
• Coil Width: 21 inches
• Coil Depth: 21 inches
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Certification: UL Listed
• Furnace SKU: N80MSN0902116A
• Furnace Input BTU: 88,000 BTU
• Furnace Output BTU (approx.): 70,400 BTU
• Furnace AFUE: 80%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Blower Motor: Multi 18-speed constant torque
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field convertible to Propane with optional kit)
• Furnace Electrical: 115V, 1 phase, 60 Hz; max breaker 15 Amps
• System Cooling Range (outdoor temperature): -22°F to 122°F
• System Heating Range (outdoor temperature): -22°F to 75°F
• Included / Required: Condenser (ACIQ-36-HPD), Coil (ACIQ-36-ACL-B), Furnace (N80MSN0902116A) - accessories sold separately
• Zone Compatibility: Single Zone
