Aciq Aciq-36-HP-E-32 Essentials 3 Ton 17 SEER2 Central Heat Pump Split System (3 Ton) Aciq-36-AH-E-32B

Product Description

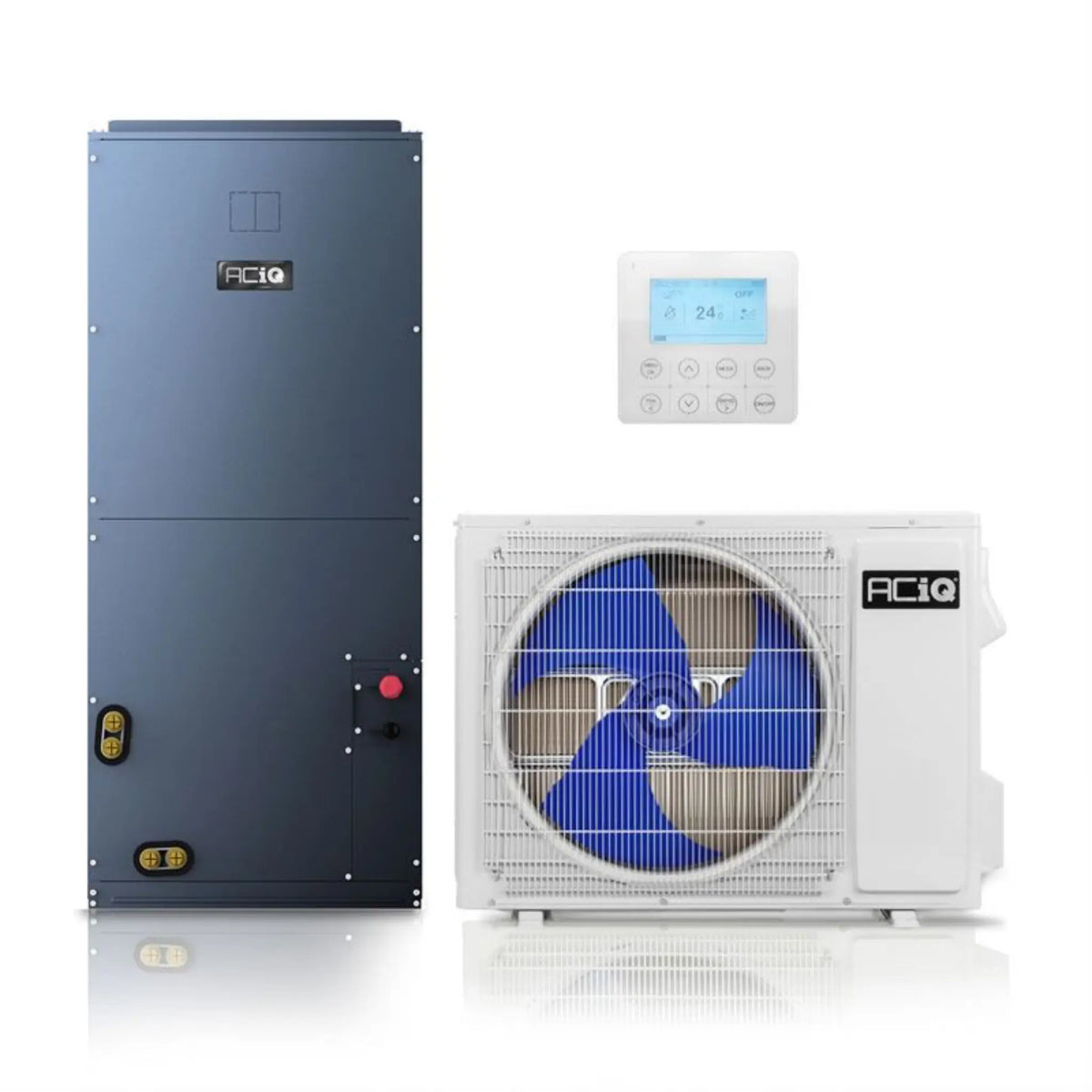

The Aciq ACIQ-36-HP-E-32 / ACIQ-36-AH-E-32B is a matched 3 ton central heat pump split system that pairs an inverter-driven rotary compressor condenser with a multi-positional air handler and R32 refrigerant. The system provides 35,000 BTU cooling and 38,000 BTU heating, 17 SEER2 and 8.6 HSPF2 efficiency ratings, operates on 208/230V single-phase power, and includes a wired wall-mounted thermostat controller.

• Inverter-driven variable-speed rotary compressor with pre-charged R32 refrigerant (81.13 oz).
• Performance: 3 ton capacity, 35,000 BTU cooling, 38,000 BTU heating, 17 SEER2, 8.6 HSPF2, 9.5 EER2.
• Multi-positional air handler (upflow/downflow/horizontal), 208/230V 1 phase 60 Hz electrical, supports optional electric heat kits.

Product Highlights

Matched 3 ton inverter heat pump split system with multi-positional air handler and wired thermostat.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-HP-E-32 / ACIQ-36-AH-E-32B

Technical Specifications

• Brand: Aciq
• Model / MPN: ACIQ-36-HP-E-32 / ACIQ-36-AH-E-32B

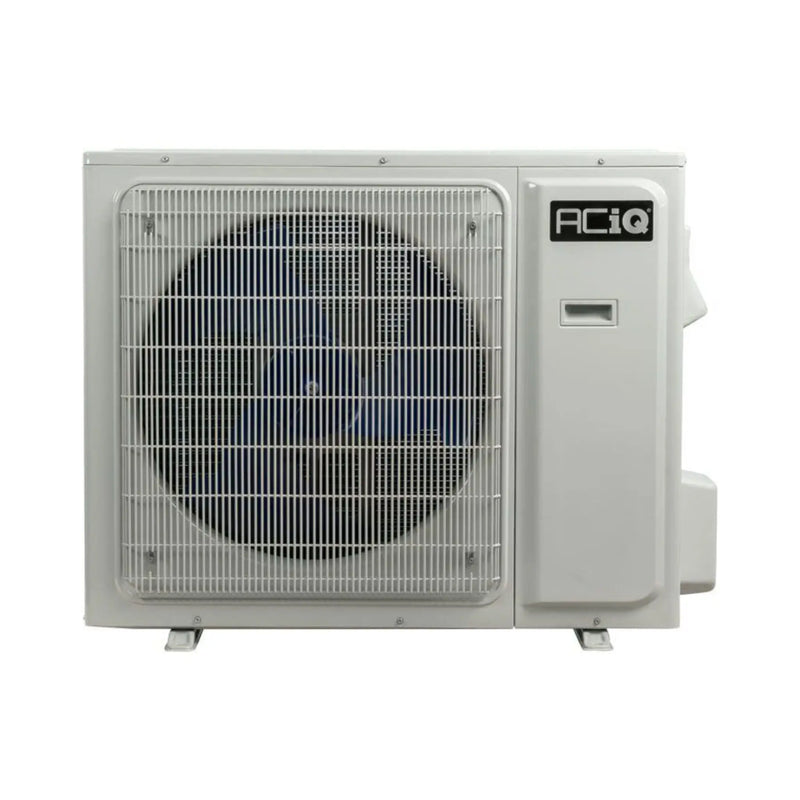

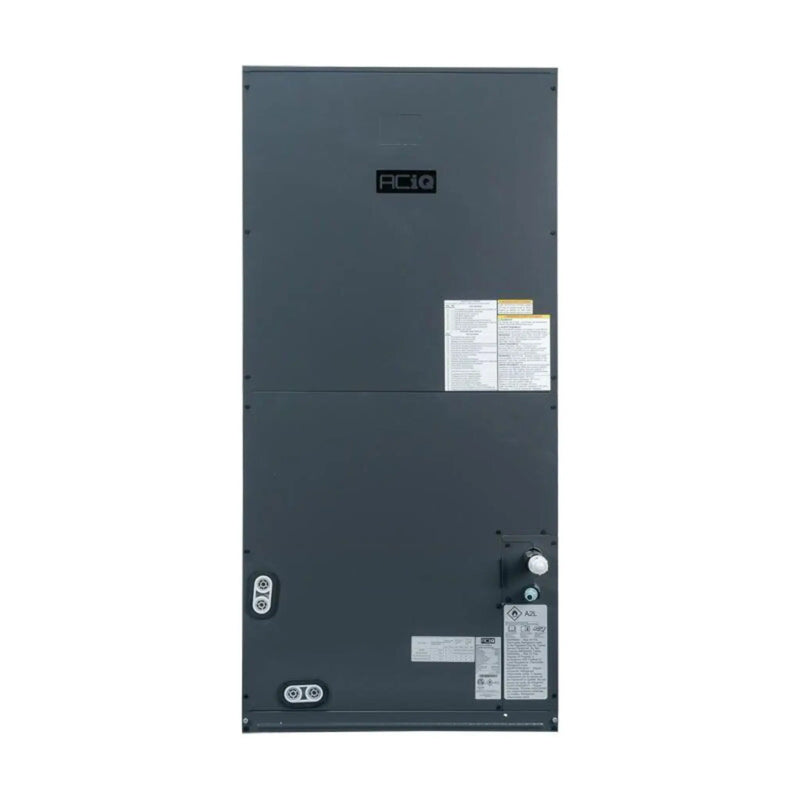

• Bundle Components: 3 Ton Heat Pump Condenser (ACIQ-36-HP-E-32) + 3 Ton Air Handler (ACIQ-36-AH-E-32B)
• Tonnage: 3 Ton
• Cooling Capacity (BTU): 35,000 BTU
• Heating Capacity (BTU): 38,000 BTU
• SEER2: 17
• HSPF2: 8.6
• EER2: 9.5
• Refrigerant: R32
• Refrigerant Charge: 81.13 oz.
• Compressor Type: Rotary, variable speed / inverter
• Condenser Max Airflow (CFM): 2471
• Air Handler Max Airflow (CFM): 1100
• Air Handler Configuration: Multi-positional (upflow, downflow, horizontal)
• Air Handler Filter Size: 18" x 20"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Phase: Single Phase
• Condenser Heating Operating Range: 5°F - 75°F
• Condenser Ambient Temperature Range: 5°F - 125°F
• Liquid Line Size: 3/8"
• Suction Line Size: 5/8"
• Connection Type: Flare to braze
• Sound Level (Condenser): 59 dB
• Sound Level (Air Handler): 48 dB
• Maximum Breaker Size (Condenser): 35 Amps
• Minimum Breaker Size (Condenser): 24 Amps
• Included Controller: Wired wall-mounted thermostat controller
• Condenser Dimensions (H x W x D): 31-13/16" x 41-3/16" x 17-15/16"
• Air Handler Dimensions (H x W x D): 31-13/16" x 41-3/16" x 17-15/16"
• Weight (Condenser): 156.5 lbs
• Weight (Air Handler): 152 lbs
• Horsepower (Air Handler): 1/2 HP
• Electric Backup Heat Capabilities: Supports optional 5 kW / 10 kW / 15 kW electric heat kits
• Product ID: 91803
