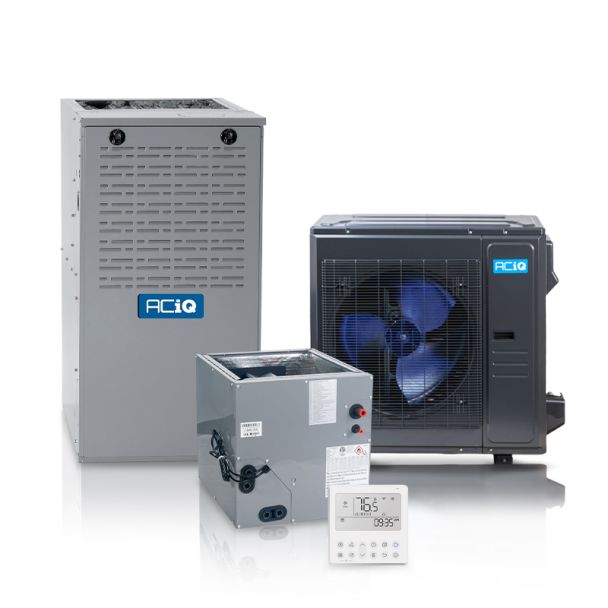

Aciq Aciq-36-EHPD Hybrid 3 Ton 36,000 BTU (3 Ton Package) G80CTL0702120A

Product Description

Aciq ACIQ-36-EHPD / ACIQ-36-ACL-B / G80CTL0702120A is a matched hybrid HVAC package that pairs a 3-ton inverter heat pump condenser with a multi-positional evaporator cased coil and an 80% AFUE two-stage gas furnace. The condenser uses a variable-speed inverter rotary compressor with R454B refrigerant and adaptive learning controls; the furnace provides a communicating variable-speed ECM blower and two-stage burner for staged heating.

• Inverter variable-speed condenser with R454B refrigerant, SEER2 16.1, HSPF2 8.7, and adaptive learning controls; operating range cooling -13°F to 122°F, heating -13°F to 75°F.
• Two-stage 80% AFUE gas furnace (G80CTL0702120A) with communicating variable-speed ECM blower, direct ignition silicon nitride hot surface ignitor, multi-positional installation, and field-convertible to propane (optional kit).
• 3-ton multi-positional evaporator coil (ACIQ-36-ACL-B) with factory-installed TXV, 3/8" liquid line, 3/4" suction line, and 21" x 21" x 24" cabinet dimensions.

Product Highlights

Matched 3-ton hybrid system: inverter R454B condenser (SEER2 16.1), 80% AFUE two-stage furnace with variable-speed ECM blower, and 3-ton multi-positional coil with factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-EHPD / ACIQ-36-ACL-B / G80CTL0702120A

Technical Specifications

• Brand: ACiQ
• MPN / Model: ACIQ-36-EHPD / ACIQ-36-ACL-B / G80CTL0702120A
• Product ID: 217478
• Package Description: 3 Ton inverter heat pump condenser + 66,000 BTU 80% AFUE two-stage furnace + 3 Ton multi-positional evaporator coil
• Condenser SKU: ACIQ-36-EHPD
• Condenser Tonnage: 3 Ton
• Condenser Cooling Capacity (BTU): 36,000
• Condenser Heating Capacity (BTU): 36,000
• Condenser SEER2: 16.1
• Condenser HSPF2: 8.7
• Condenser EER2: 10.0
• Condenser Refrigerant: R454B (pre-charged)
• Condenser Refrigerant Charge: 116.4 oz.
• Condenser Compressor Type: Variable inverter twin rotary
• Condenser Electrical (Input Voltage): 208/230V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Operating Temperature Range (Cooling): -13°F to 122°F
• Condenser Operating Temperature Range (Heating): -13°F to 75°F
• Condenser Decibel Level (dBA): 63
• Condenser Weight (lbs): 163.58
• Furnace SKU: G80CTL0702120 / G80CTL0702120A
• Furnace AFUE: 80%
• Furnace Input BTU: 66,000
• Furnace Output BTU (approx.): 53,000
• Furnace Blower Motor: Communicating variable speed (ECM)
• Furnace Maximum CFM: 2150
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Exhaust Flue Requirement: Metal
• Furnace Weight (lbs): 146.00
• Coil SKU: ACIQ-36-ACL-B
• Coil Tonnage: 3 Ton
• Coil Configuration: Multi-positional (upflow/downflow/horizontal) A-coil
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Height: 24"
• Coil Width: 21"
• Coil Depth: 21"
• Coil Weight (lbs): 74.00
• Coil Features: Factory-installed TXV
• AHRI Certificate (Furnace): 213148662
