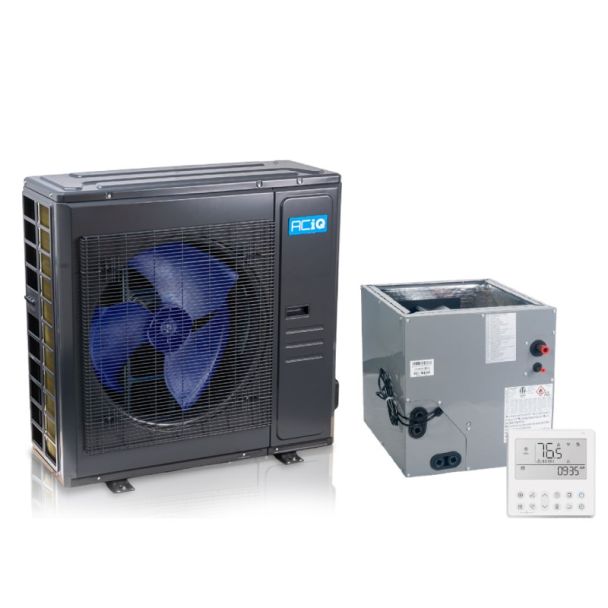

Aciq Aciq-36-EHPD / Aciq-36-ACL-17-B 3 Ton 14.3 SEER2 High Efficiency Central Heat Pump With 17.5 inches Multi-Positional Cased Coil Inverter R454B

Product Description

Aciq ACIQ-36-EHPD / ACIQ-36-ACL-17-B is a 3 ton inverter central heat pump system that pairs a variable-capacity condenser with a 17.5-inch multi-positional A-coil evaporator. The system uses R454B refrigerant and provides 12,000–36,000 BTU output with SEER2 16.1 (listed 14.3), HSPF2 8.7, and EER2 10.0. The condenser operates on 208/230 V, single phase, 60 Hz and the coil includes a factory-installed TXV for matched performance.

• Inverter rotary compressor with variable capacity, 12,000–36,000 BTU output, SEER2 16.1, HSPF2 8.7, EER2 10.0
• Designed for R454B refrigerant; condenser rated for ambient cooling −13°F to 122°F and heating −13°F to 75°F; 63 dBA sound level
• 17.5-inch multi-positional A-coil with factory-installed TXV, liquid line 3/8 inch, suction line 3/4 inch; electrical 208/230 V, single phase, 60 Hz

Product Highlights

Inverter-driven condenser and 17.5" multi-positional coil matched for variable-capacity heating and cooling with factory TXV and R454B refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-EHPD / ACIQ-36-ACL-17-B

Technical Specifications

• Brand: Aciq
• MPN: ACIQ-36-EHPD / ACIQ-36-ACL-17-B
• Tonnage: 3 Ton
• SEER2: 16.1 (condenser); 14.3 (listed)
• Refrigerant: R454B
• HSPF2: 8.7
• EER2: 10.0
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• Variable Output (BTU): 12,000-36,000 BTU
• Compressor Type: Rotary (variable speed inverter)
• Condenser Dimensions: Height 31.89 in, Width 37.24 in, Depth 16.14 in
• Evaporator Coil Dimensions: Height 23.5 in, Width 17.5 in, Depth 21 in
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Factory-Installed TXV: Yes (coil)
• Maximum CFM: 2413.2
• Noise Level (dBA): 63 dBA
• Input Voltage: 208/230 V
• Phase: Single Phase
• Frequency: 60 Hz
• Max Breaker Size: 30 Amps
• Min Breaker Size: 27 Amps
• Certification: UL Listed
• MPN/Model Notes: Condenser paired with 17.5-inch multi-positional A-coil; inverter variable-capacity system
