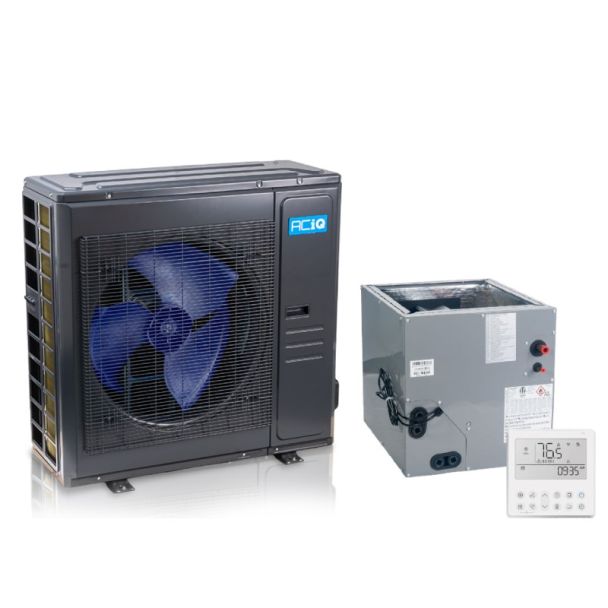

Aciq Aciq-36-EHPD 3 Ton 14.3 SEER2 High Efficiency Central Heat Pump Inverter (21 inches Multi-Positional Coil) Aciq-36-ACL-B

Product Description

ACIQ ACIQ-36-EHPD / ACIQ-36-ACL-B is a 3 Ton inverter central heat pump package combining a variable-capacity condenser and a 21-inch multi-positional A-coil evaporator. The system uses R454B refrigerant, provides variable output from 12,000 to 36,000 BTU for heating and cooling, and supports upflow, downflow, or horizontal coil installation for ducted HVAC applications.

• Inverter condenser with variable compressor speed and 12,000–36,000 BTU output range; condenser rated 36,000 BTU.
• Efficiency and ratings: 14.3 SEER2, EER2 10.0, HSPF2 8.7; rotary compressor; noise level 63 dBA.
• 21" multi-positional A-coil evaporator with factory-installed TXV kit; compatible with AC-only or heat pump condensers; UL listed.

Product Highlights

3 Ton inverter heat pump package; R454B refrigerant; 21" multi-positional coil with TXV; condenser rated down to -13°F.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-EHPD / ACIQ-36-ACL-B

Technical Specifications

• Brand: ACIQ
• Model / MPN: ACIQ-36-EHPD / ACIQ-36-ACL-B
• Product ID: 208187
• Package Components: ACIQ-36-EHPD condenser (3 Ton) and ACIQ-36-ACL-B 21" multi-positional evaporator coil
• Tonnage: 3 Ton
• Condenser Cooling BTU: 36,000 BTU
• Condenser Heating BTU: 36,000 BTU
• Condenser Max Output Range: 12,000 - 36,000 BTU (cooling/heating variable output)
• SEER2: 14.3
• EER2: 10.0
• HSPF2: 8.7
• Refrigerant: R454B
• Refrigerant Charge: 116.4 oz.
• Compressor Type: Rotary
• Compressor Stages: Variable Speed
• Maximum Airflow (CFM): 2413.2
• Sound Level: 63 dBA
• Input Voltage: 208/230V, 1 Phase, 60 Hz
• Phase: Single Phase
• Minimum Breaker Size: 27 Amps
• Maximum Breaker Size: 30 Amps
• Ambient Temperature Range: -13°F - 122°F
• Heating Operating Range: -13°F - 75°F
• Cooling Operating Range: -13°F - 122°F
• Liquid Line Size (Condenser): 3/8"
• Suction Line Size (Condenser): 3/4"
• Evaporator Liquid Line: 3/8"
• Evaporator Suction Line: 3/4"
• Refrigerant Compatibility (Evaporator): R454B
• Evaporator Configuration: Multi-Positional (A-Coil)
• Evaporator Certification: UL Listed
• Condenser Dimensions (H x W x D): 31.89 inches x 37.24 inches x 16.14 inches
• Condenser Weight: 163.58 lbs
• Evaporator Dimensions (H x W x D): 24 inches x 21 inches x 21 inches
• Evaporator Weight: 74.00 lbs
• Evaporator Tonnage: 3 Ton
• Package Notes: Coil cannot operate independently; requires compatible condenser and blower/furnace
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
