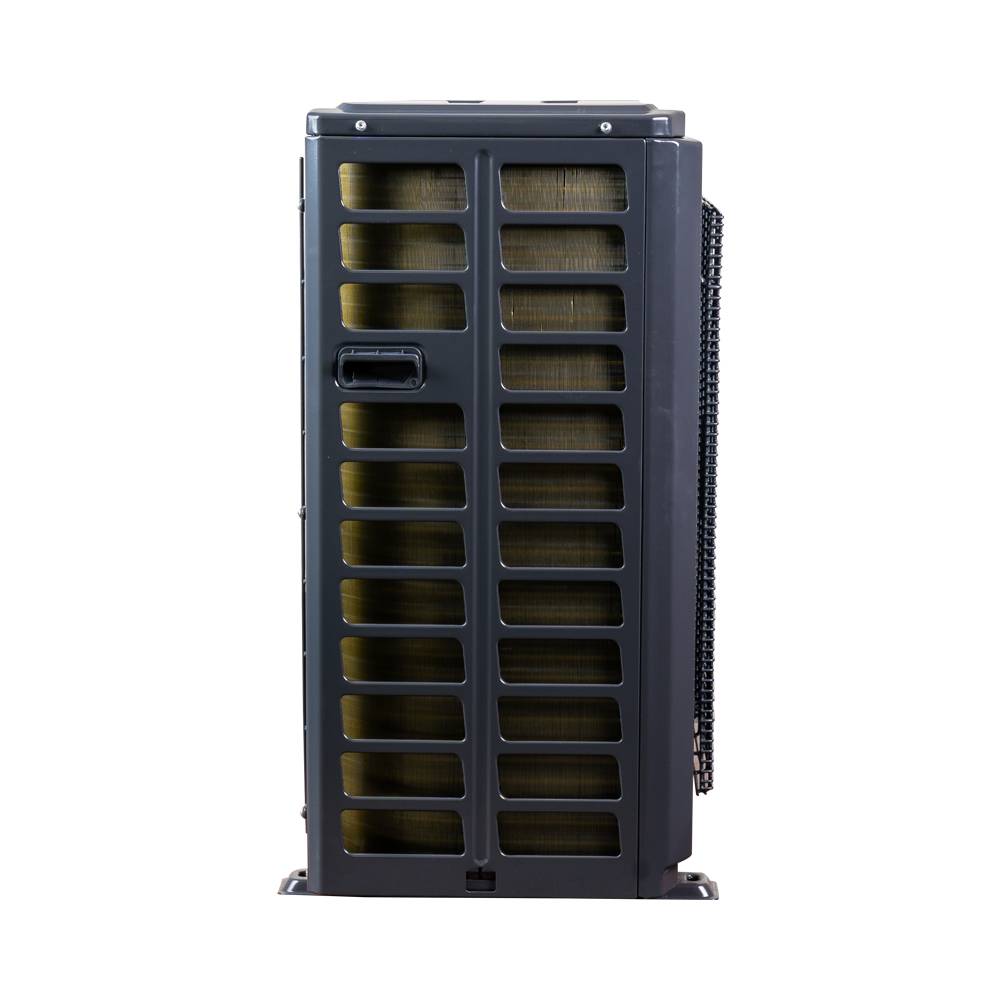

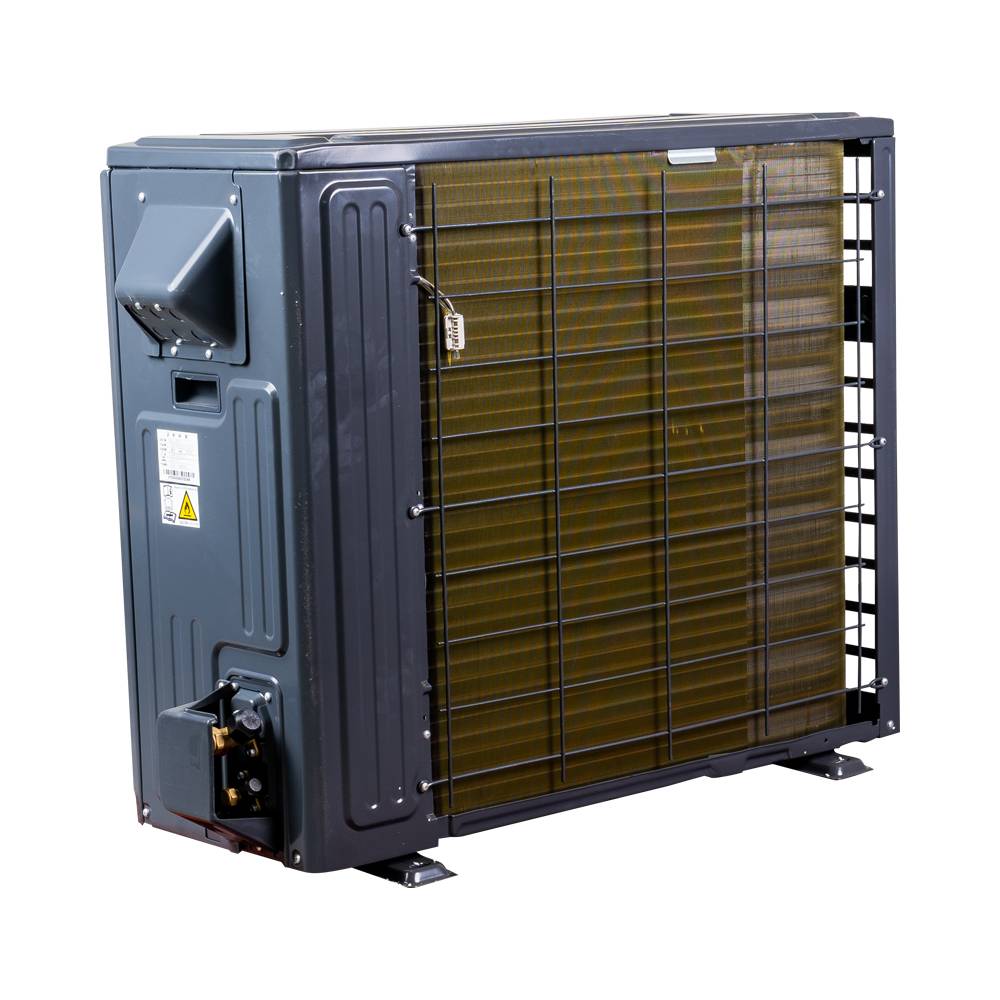

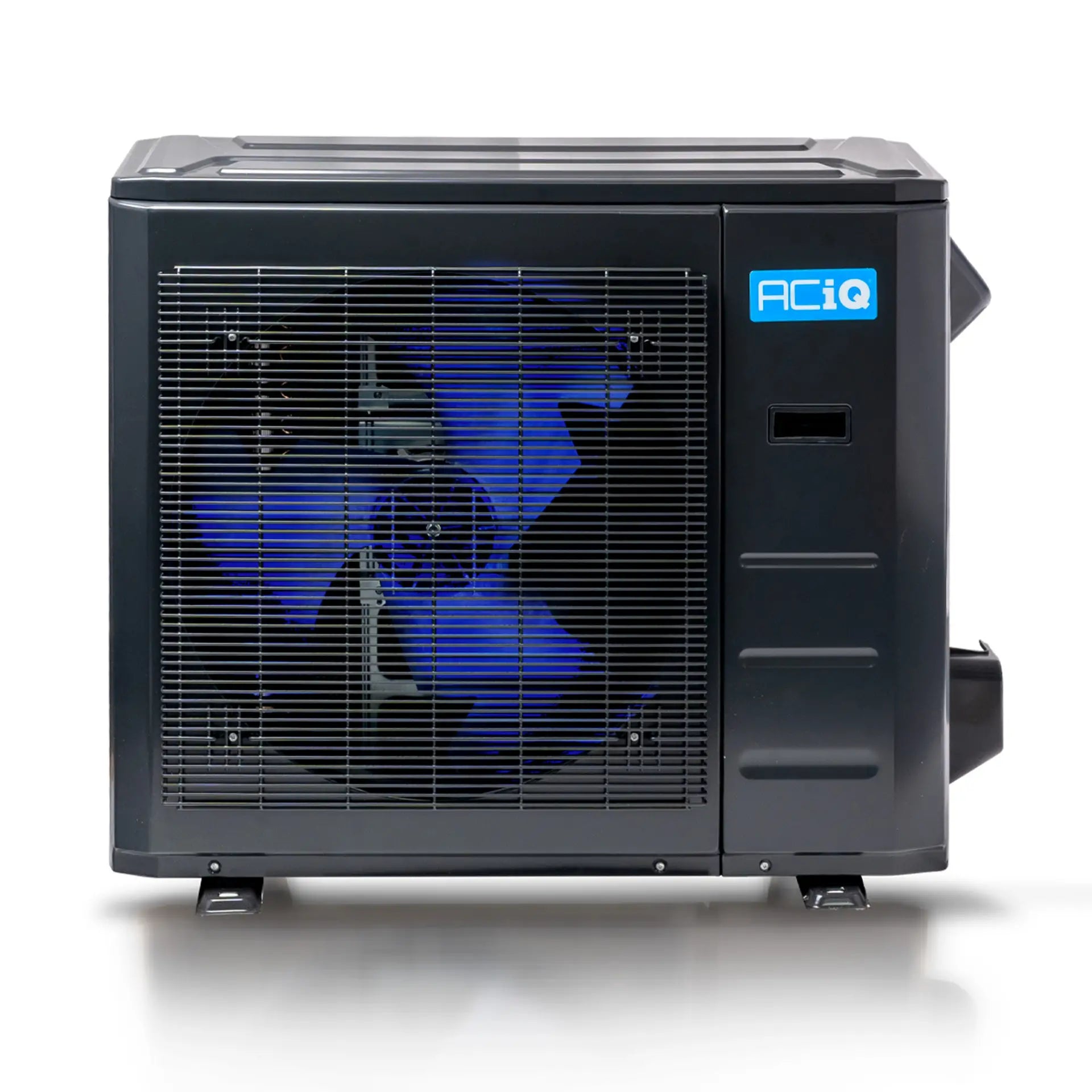

Aciq Aciq-36-AC-B / Aciq-36-ACL-B 3 Ton High-Efficiency Air Conditioner 36,000 BTU (21 in Coil)

Product Description

Aciq ACIQ-36-AC-B / ACIQ-36-ACL-B is a matched 3 ton outdoor air conditioner condenser and 21 inch multi-positional evaporator coil providing 36,000 BTU cooling capacity and 15.6 SEER2 efficiency. The system uses R454B refrigerant and inverter twin rotary compressor technology for variable output from 12,000 to 36,000 BTU, operates on 208-230 V single phase, and functions across an operating range of -13 to 122 F.

• Performance: 36,000 BTU cooling, 15.6 SEER2, variable output 12,000 to 36,000 BTU
• Refrigeration and compressor: R454B refrigerant, inverter twin rotary/rotary compressor, factory-installed TXV in coil
• Physical and service: Condenser 37.24 x 16.14 x 31.89 in, sound level 58 dB(A)

Product Highlights

Matched condenser and 21 in multi-positional evaporator coil with R454B refrigerant, inverter rotary compressor, 15.6 SEER2, variable 12k–36k BTU output.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-AC-B / ACIQ-36-ACL-B

Technical Specifications

• Model: ACIQ-36-AC-B / ACIQ-36-ACL-B
• Brand: Aciq
• Tonnage: 3 Ton
• Cooling Capacity: 36,000 BTU
• Rated BTU Range: 12,000 to 36,000 BTU
• SEER2 (Efficiency): 15.6
• EER2: 10.2
• Compressor Type: Rotary (variable inverter twin rotary)
• Refrigerant: R454B
• Input Voltage: 208-230 V / 1 Phase / 60 Hz
• Phase: Single Phase
• Max Breaker Size: 25 Amps
• Min Breaker Size: 25 Amps
• Liquid Line Size: 3/8 in
• Suction/Gas Line Size: 3/4 in
• Sound Level: 58 dB(A)
• Operating Range: -13 to 122 F
• Condenser Dimensions (W x D x H): 37.24 in x 16.14 in x 31.89 in
• Condenser Weight: 134.26 lbs

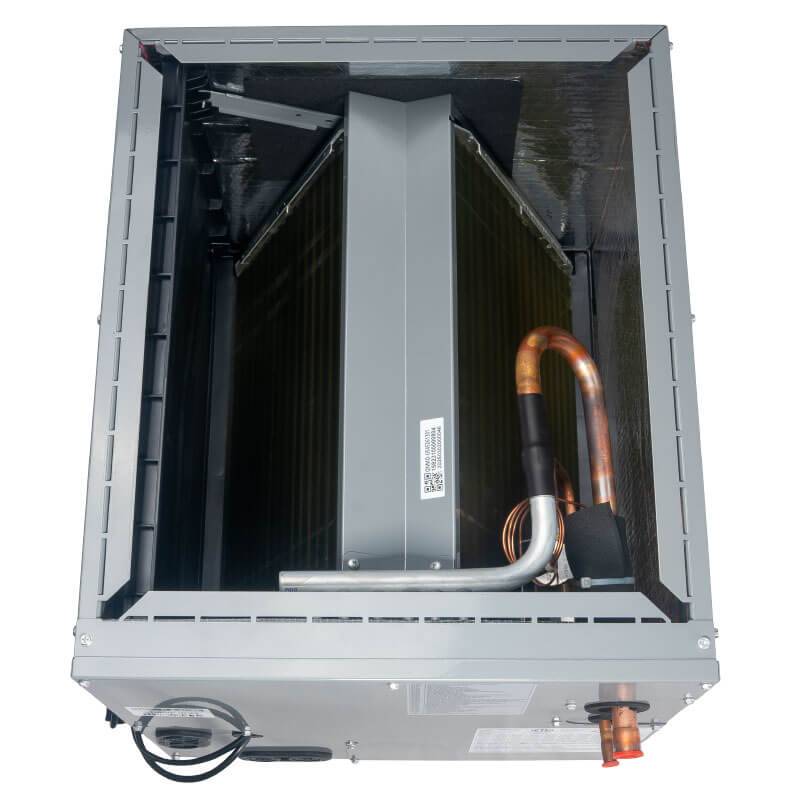

• Coil Dimensions (H x W x D): 24 in x 21 in x 21 in
• Coil Weight: 74.00 lbs
• Maximum CFM: 3002
• Condenser Stages: Variable Speed
• Zone Compatibility: Single Zone
• Operating Mode: Cooling
• Metering Device (Coil): Factory-installed TXV

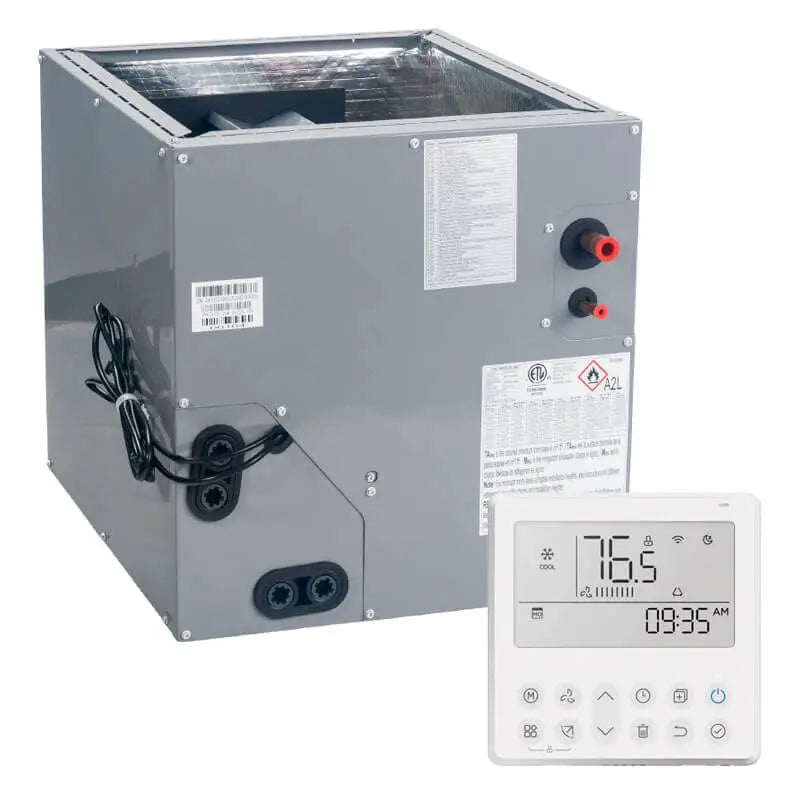

• Included Accessories: Refrigerant leak mitigation kit (with coil); A-Coil Mini Interface Kit; KJR-120N wired controller
• Condenser Weight (validated_note): Condenser weight appears reasonable for a 3-ton outdoor condenser
• Coil Weight (validated_note): Coil weight appears reasonable for a 21 in multi-positional evaporator coil
