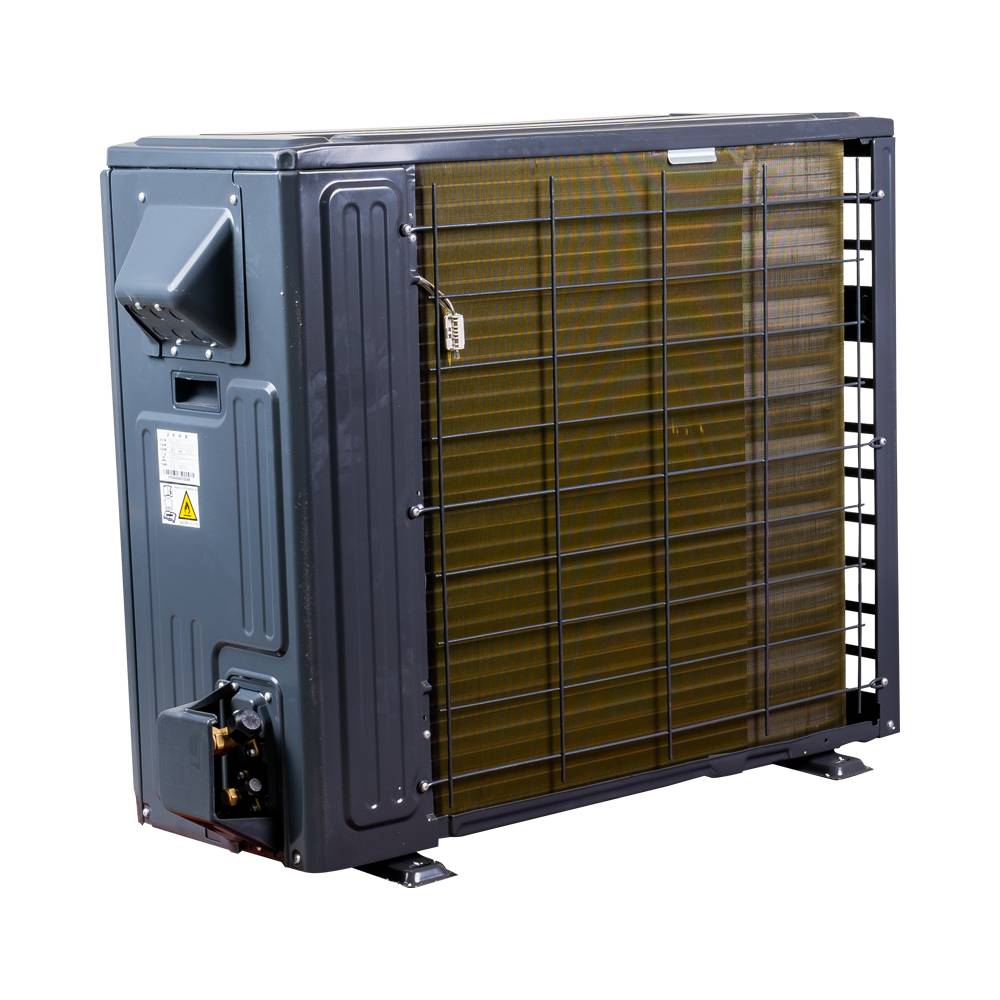

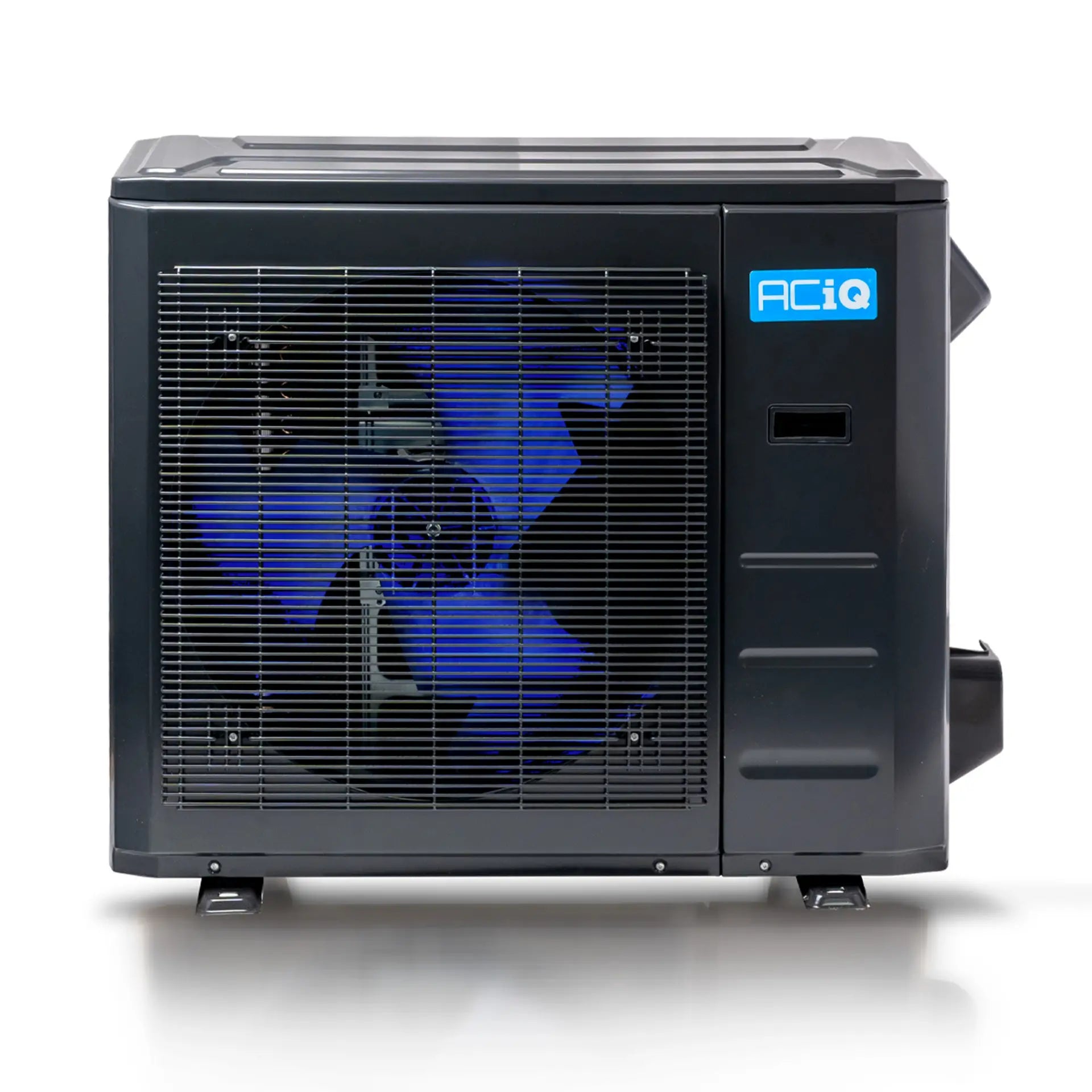

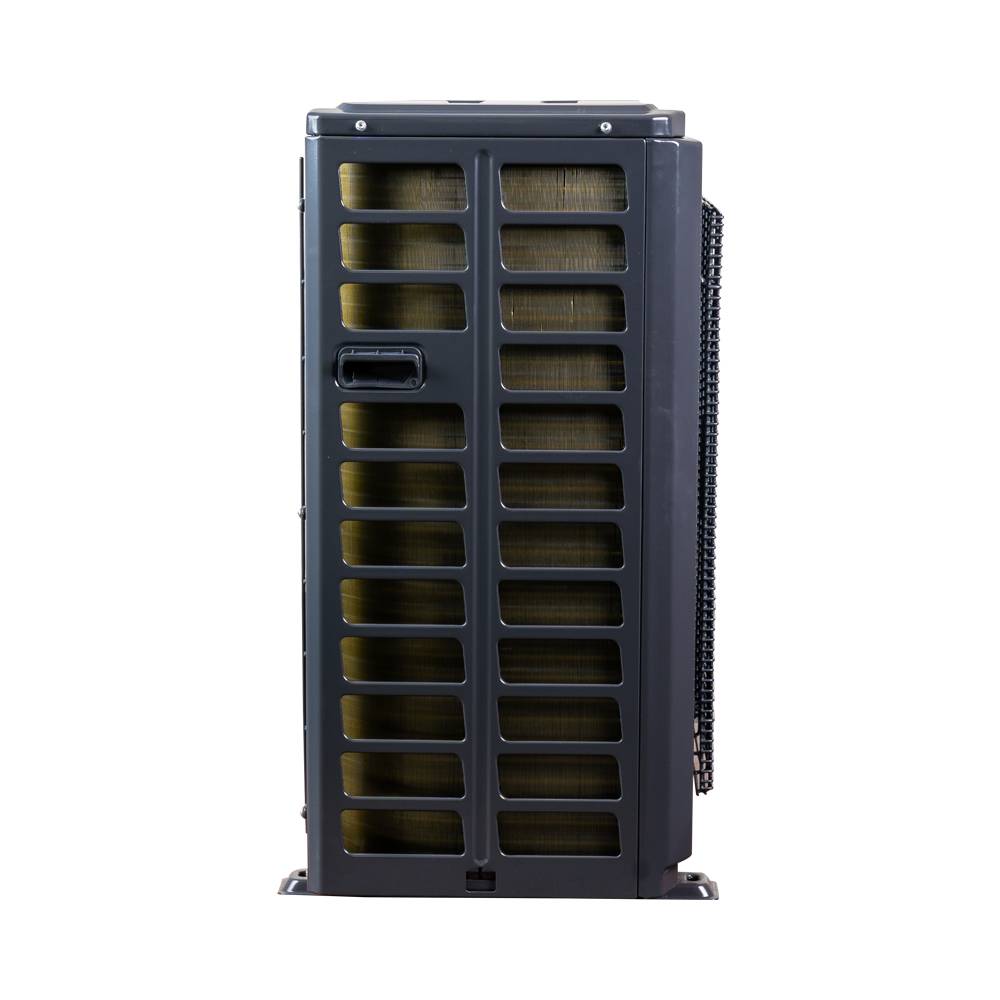

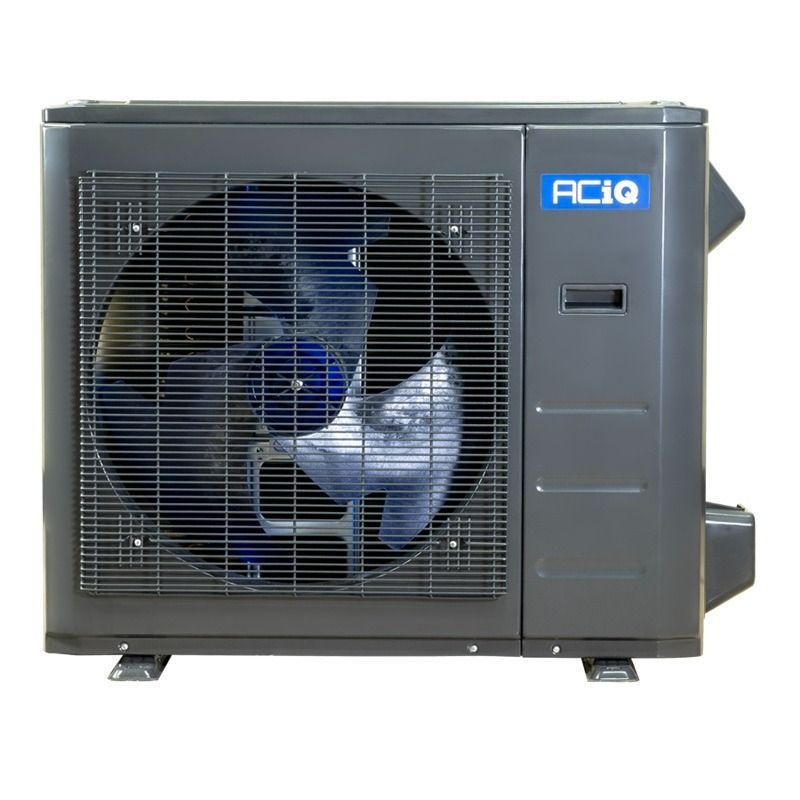

Aciq Aciq-36-AC-B 3 Ton High-Efficiency Air Conditioner 36,000 BTU (Aciq-36-ACL-17-B)

Product Description

The Aciq ACIQ-36-AC-B is a 3 ton (36,000 BTU) high-efficiency air conditioner condenser rated at 15.6 SEER for residential cooling. It uses R454B refrigerant and a rotary inverter-driven compressor to provide variable output and efficient part-load operation, supports operation from -13 to 122 F, and includes Gold Fin coil protection and leak detection while producing approximately 58 dB(A) sound at max load.

• Variable inverter rotary compressor with output range down to 12,000 BTU and rated cooling capacity of 36,000 BTU; 15.6 SEER efficiency
• R454B refrigerant, Gold Fin condenser coil coating, leak detection, and quiet operation (~58 dB(A))
• Electrical: 208-230 V, 1 phase, 60 Hz; liquid line 3/8", suction/gas line 3/4"; dimensions 37.24" x 16.14" x 31.89"

Product Highlights

3 ton condenser, 36,000 BTU, 15.6 SEER, inverter variable-speed rotary compressor, R454B refrigerant

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-AC-B / ACIQ-36-ACL-17-B
• Country of Origin: United States

Technical Specifications

• Brand: Aciq
• Model: ACiQ-36-AC-B
• Manufacturer Part Number: ACIQ-36-AC-B
• Recommended Coil / Replacement MPN: ACIQ-36-ACL-B; ACIQ-36-ACL-17-B
• Tonnage: 3 Ton
• Cooling Capacity: 36,000 BTU
• SEER: 15.6
• Compressor Type: Rotary (variable inverter twin rotary)
• Refrigerant: R454B
• Input Voltage: 208-230 V
• Phase: Single phase
• Frequency: 60 Hz
• Operating Temperature Range: -13 to 122 F
• Sound Level: 58 dB(A)
• Liquid Line Size: 3/8"
• Suction/Gas Line Size: 3/4"
• Dimensions (W x D x H): 37.24" x 16.14" x 31.89"
• Weight: 134.26 lbs
• Max CFM: 3002
• Min Breaker Size: 25 Amps
• Max Breaker Size: 25 Amps
• Condenser Type: Variable speed / inverter
