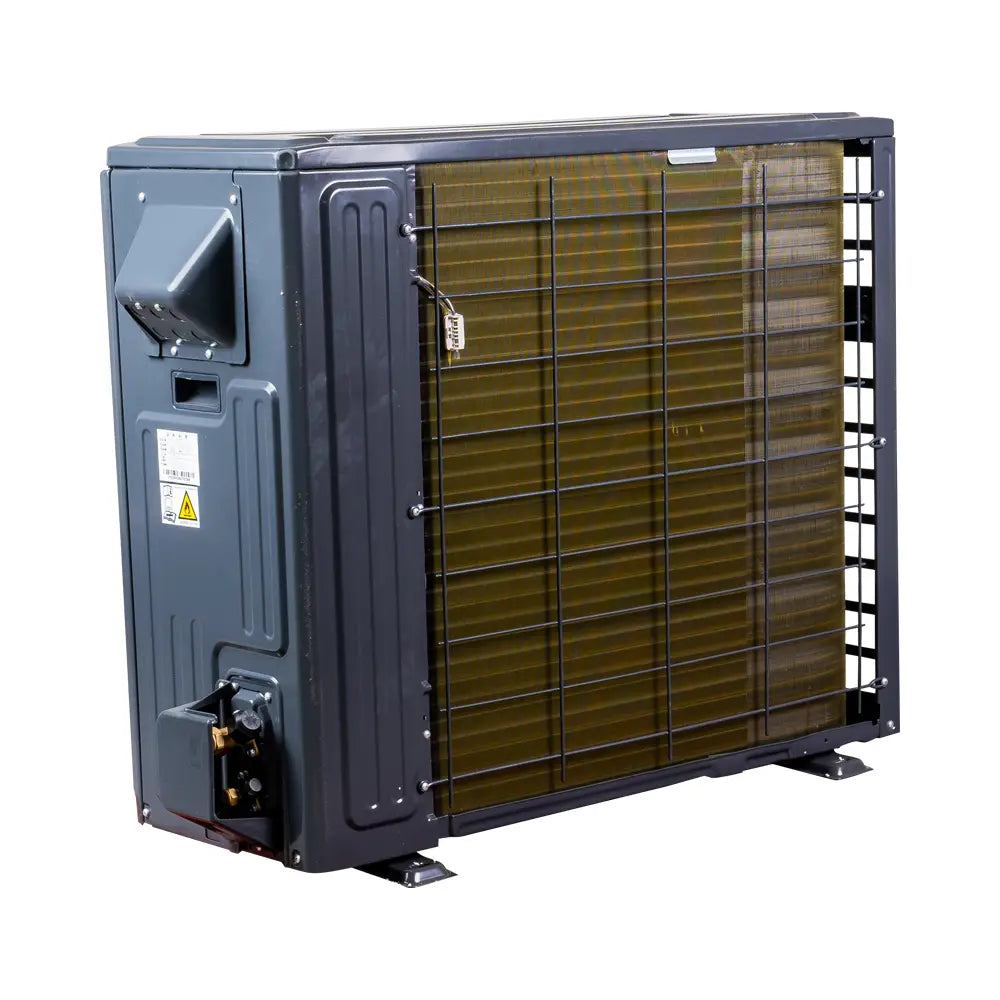

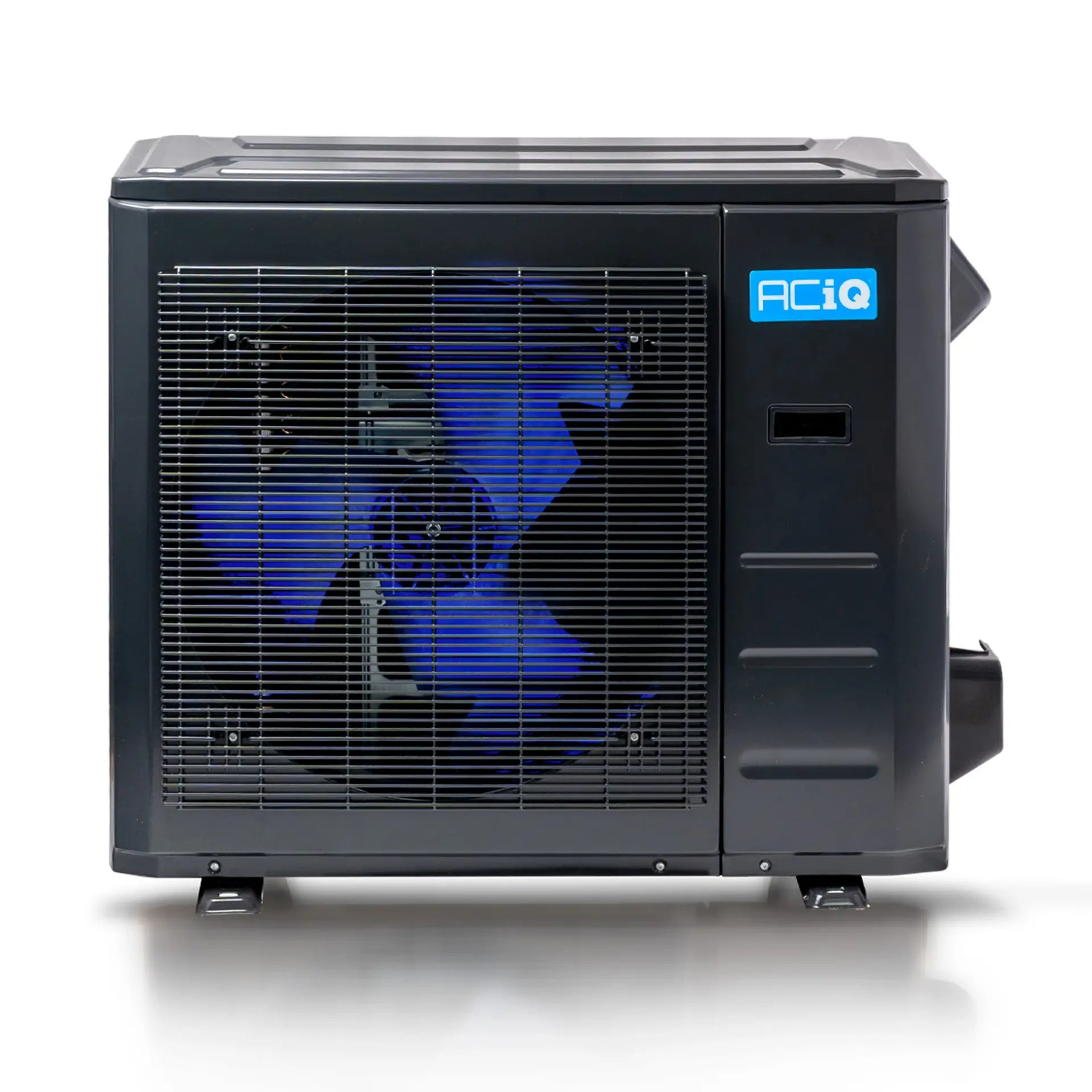

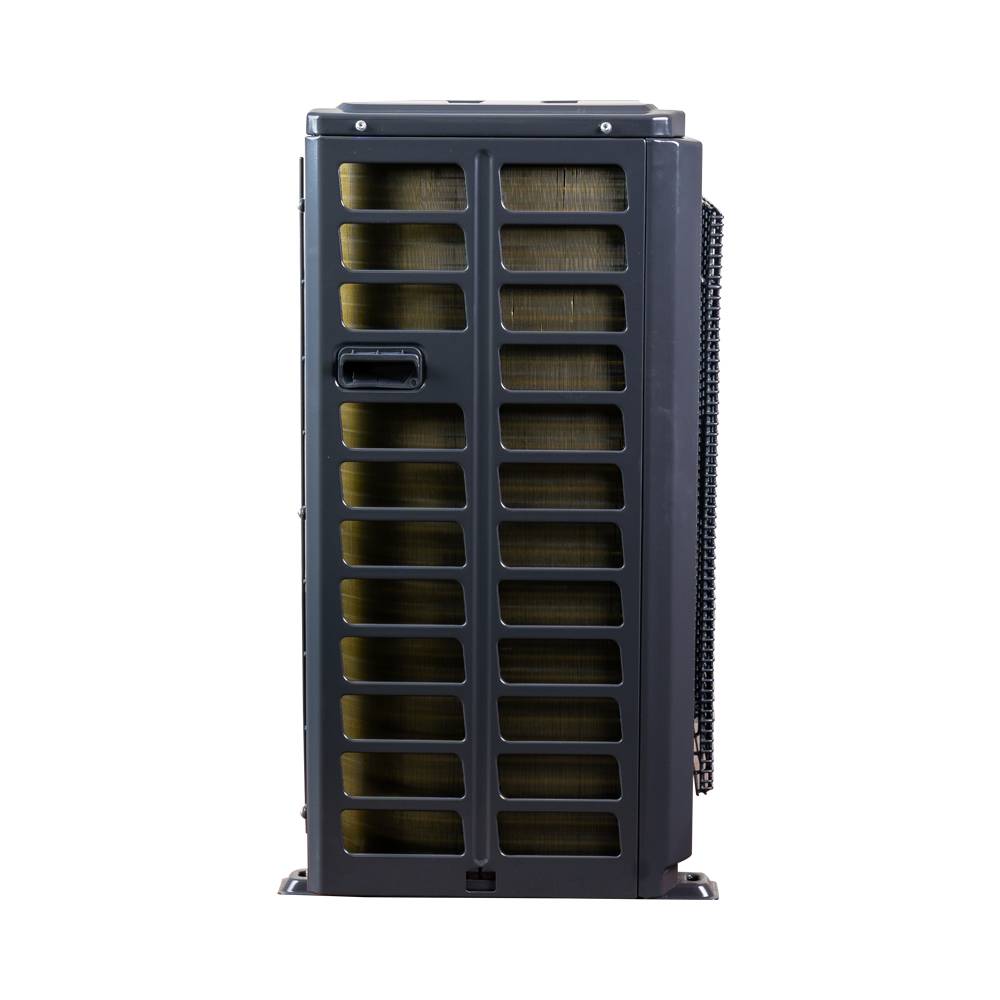

Aciq Aciq-36-AC-B 3 ton air conditioner 36,000 BTU (3 Ton)

Product Description

The Aciq ACIQ-36-AC-B is a 3 ton (36,000 BTU) high-efficiency air conditioner for residential AC replacement and hybrid system applications. It delivers 15.6 SEER cooling with a rotary compressor and low-GWP R454B refrigerant, operates on 208-230 V, 1 phase, 60 Hz, and maintains performance across an ambient range of -13 to 122 F. The unit includes gold fin coating, leak detection, and a measured sound level of 58 dB(A).

• Cooling capacity: 36,000 BTU; efficiency rating: 15.6 SEER; rotary compressor
• Electrical: 208-230 V / 1 Ph / 60 Hz; refrigerant: R454B; operating range -13 to 122 F
• Gold fin corrosion coating, leak detection, quiet operation (58 dB(A)); liquid line 3/8", gas line 3/4"

Product Highlights

3 ton, 36,000 BTU condenser; 15.6 SEER; R454B refrigerant

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-36-AC-B

Technical Specifications

• Brand: ACIQ
• Model: ACiQ-36-AC-B
• MPN: ACIQ-36-AC-B
• Tonnage: 3 Ton
• Cooling Capacity: 36,000 BTU
• SEER Rating: 15.6 SEER
• Compressor Type: Rotary
• Refrigerant: R454B
• Input Voltage: 208-230 V
• Phase: 1 Ph
• Frequency: 60 Hz
• Liquid Line Size: 3/8"
• Gas Line Size: 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 37.24" x 16.14" x 31.89"
• Weight: 134.26 lbs
• Operating Range: -13 to 122 F
• Coating: Gold fin coating
• Special Features: Leak detection; Quiet operation
• Application Notes: Suitable for AC replacement and high-efficiency hybrid systems
