Product Description

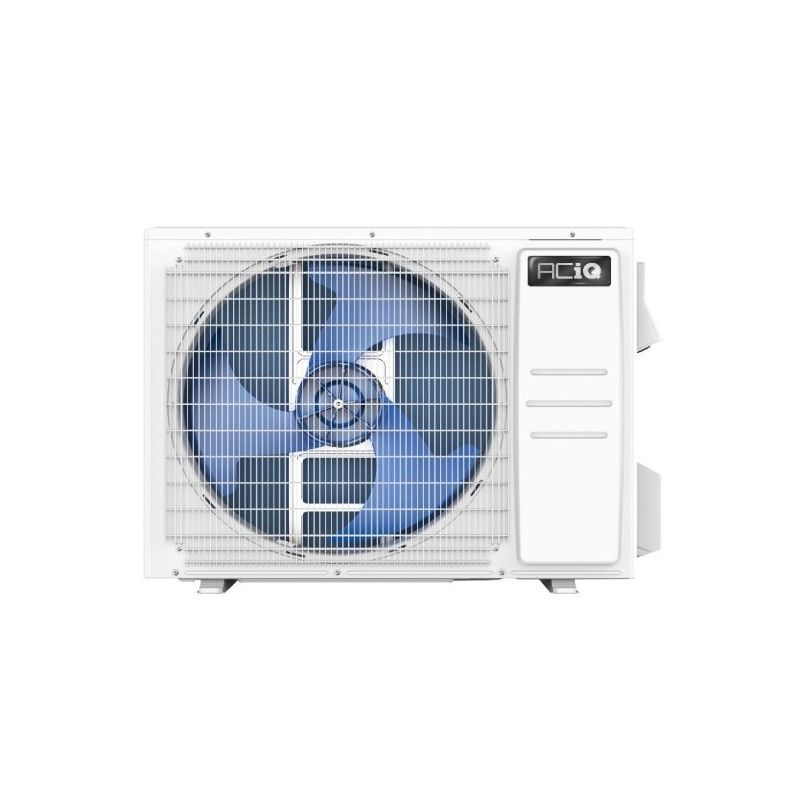

The ACiQ ACIQ-30-HP-E-32 / ACIQ-30-AH-E-32 Essentials 2.5 ton central heat pump split system delivers energy-efficient heating and cooling. Featuring inverter technology and R32 refrigerant, it provides smoother temperature control and quieter operation. Designed as a value-focused solution, this system offers dependable year-round comfort without the premium price tag.
- 18 SEER2 High Efficiency Performance – Provides excellent energy savings and reduced operating costs.
- Inverter-Driven Compressor – Dynamically adjusts compressor speed to match demand.
- R32 Refrigerant – Improves system efficiency while reducing environmental impact.
Product Highlights
This ACiQ heat pump split system is ideal for homeowners replacing aging AC and furnace systems with a modern heat pump solution.
Product Information
Standard Information
-
Brand: ACIQ
-
Manufacturer Part Number: ACIQ-30-HP-E-32 / ACIQ-30-AH-E-32
-
Country of Origin: USA
Technical Specifications
-
Model: ACIQ-30-HP-E-32 / ACIQ-30-AH-E-32
-
HSPF2: 8.5
-
Cooling BTU: 30,000 BTU
-
Heating BTU: 30,000 BTU
-
Decibel Level (dBA): 59 Decibels
-
Refrigerant: R32
-
SEER2: 18
-
Condenser Stages: Variable Speed
-
Compressor Type: Rotary Scroll
-
Liquid Valve Size: 3/8"
-
Suction Valve Size: 5/8"
-
Electrical: 208/230v 1 Phase 60 Hz
-
Electric Phase Filter: Single Phase
-
Max Breaker Size: 30 Amps
-
Min. Breaker Size: 21 Amps
-
Tonnage: 2.5 Ton
-

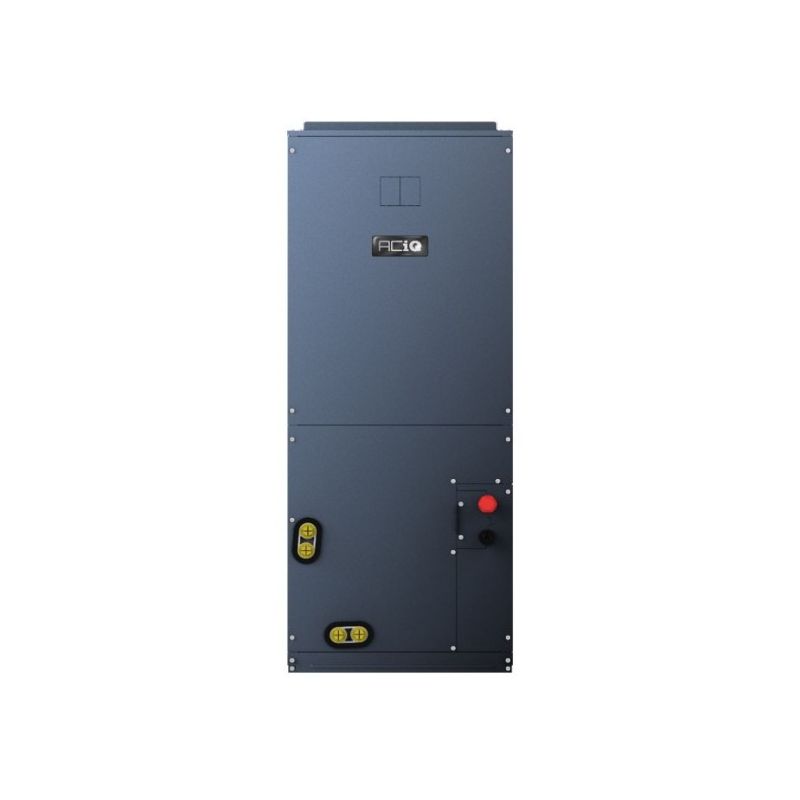

Air Handler Maximum CFM: 1000
-
Air Handler Decibel Level (dBA): 46 Decibels
-
Air Handler Horsepower: 1/2 HP
-
Air Handler Electric Backup Heat Capabilities (Optional): 15 Kilowatts
-
Air Handler Configuration: Multi-Positional
-
Air Handler Filter Size: 18" x 20"
-
Air Handler Connection: Flare to Braze
-
Refrigerant Charge: 81.13 oz.
-
Ambient Temperature Range: 5°F - 125°F
-
Min/Max Outdoor Temp for Heating: 5°F - 75°F
-
Min/Max Outdoor Temp for Cooling: 5°F - 125°F
-
Power Source: 208/230v, 1Ph, 60Hz
-
Voltage: 230 Volts
-
Efficiency Rating: 18 SEER
-
Cooling Capacity: 30,000 BTU
-
Heating Capability: 33,000 BTU
-
Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
-
Communicating Capacity: 24v Thermostat
-
Number of Cool Speeds: Variable
-
System Configuration: Multi-Positional
-
Number of Fan Motors: 1
-
Blower Motor Speed: Variable Speed
-
Power Phase: 1 Phase
-
BTU Cooling Rating: 30,000 BTU
-
Capacity: 28,100-38,000 BTUh
-
Energy Efficiency Ratio (EER): 10.1-11
-
Current Rating: 20.1-25 A
-
Heating Range: 5°F - 75°F
-
Type: Central Air Conditioner
-
Air Flow Volume: 500-999 CFM
-
SEER Rating: 18
-
Smart Home Protocol: Proprietary, Wi-Fi
-
Cooling Power: 30000 British Thermal Units
-
Noise Level: 42 Decibels
-
Filter Type: Washable filter
-
Inverter Type: Has Inverter
-
Installation Type: Central Split System
-
Is Outdoor Unit Required: Yes
-
Air Conditioner Application: Residential
-
Wattage: 4100 watts
-
Efficiency: High
-
Form Factor: Central Split System
-
Control Method: Touch
-
Controller Type: Smart Thermostat
