Aciq Aciq-30-EHPD Aciq-36-ACL-B G80CTL0702120A Hybrid 2.5 Ton 80% AFUE 70,000 BTU Package

Product Description

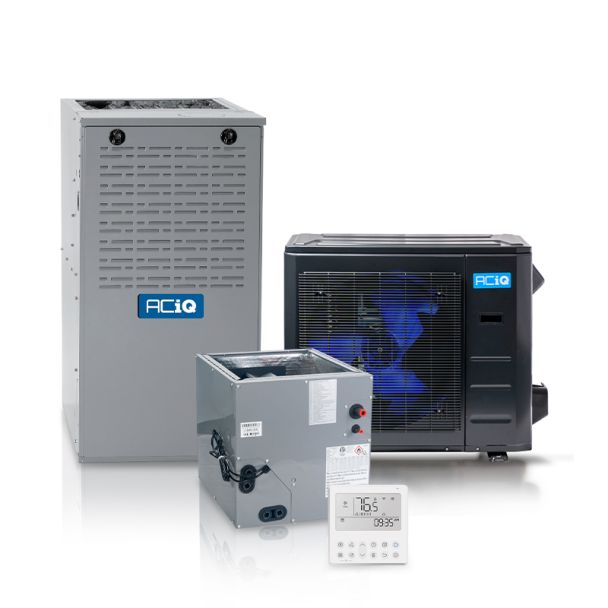

The Aciq ACIQ-30-EHPD / ACIQ-36-ACL-B / G80CTL0702120A hybrid system package combines a two-stage 80% AFUE gas furnace, a 2.5 ton inverter heat pump condenser, and a 3 ton multi-positional evaporator coil for matched heating and cooling performance. The furnace provides 66,000 BTU input with a communicating variable speed ECM blower and silicon nitride hot surface ignition. The inverter condenser uses R454B refrigerant, a variable speed compressor, and delivers variable output up to ~30,000 BTU cooling.

• Furnace: 66,000 BTU input, 80% AFUE, two-stage burner, variable speed ECM blower, multi-positional installation
• Condenser: 2.5 ton inverter heat pump (R454B), variable output (cooling 12,000–30,000 BTU; heating 12,000–31,000 BTU), 17 SEER2 and 8.5 HSPF2 rating, variable speed compressor
• Evaporator coil: 3 ton multi-positional A-coil with factory-installed TXV

Product Highlights

Matched hybrid package with two-stage 80% AFUE furnace, 2.5 ton inverter heat pump condenser (R454B), 3 ton multi-positional A-coil; multi-positional installation

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-30-EHPD / ACIQ-36-ACL-B / G80CTL0702120A

Technical Specifications

• Brand: ACiQ
• MPN / Model (Package): ACIQ-30-EHPD / ACIQ-36-ACL-B / G80CTL0702120A
• Package Includes: G80CTL0702120A furnace, ACIQ-30-EHPD condenser, ACIQ-36-ACL-B evaporator coil
• Furnace SKU: G80CTL0702120
• Furnace Input (BTU): 66,000
• Furnace AFUE: 80%
• Furnace Output (BTU): 53,000 (approx.)
• Furnace Blower Motor: Communicating variable speed (ECM)
• Furnace Burner Stages: Two
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Exhaust Flue Requirement: Metal
• Condenser SKU: ACIQ-30-EHPD
• Condenser Tonnage: 2.5 Ton
• Condenser Cooling BTU: 30,000
• Condenser Heating BTU: 31,000
• Condenser Capacity Range (Cooling): 12,000–30,000 BTU
• Condenser Capacity Range (Heating): 12,000–31,000 BTU
• Condenser SEER2: 17
• Condenser HSPF2: 8.5
• Condenser Refrigerant: R454B
• Condenser Compressor Type: Rotary (variable speed inverter)
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Operating Temperature (Cooling): -13°F to 122°F
• Condenser Operating Temperature (Heating): -13°F to 75°F
• Condenser Coil Coating: Gold fin coating
• Coil SKU: ACIQ-36-ACL-B
• Coil Tonnage: 3 Ton
• Coil Configuration: Multi-positional (A-coil)
• Coil Features: Factory-installed TXV kit
