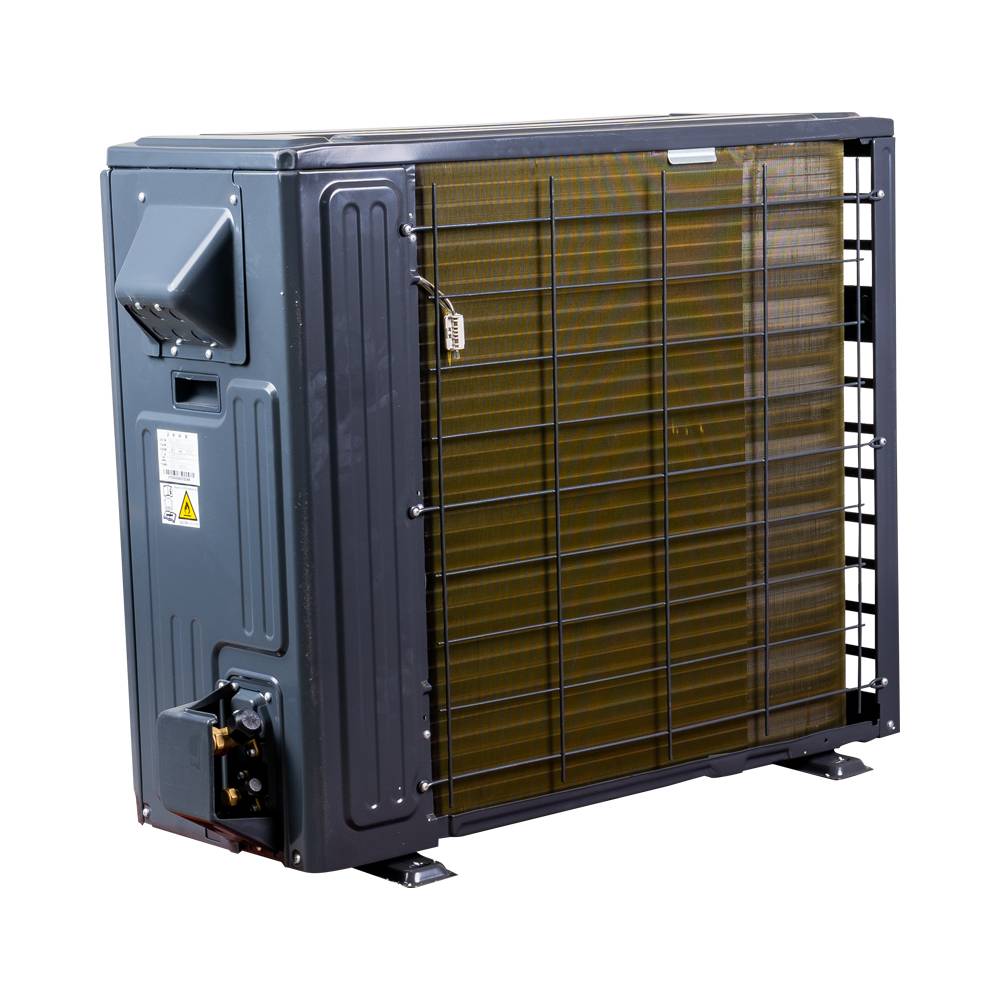

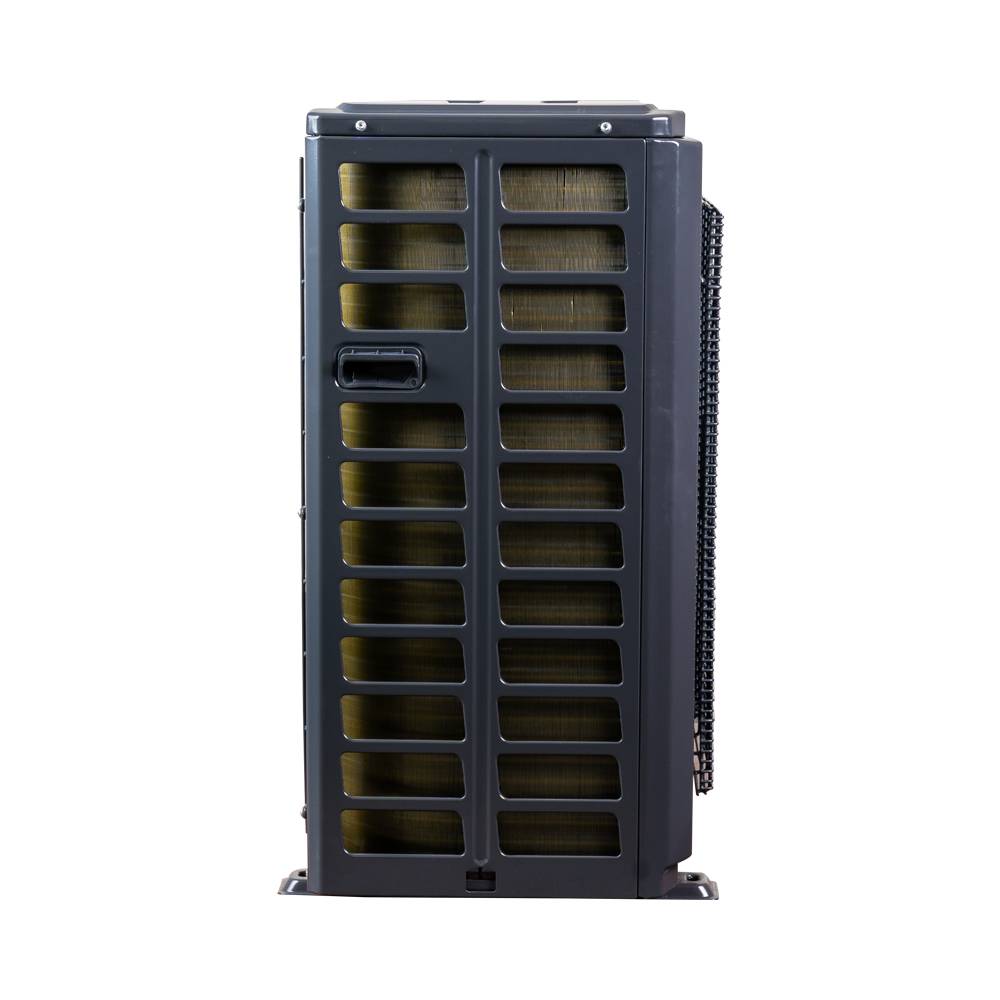

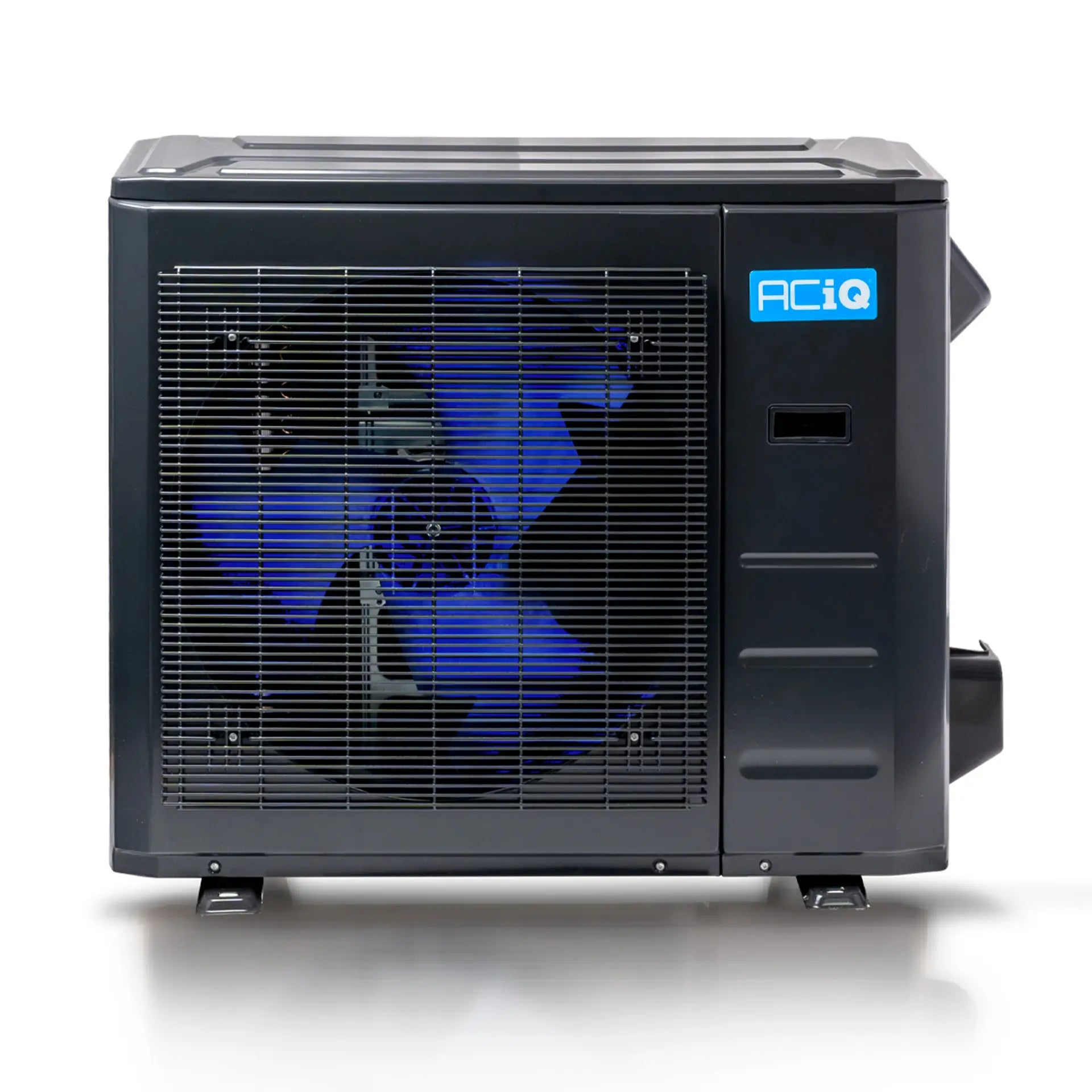

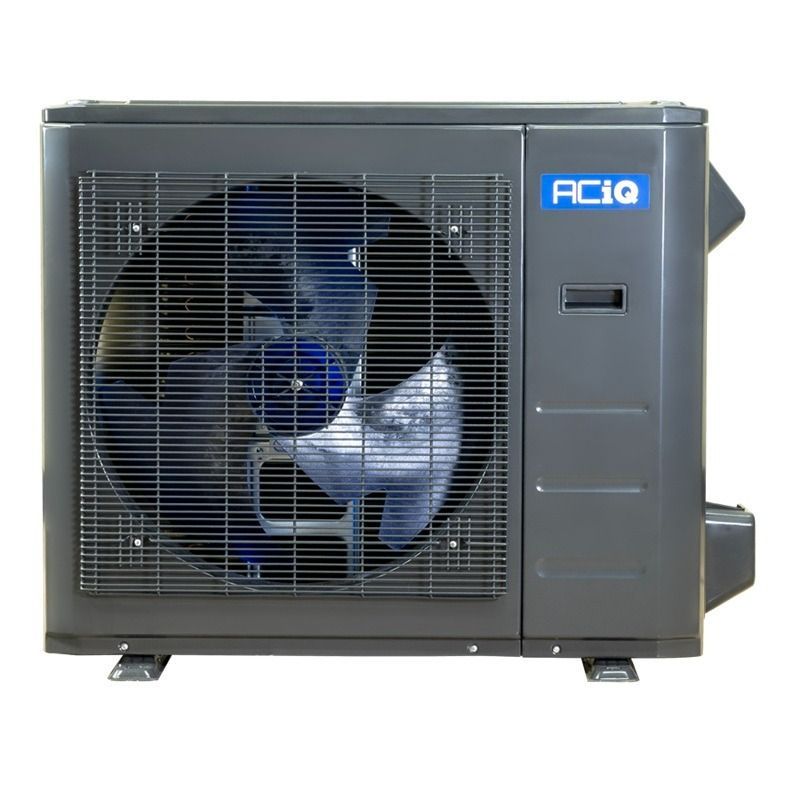

Aciq Aciq-30-AC-B High Efficiency Air Conditioner 30,000 BTU (2.5 Ton) Aciq-36-ACL-17-B

Product Description

Aciq ACIQ-30-AC-B is a 2.5 ton high-efficiency air conditioner condenser providing 30,000 BTU cooling capacity and 15.2 SEER efficiency. It uses R454B refrigerant, a rotary compressor, and 208-230 V single-phase electrical input, and operates across an outdoor range of -13 to 122 F. The unit includes Gold Fin coil coating, leak detection, quiet 58 dB(A) operation.

• 30,000 BTU cooling capacity, 2.5 ton rating, 15.2 SEER efficiency
• Rotary compressor, R454B refrigerant, 208-230 V 1 phase 60 Hz electrical
• Gold Fin coil coating, leak detection, quiet operation at 58 dB(A)

Product Highlights

2.5 ton condenser, 30,000 BTU, 15.2 SEER, R454B, 208-230 V, 58 dB(A)

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-30-AC-B / ACIQ-36-ACL-17-B

Technical Specifications

• Brand: ACIQ
• Model: ACIQ-30-AC-B
• Tonnage: 2.5 Ton
• Cooling Capacity: 30,000 BTU
• SEER Rating: 15.2 SEER
• Compressor Type: Rotary
• Refrigerant: R454B
• Input Voltage: 208-230 V, 1 Phase, 60 Hz
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Sound Level: 58 dB(A)
• Operating Temperature Range: -13 to 122 F
• Dimensions (W x D x H): 35.04" x 13.46" x 26.50"
• Weight: 98.33 lbs
• Maximum Air Flow: 1825 CFM
• Maximum Breaker Size: 20 Amps
• Product Type: Air conditioner condenser
