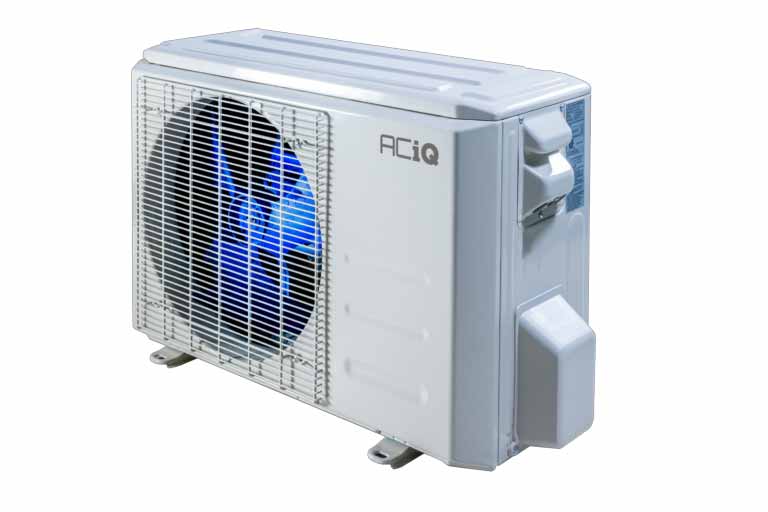

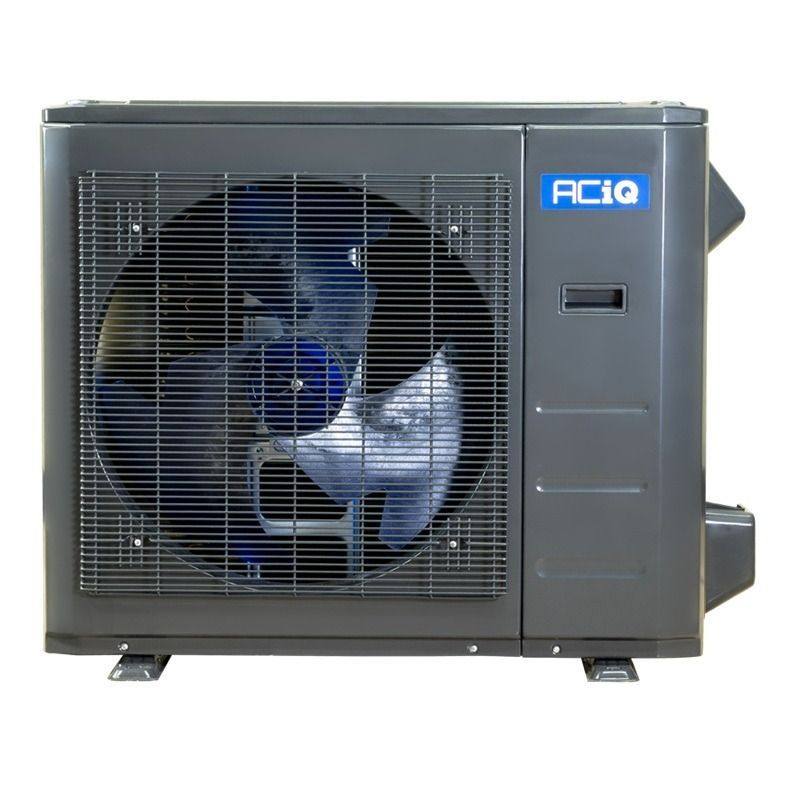

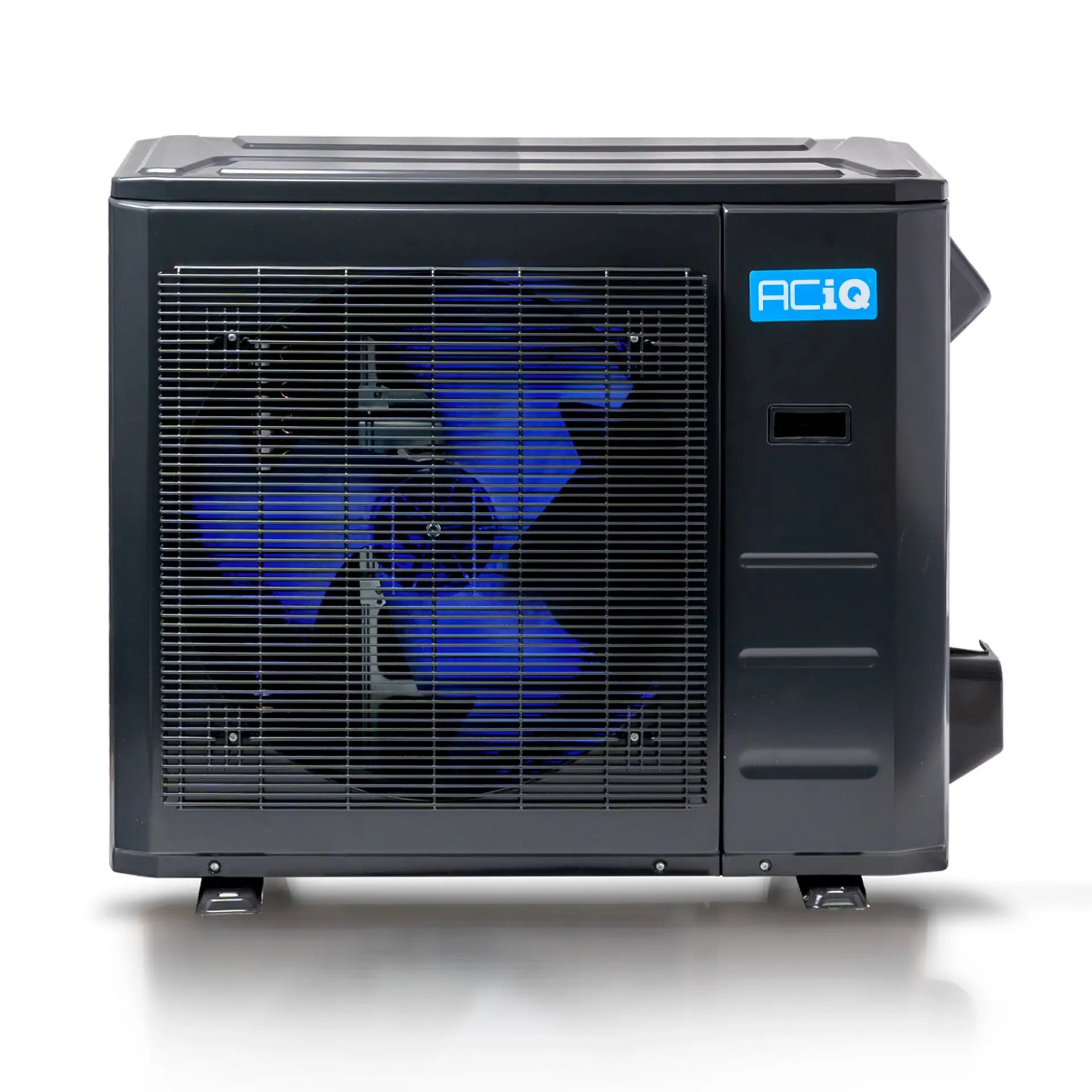

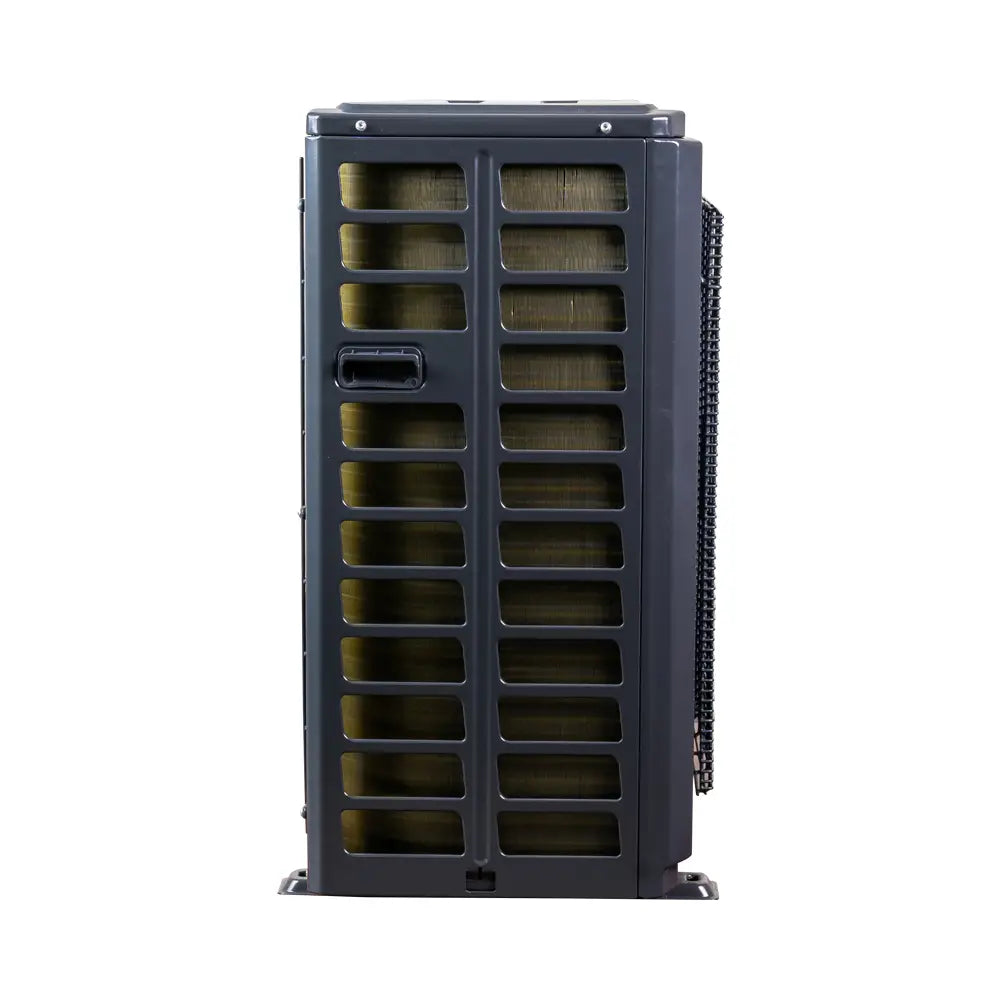

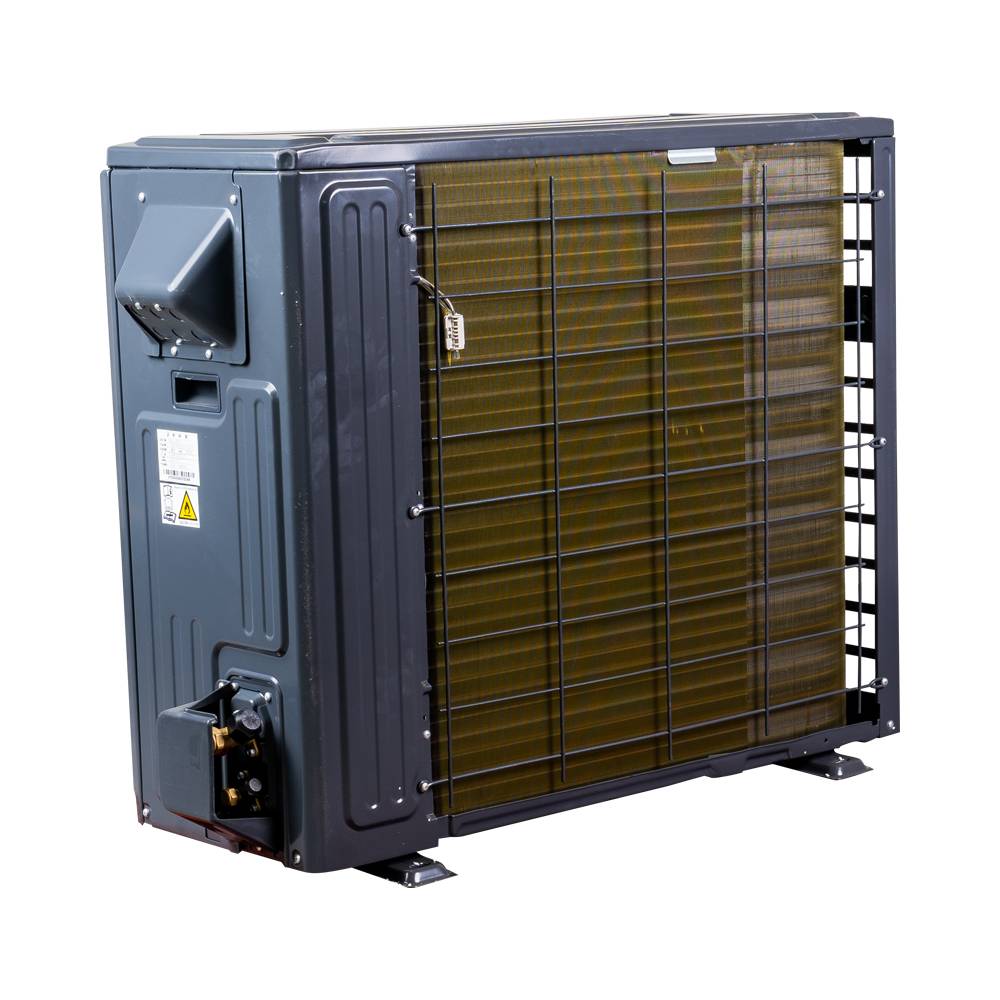

Aciq Aciq-30-AC-B air conditioner condenser 30,000 BTU (2.5 Ton) Aciq-30-AC-B

Product Description

ACiQ ACIQ-30-AC-B is a 2.5 ton (30,000 BTU) high-efficiency air conditioner condenser that uses R454B refrigerant and delivers 15.2 SEER performance. The unit features a rotary inverter-capable compressor for modulating output between 12,000 and 30,000 BTU, operates on 208-230 V single-phase power, and includes gold fin coil protection, leak detection, and a sound level of 58 dB(A).

• Variable inverter rotary compressor allowing modulating capacity from 12,000 to 30,000 BTU
• 15.2 SEER efficiency, pre-charged for R454B refrigerant, and 58 dB(A) sound level
• 208-230 V single-phase electrical, liquid line 3/8", suction line 3/4", dimensions 35.04" x 13.46" x 26.50"

Product Highlights

High-efficiency 2.5 ton condenser with inverter modulation, gold fin coil, leak detection.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-30-AC-B

Technical Specifications

• Brand: ACiQ
• MPN: ACIQ-30-AC-B
• Model: ACiQ-30-AC-B
• Tonnage: 2.5 Ton
• Cooling Capacity: 30,000 BTU
• Modulating Capacity Range: 12,000 to 30,000 BTU
• SEER2: 15.2
• EER2: 10.2
• Refrigerant: R454B
• Compressor Type: Rotary (variable inverter twin rotary)
• Condenser Stages: Variable speed
• Maximum Airflow: 1825 CFM
• Sound Level: 58 dB(A)
• Input Voltage: 208-230 V AC, 1 Phase, 60 Hz
• Phase: Single Phase
• Max Breaker Size: 20 Amps
• Min Breaker Size: 20 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Operating Temperature Range: -13 to 122 F
• Operating Mode: Cooling
• Dimensions (W x D x H): 35.04" x 13.46" x 26.50"
• Features: Gold fin coil coating; Leak detection; Self-cleaning condenser fan reversal
