Aciq Aciq-24ZS-HP230C / Aciq-24WS-HP230C 24,000 BTU Single Zone Wall Mount Mini Split Heat Pump System 230V

Product Description

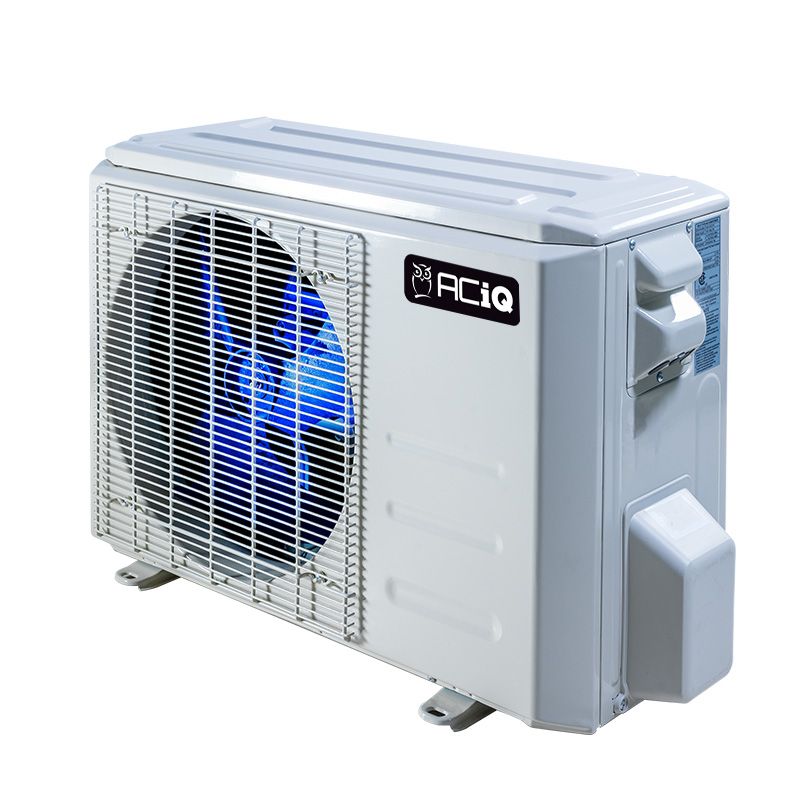

The ACIQ ACIQ-24ZS-HP230C / ACIQ-24WS-HP230C mini split systems provide intelligent technology and comfort at a reasonable cost. The single zone systems are suitable for a basement, garage conversion, or any single space. The ACIQ-24ZS-HP230C heat pump condenser features inverter technology for adaptive performance using minimal power without sacrificing comfort.

• 24,000 BTU for up to 1,500 Sq Ft

• 23+ SEER2 Performance for Smarter Savings

• Balanced Airflow Throughout the Room

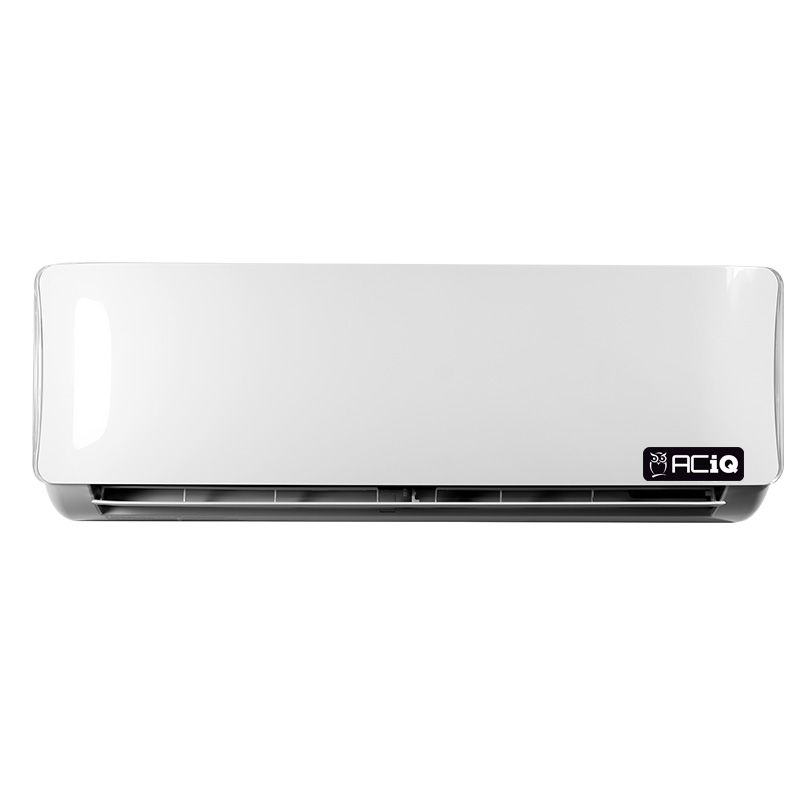

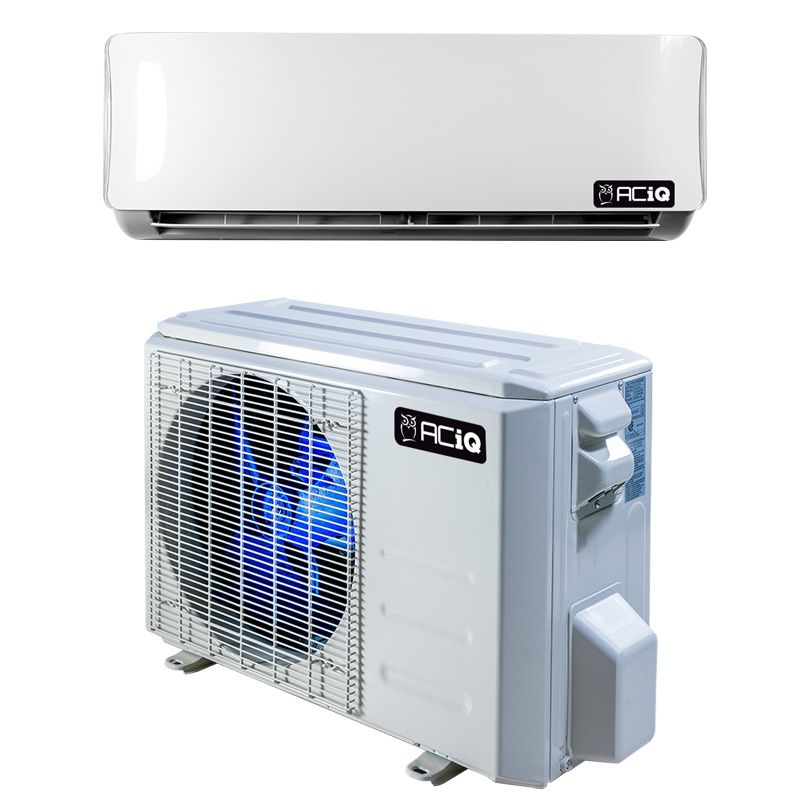

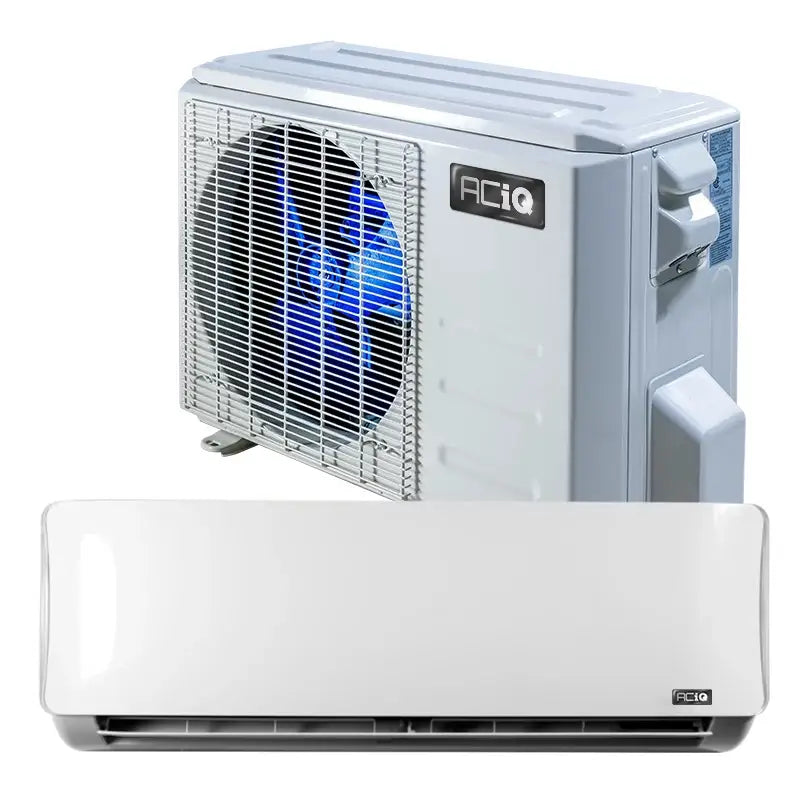

• Includes both indoor and outdoor units

Product Highlights

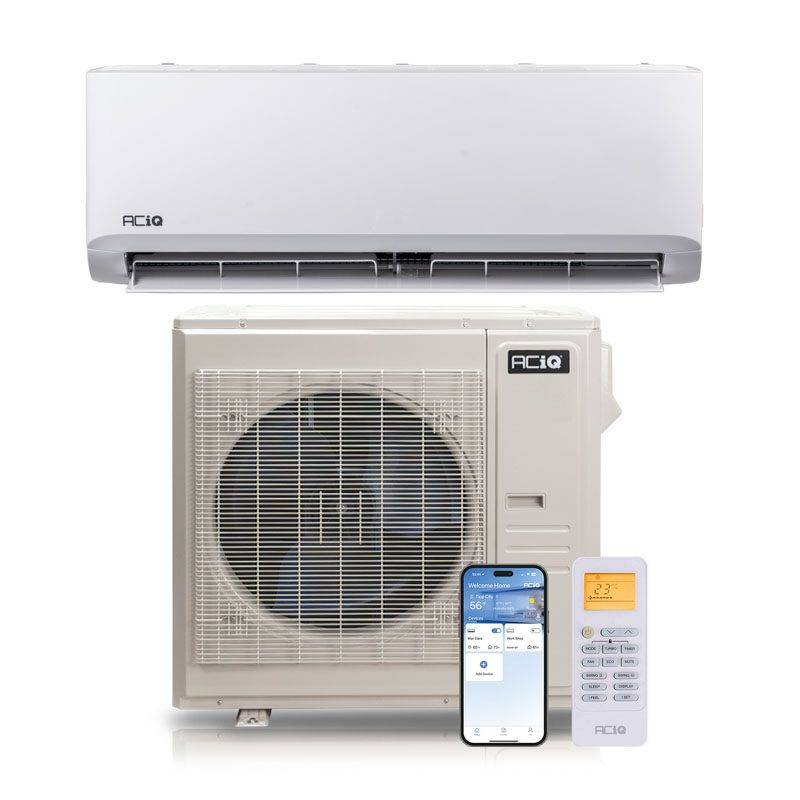

This mini split system is designed for intelligent comfort and superior performance. It is ideal for bonus rooms and offers WiFi app control.

Product Information

Standard Information

• Brand: ACIQ

• Manufacturer Part Number: ACIQ-24ZS-HP230C / ACIQ-24WS-HP230C

Technical Specifications

• SKU: ACIQ-24ZS-HP230C

• Refrigerant Charge: 70.55 oz.

• AHRI Certificate Number: 216980870

• Brand/Manufacturer: ACiQ

• Cooling BTU: 24,000 BTU

• Heating BTU: 25,000 BTU

• Decibel Level (dBA): 60

• Electric Heat: Heat Pump

• Energy Star: Yes

• Refrigerant: R454B

• HSPF2: 10.0

• SEER2 (Efficiency): 23.5

• Compressor Type: Rotary

• Liquid Line: 3/8"

• Suction Line: 5/8"

• Electrical: 208/230V, 1 Phase, 60 Hz

• Phase: Single Phase

• Max Breaker Size: 25 Amps

• Min. Breaker Size: 24 Amps

• Tonnage: 2 Ton

• BTU/Tonnage: 24,000 BTU/2 Ton

• Mini Split Type: Wall Mounted

• Zone Compatibility: Single Zone

• Height: 31.89"

• Width: 37.24"

• Depth: 16.14"

• Max CFM: 2235.3

• Dimensions outdoor (WxDxH) in: 37.24 x 16.14 x 31.89

• Dimensions indoor (WxDxH) in: 42.6 x 9.21 x 13.27

• Voltage: 208-230V

• AC Type: Wall Mount

• For: Wall Mount
